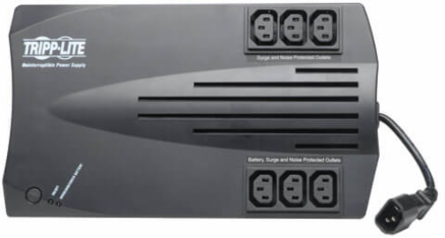

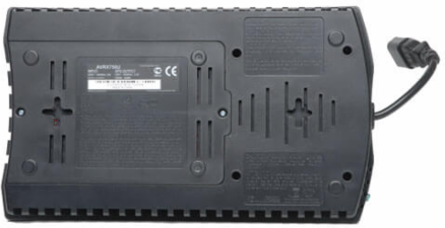

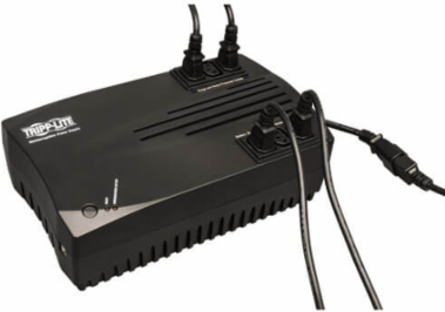

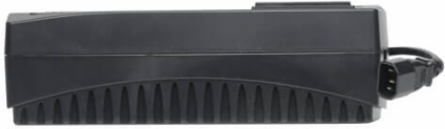

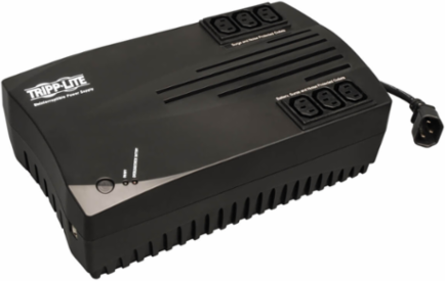

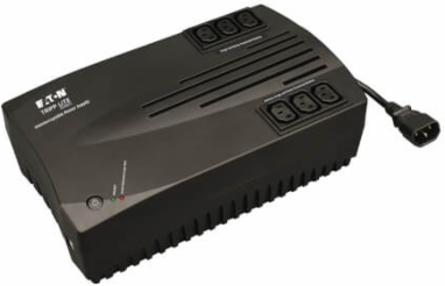

Tripp Lite AVRX750U AVR Series 230V 750VA 450W Ultra-Compact Line-Interactive UPS with USB port, C13 Outlets
Tripp Lite AVRX750U AVR Series 230V 750VA 450W Ultra-Compact Line-Interactive UPS with USB port, C13 Outlets
- MPN: AVRX750U
- UPC: 037332123138
- PPN: TRP-AVRX750U
Spec sheet
Available to Order
Company Stock:
0
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$459.72/ EA
Description
AVR Series 230V 750VA 450W Ultra-Compact Line-Interactive UPS with USB port, C13 Outlets
Features
- 750VA ultra-compact 230V line interactive UPS
- Corrects brownouts and overvoltages from 159V to 282V
- 3 UPS battery supported outlets, 3 surge-only outlets
- USB port, TEL/DSL protection, Wall mountable
- C14 inlet and 6 C13 outlets
- 2-year limited warranty
Specifications
Surge / Noise Suppression
- UPS AC Suppression Joule Rating
- 320
- UPS Dataline Suppression

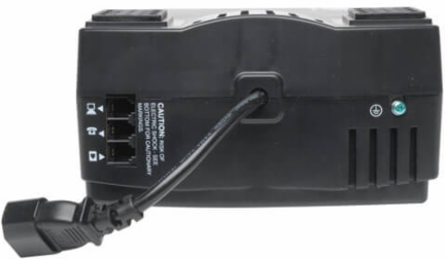

- 1 line TEL/DSL (1 in / 1 out)
UPS AC Suppression Response TimeInstantaneous
EMI / RFI AC Noise SuppressionYes
Battery
- Full Load Runtime (min.)
- 2.4 min. (450w)
- DC System Voltage (VDC)
- 12
- Battery Access
- Battery access door
- Expandable Runtime
- No
Half Load Runtime (min.)8.6 min. (225w)
Internal UPS Replacement Battery CartridgeRBC51
Battery Replacement DescriptionHot-swappable, user replaceable batteries
Certifications
- UPS Certifications
- CE; Tested to GOST (Russia); Tested to SASO (Saudi Arabia); Meets FCC Part 15 Category B (EMI)
Physical
- Installation Form Factors Supported with Included Accessories
- Tower; Ultra-compact desktop; Wallmount
- Primary UPS Depth (mm)
- 178
- Primary UPS Width (mm)
- 305
- Shipping Weight (lbs.)
- 14.89
- UPS Power Module Dimensions (hwd, in.)
- 4 x 12 x 7
- UPS Power Module Weight (lbs.)
- 14.3
Primary Form FactorDesktop
Primary UPS Height (mm)102
Shipping Dimensions (hwd / in.)5.40 x 9.80 x 14.50
UPS Housing MaterialABS
UPS Power Module Weight (kg)6.49
User Interface, Alerts & Controls
- Switches
- Combination switch controls on/off power status and self-test operation
- LED Indicators
- 2 LEDs indicate power status and overload/check battery status
Audible AlarmAudible alarm indicates power-failure and overload status
Voltage Regulation
- Voltage Regulation Description
- Automatic voltage regulation (AVR) maintains line power operation with an input voltage range of 159 to 282VAC
- Undervoltage Correction
- Input voltages between 159 and 205 are boosted by 14%
Overvoltage CorrectionInput voltages between 245 and 282 are reduced by 12%
Input
- Rated input current (Maximum Load)
- 10A
- UPS Input Connection Type
- C14 inlet
- UPS Input Cord Length (ft.)
- 0.5
Nominal Input Voltage(s) Supported230V AC
UPS Input Connection DescriptionAttached 15cm line cord with C14 inlet. The C14 inlet accepts user-supplied AC power cord with country specific plug.
Input PhaseSingle-Phase
Output
- Output Volt Amp Capacity (VA)
- 750
- Nominal Voltage Details
- 230V nominal output in battery mode
- Frequency Compatibility Details
- Automatic frequency selection
- Output Voltage Regulation (Battery Mode)
- +/- 5%
- UPS Output Receptacles (Surge Suppression Only)
- 3 UPS outlets, 3 surge-only outlets
- Output AC Waveform (AC Mode)
- Sine wave
- Nominal Output Voltage(s) Supported
- 220V; 230V; 240V
- Individually Controllable Load Banks
- No
Output Watt Capacity (Watts)450
Frequency Compatibility50 / 60 Hz
Output Voltage Regulation (Line Mode)+8%, -21%

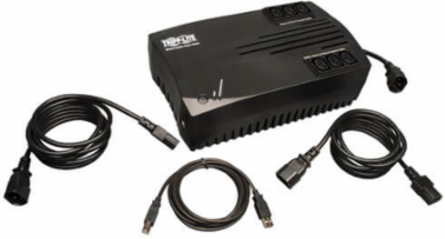

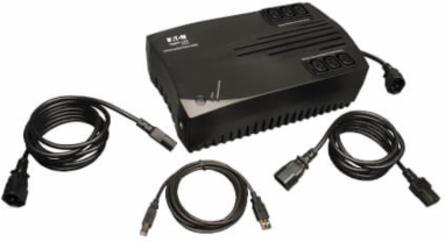

Included Output Power CablesIncludes 2 C13 to C14 output power cables
Hot-Swap PDU optionsPDUBHV10 (2U / 8 C13 outlets)
Output AC Waveform (Battery Mode)PWM sine wave
Output Receptacles(6) C13
Communications
- PowerAlert Software
- For local monitoring via the UPS’s built-in communication ports, download PowerAlert Local software at http://www.tripplite.com/poweralert
- WatchDog Compatibility
- Supports Watchdog application, OS and hard-reboot restart options for remote applications
- Communications Interface

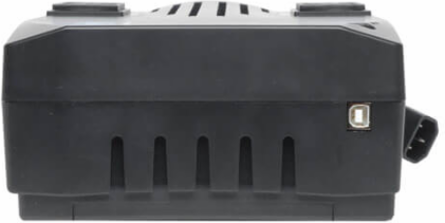

- USB (HID enabled)
Communications CableUSB interface cable included
Network UPS Tools CompatibilityNUT compatible. See the full list of Tripp Lite NUT compatible UPS systems at http://www.networkupstools.org/stable-hcl.html?manufacturer=Tripp Lite
Environmental
- Operating Temperature Range
- +32 to +104 degrees Fahrenheit / 0 to +40 degrees Celsius
- Relative Humidity
- 0 to 95%, non-condensing
- Battery Mode BTU / Hr. (Full Load)
- 459
Storage Temperature Range+5 to +122 degrees Fahrenheit / -15 to +50 degrees Celsius
AC Mode BTU / Hr. (Full Load)20
AC Mode Efficiency Rating (100% Load)98%
Overview
- UPC Code
- 037332123138
UPS TypeLine-Interactive
Special Features
- Cold Start (Startup in Battery Mode During a Power Failure)
- Cold-start operation supported
- Green Energy-Saving Features
- Greater than 95% efficiency - GREEN UPS
High Availability UPS FeaturesHot swappable batteries
Warranty
- Product Warranty Period (International)
- 2-year limited warranty
Line / Battery Transfer
- Transfer Time
- 2-4 milliseconds
- High Voltage Transfer to Battery Power (Setpoint)
- 282
Low Voltage Transfer to Battery Power (Setpoint)159
