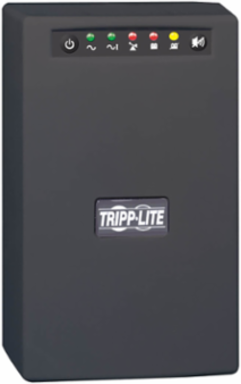

Tripp Lite OMNIVSINT1500XL OmniVS 230V 1500VA 940W Line-Interactive UPS, Extended Run, Tower, USB port, C13 Outlets

OmniVS 230V 1500VA 940W Line-Interactive UPS, Extended Run, Tower, USB port, C13 Outlets - https://media.province-electric.com/tripplite/2020q1/17d559a39f8ea8f73516749360cd164f2b821147-medium.png

OmniVS 230V 1500VA 940W Line-Interactive UPS, Extended Run, Tower, USB port, C13 Outlets

MPN: OMNIVSINT1500XL
UPC: 037332119780
PPN: TRP-OMNIVSINT1500XL

Spec sheet

Available to Order

Company Stock:

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$843.33/ EA

Qty:

Loading add to cart quantity...

Description

OmniVS 230V 1500VA 940W Line-Interactive UPS, Extended Run, Tower, USB port, C13 Outlets

Features

1500VA / 1.5kVA tower 230V line interactive extended-run UPS
Corrects brownouts and overvoltages from 151 to 282V
USB port, TEL/DSL/ethernet protection, External battery pack options

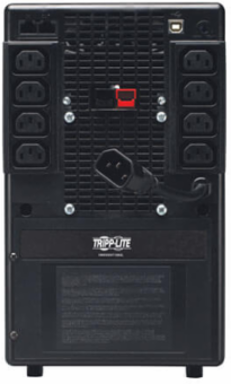

C14 input and 8 C13 outlets
2-year limited warranty

Specifications

Surge / Noise Suppression

UPS AC Suppression Joule Rating: 340

UPS Dataline Suppression: 1 line TEL/DSL (1 in / 1 out); 10/100Base T Ethernet

UPS AC Suppression Response TimeInstantaneous

EMI / RFI AC Noise SuppressionYes

Battery

Full Load Runtime (min.): 4.5 min. (940w)

Expandable Battery Runtime: Extended runtime supported via optional external battery packs

DC System Voltage (VDC): 24

Internal UPS Replacement Battery Cartridge: RBC51 (quantity 2)

Battery Replacement Description: Hot-swappable, user replaceable batteries

Half Load Runtime (min.)13 min. (470w)

External Battery Pack CompatibilityBP24V15RT2U (limit 1); BP24V28-2U (limit 1); BP24V70-3U (multi-pack compatible)

Battery Recharge Rate (Included Batteries)Less than 4.5 hours from 10% to 90%

Battery AccessBattery access door

Expandable RuntimeYes

Certifications

UPS Certifications: Tested to UL1778 (USA); CE; Tested to GOST (Russia); Tested to SASO (Saudi Arabia); Tested to IRAM (Argentina)

UPS Certification DetailsCE 62040

Physical

Installation Form Factors Supported with Included Accessories: Tower

Primary Form Factor: Tower

Primary UPS Height (mm): 300

Shipping Dimensions (hwd / in.): 15.60 x 10.40 x 10.80

UPS Housing Material: Polycarbonate

UPS Power Module Weight (kg): 14.51

Installation Form Factors Supported with Optional AccessoriesWallmount (UPSWM - tower mounting kit)

Primary UPS Depth (mm)191

Primary UPS Width (mm)183

Shipping Weight (lbs.)32.50

UPS Power Module Dimensions (hwd, in.)11.8 x 7.2 x 7.5

UPS Power Module Weight (lbs.)32

User Interface, Alerts & Controls

Switches: 2 Switches control off/on power status and alarm-cancel/self-test operation

Audible Alarm: Audible alarm indicates power-failure and low-battery conditions

Alarm Cancel OperationPower-fail alarm can be silenced using alarm-cancel switch; once silenced, alarm will re-sound to indicate low-battery status

LED Indicators5 LEDs indicate line power, battery power, overload, voltage regulation and battery low/replace status

Voltage Regulation

Voltage Regulation Description: Automatic voltage regulation (AVR) maintains line power operation with an input voltage range of 151 to 282

Undervoltage Correction: Input voltages between 177 and 199 are boosted by 14%

Overvoltage CorrectionInput voltages between 245 and 282 are reduced by 12%

Severe Undervoltage CorrectionInput voltages between 151 and 176 are boosted by 30%

Input

Rated input current (Maximum Load): 5A

UPS Input Connection Type: C14 inlet

UPS Input Cord Length (ft.): 0.5

Nominal Input Voltage(s) Supported230V AC

UPS Input Connection DescriptionAttached 15cm line cord with C14 inlet. The C14 inlet accepts user-supplied AC power cord with country-specific plug.

Input PhaseSingle-Phase

Output

Output Volt Amp Capacity (VA): 1500

Output Watt Capacity (Watts): 940

Frequency Compatibility: 50 / 60 Hz

Output Voltage Regulation (Line Mode): -18%, +8%

Included Output Power Cables: Includes 2 C13 to C14 output power cables

Output AC Waveform (AC Mode): Sine wave

Nominal Output Voltage(s) Supported: 220V; 230V; 240V

Individually Controllable Load Banks: No

Output kVA Capacity (kVA)1.5

Nominal Voltage Details230V nominal output in battery mode

Frequency Compatibility DetailsAutomatic frequency selection

Output Voltage Regulation (Battery Mode)+/- 5%

Hot-Swap PDU optionsPDUBHV10 (2U / 8 C13 outlets)

Output AC Waveform (Battery Mode)PWM sine wave

Output Receptacles(8) C13

Communications

PowerAlert Software: For local monitoring via the UPS’s built-in USB port, download PowerAlert Local software at http://www.tripplite.com/poweralert

WatchDog Compatibility: Supports Watchdog application, OS and hard-reboot restart options for remote applications

Communications CableUSB interface cable included

Communications InterfaceUSB

Environmental

Operating Temperature Range: +32 to +104 degrees Fahrenheit / 0 to +40 degrees Celsius

Relative Humidity: 0 to 95%, non-condensing

Battery Mode BTU / Hr. (Full Load): 657

Storage Temperature Range+5 to +122 degrees Fahrenheit / -15 to +50 degrees Celsius

AC Mode BTU / Hr. (Full Load)99

AC Mode Efficiency Rating (100% Load)97%

Overview

UPC Code: 037332119780

UPS TypeLine-Interactive

Special Features

Cold Start (Startup in Battery Mode During a Power Failure): Cold-start operation supported

Green Energy-Saving Features: Greater than 95% efficiency - GREEN UPS

High Availability UPS FeaturesHot swappable batteries

Warranty

Product Warranty Period (International): 2-year limited warranty

Line / Battery Transfer

Transfer Time: 2-4 milliseconds

High Voltage Transfer to Battery Power (Setpoint): 282

Low Voltage Transfer to Battery Power (Setpoint)151
