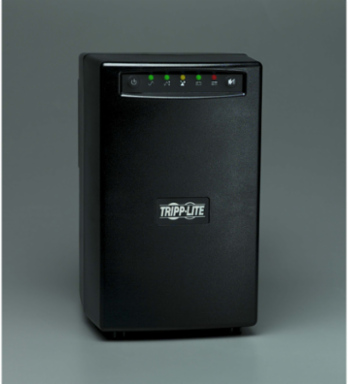

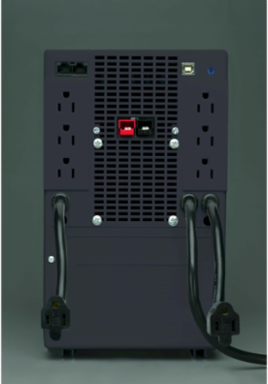

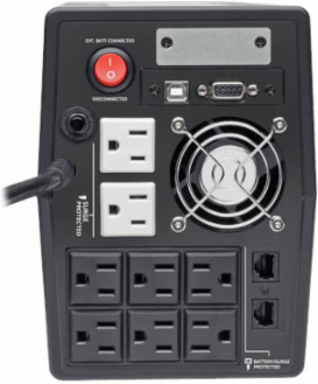

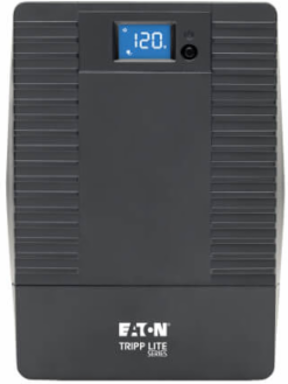

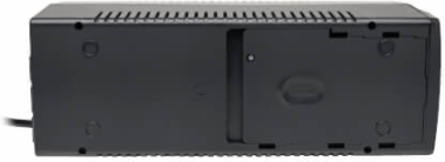

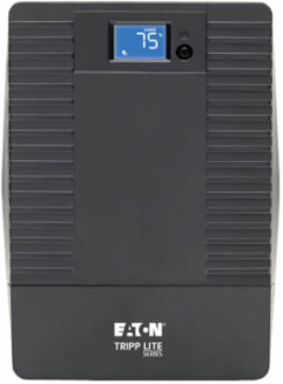

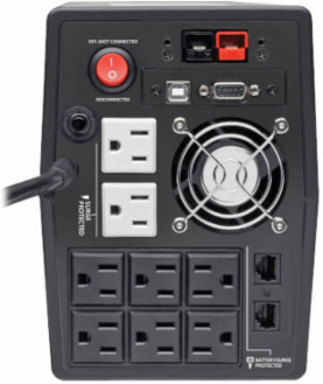

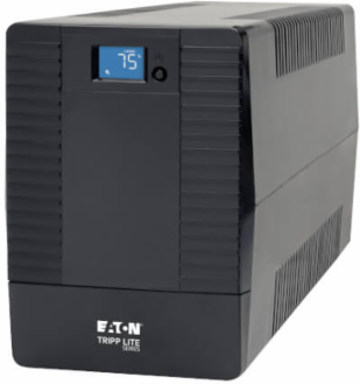

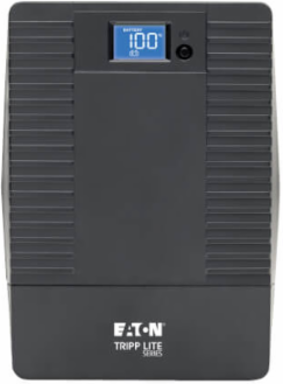

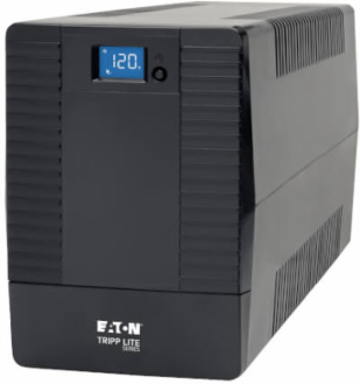

Tripp Lite OMNIVS1500XL OmniVS 120V 1500VA 940W Line-Interactive UPS, Extended Run, Tower, USB port
Tripp Lite OMNIVS1500XL OmniVS 120V 1500VA 940W Line-Interactive UPS, Extended Run, Tower, USB port
- MPN: OMNIVS1500XL
- UPC: 037332119735
- PPN: TRP-OMNIVS1500XL
Spec sheet
Available to Order
Company Stock:
0
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$729.82/ EA
Description
OmniVS 120V 1500VA 940W Line-Interactive UPS, Extended Run, Tower, USB port
Features
- 1500VA / 1.5kVA tower 120V line interactive extended-run UPS
- Corrects brownouts and overvoltages from 75 to 147V
- 6 UPS battery supported outlets, 2 surge-only outlets
- USB port, TEL/DSL/ethernet protection, External battery pack options
- NEMA 5-15P input plug and 8 NEMA 5-15R outlets
- 3-year limited warranty
- $200,000 Ultimate Lifetime Insurance
Specifications
Surge / Noise Suppression
- UPS AC Suppression Joule Rating
- 690
- UPS Dataline Suppression
- 1 line TEL/DSL (1 in / 1 out); 10/100Base T Ethernet
UPS AC Suppression Response TimeInstantaneous
EMI / RFI AC Noise SuppressionYes
Battery
- Full Load Runtime (min.)
- 4 min. (940w)
- Expandable Battery Runtime
- Extended runtime supported via optional external battery packs
- DC System Voltage (VDC)
- 24
- Internal UPS Replacement Battery Cartridge
- RBC24-SLT
- Battery Replacement Description
- Hot-swappable, user replaceable batteries
Half Load Runtime (min.)11.4 min. (470w)
External Battery Pack CompatibilityBP24V15RT2U (limit 1); BP24V28-2U (limit 1); BP24V70-3U (multi-pack compatible)
Battery Recharge Rate (Included Batteries)Less than 4.5 hours from 10% to 90%
Battery AccessBattery access door
Expandable RuntimeYes
Certifications
- UPS Certifications
- Tested to UL1778 (USA); Tested to CSA (Canada); Tested to NOM (Mexico); Meets FCC Part 15 Category B (EMI)
Physical
- Cooling Method
- Fan
- Installation Form Factors Supported with Optional Accessories
- Wallmount (UPSWM - tower mounting kit)
- Primary UPS Depth (mm)
- 191
- Primary UPS Width (mm)
- 183
- Shipping Weight (lbs.)
- 30.70
- UPS Power Module Dimensions (hwd, in.)
- 11.8 x 7.2 x 7.5
- UPS Power Module Weight (lbs.)
- 28
Installation Form Factors Supported with Included AccessoriesTower
Primary Form FactorTower
Primary UPS Height (mm)300
Shipping Dimensions (hwd / in.)15.50 x 10.70 x 10.60
UPS Housing MaterialPolycarbonate
UPS Power Module Weight (kg)12.70
User Interface, Alerts & Controls
- Switches
- 2 Switches control off/on power status and alarm-cancel/self-test operation
- Audible Alarm
- Audible alarm indicates power-failure and low-battery conditions
Alarm Cancel OperationPower-fail alarm can be silenced using alarm-cancel switch; once silenced, alarm will re-sound to indicate low-battery status
LED Indicators5 LEDs indicate line power, battery power, overload, voltage regulation and battery low/replace status
Voltage Regulation
- Voltage Regulation Description
- Automatic voltage regulation (AVR) maintains line power operation with an input voltage range of 75 to 147
- Undervoltage Correction
- Input voltages between 93 and 107 are boosted by 14%
Overvoltage CorrectionInput voltages between 128 and 147 are reduced by 12%
Severe Undervoltage CorrectionInput voltages between 75 and 92 are boosted by 30%
Input
- Rated input current (Maximum Load)
- 12A
- UPS Input Connection Type
- 5-15P
- Recommended Electrical Service
- 15A 120V
Nominal Input Voltage(s) Supported120V AC
UPS Input Cord Length (ft.)6
Input PhaseSingle-Phase
Output
- Output Volt Amp Capacity (VA)
- 1500
- Output Watt Capacity (Watts)
- 940
- Frequency Compatibility
- 60 Hz
- Output Voltage Regulation (Battery Mode)
- +/- 5%
- Hot-Swap PDU options
- PDUB15 (2U / 8 5-15R outlets)
- Output AC Waveform (Battery Mode)
- PWM sine wave
- Nominal Output Voltage(s) Supported
- 110V; 115V; 120V
- Individually Controllable Load Banks
- No
Output kVA Capacity (kVA)1.5
Nominal Voltage Details115v nominal output in battery mode
Output Voltage Regulation (Line Mode)-18%, +8%
UPS Output Receptacles (Surge Suppression Only)6 UPS outlets, 2 surge-only outlets
Output AC Waveform (AC Mode)Sine wave
Output Capacity Details940W watts maximum when used with internal batteries or 1 BP24V15RT2U battery pack; Output is reduced to 600W maximum in all other external battery pack configurations
Output Receptacles(8) 5-15R
Communications
- PowerAlert Software
- For local monitoring via the UPS’s built-in communication ports , download PowerAlert Local software at http://www.tripplite.com/poweralert
- WatchDog Compatibility
- Supports Watchdog application, OS and hard-reboot restart options for remote applications
Communications CableUSB cable included
Communications InterfaceUSB
Environmental
- Operating Temperature Range
- +32 to +104 degrees Fahrenheit / 0 to +40 degrees Celsius
- Relative Humidity
- 0 to 95%, non-condensing
- Battery Mode BTU / Hr. (Full Load)
- 480
Storage Temperature Range+5 to +122 degrees Fahrenheit / -15 to +50 degrees Celsius
AC Mode BTU / Hr. (Full Load)356
AC Mode Efficiency Rating (100% Load)90%
Overview
- UPC Code
- 037332119735
UPS TypeLine-Interactive
Special Features
- Cold Start (Startup in Battery Mode During a Power Failure)
- Cold-start operation supported
High Availability UPS FeaturesHot swappable batteries
Warranty
- Product Warranty Period (U.S. & Canada)
- 3-year limited warranty
Connected Equipment Insurance (U.S., Canada & Puerto Rico)$200,000 Ultimate Lifetime Insurance
Line / Battery Transfer
- Transfer Time
- 2-4 milliseconds
- High Voltage Transfer to Battery Power (Setpoint)
- 147
Low Voltage Transfer to Battery Power (Setpoint)75
