Tripp Lite SMART750RM1U SmartPro 120V 750VA 600W Line-Interactive Sine Wave UPS, 1U Rackmount, Network Management Card Options, USB, DB9 Serial
Tripp Lite SMART750RM1U SmartPro 120V 750VA 600W Line-Interactive Sine Wave UPS, 1U Rackmount, Network Management Card Options, USB, DB9 Serial
- MPN: SMART750RM1U
- UPC: 037332118813
- PPN: TRP-SMART750RM1U
Spec sheet
Available to Order
Company Stock:
0
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$1460.26/ EA
Description
SmartPro 120V 750VA 600W Line-Interactive Sine Wave UPS, 1U Rackmount, Network Management Card Options, USB, DB9 Serial
Features
- .75kVA / 750VA / 600W line interactive 1U rackmount UPS, Sine wave output
- 120V output, Corrects brownouts and overvoltages from 83V to 147V
- 0.8 Power Factor, Front panel status LEDs
- Mounting brackets support 2 and 4 post installation
- 98% line-mode efficiency, 2 switched load banks
- USB, RS232, EPO and slot for Network Management Card options
- 120V NEMA 5-15P input, 6 NEMA 5-15R outlets
- To use the Auto Probe feature, this product requires a WEBCARDLX network interface (sold separately) running LX firmware update 15.5.2 or later
- 2-year warranty, 3 year with registration. Note: Registration is required for 3-year warranty.
- $250,000 Ultimate Lifetime Insurance
Specifications
Surge / Noise Suppression
- UPS AC Suppression Joule Rating
- 450
- EMI / RFI AC Noise Suppression
- Yes
UPS AC Suppression Response TimeInstantaneous
Battery
- Full Load Runtime (min.)
- 4.9 min. (600w)
- DC System Voltage (VDC)
- 24
- Internal UPS Replacement Battery Cartridge
- RBC64-1U
- Battery Replacement Description
- Hot-swappable, user replaceable batteries
Half Load Runtime (min.)13.2 min. (300w)
Battery Recharge Rate (Included Batteries)Less than 4 hours from 10% to 90% (typical, full load discharge)
Battery AccessFront panel battery access door
Expandable RuntimeNo
Certifications
- UPS Certifications
- Tested to UL1778 (USA); Tested to CSA (Canada); Tested to NOM (Mexico); Meets FCC Part 15 Category A (EMI)
Physical
- Cooling Method
- Fan
- Installation Form Factors Supported with Included Accessories
- 2 post 19 inch rackmount; 4 post 19 inch rackmount
- Minimum Required Rack Depth (inches)
- 19.75
- Primary Form Factor
- Rackmount
- Primary UPS Height (mm)
- 44
- Rack Height
- 1U
- Shipping Weight (lbs.)
- 34.10
- UPS Power Module Dimensions (hwd, in.)
- 1.75 x 17.5 x 16.75
- UPS Power Module Weight (lbs.)
- 30
Included Mounting Accessory DescriptionIncluded mounting brackets provide front-rail installation in 2 or 4 post racks; For additional stability in 4 post racks, consider optional 4 post mounting accessories 4POSTRAILKIT1U & 4POSTRAILKITWM
Installation Form Factors Supported with Optional Accessories4 post rackmount full-depth ( 4POSTRAILKIT1U ); 4 post rackmount short-depth ( 4POSTRAILKITWM )
Optional Mounting Accessory NotesOptional 4POSTRAILKITWM enables installation in 4-port short-depth racks from 14.5 to 23.5 inches (368 to 597mm); Optional 4POSTRAILKIT1U enables installation in 4-post full-depth racks from 20.5 to 36 inches (521 to 914mm)
Primary UPS Depth (mm)425
Primary UPS Width (mm)445
Shipping Dimensions (hwd / in.)5.20 x 23.10 x 20.70
UPS Housing MaterialSteel
UPS Power Module Weight (kg)13.61
User Interface, Alerts & Controls
- Switches
- 2 Switches control off/on power status and alarm-cancel/self-test operation
- Audible Alarm
- Audible alarm indicates power-failure, overload and low-battery conditions
Alarm Cancel OperationPower-fail alarm can be silenced using alarm-cancel switch; once silenced, alarm will re-sound to indicate low-battery status

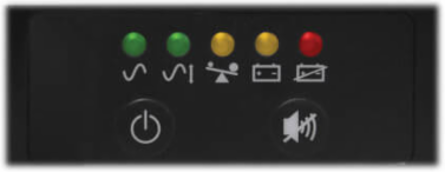

LED Indicators5 LEDs indicate line power, battery power, overload, voltage regulation and battery low/replace status
Voltage Regulation
- Voltage Regulation Description
- Automatic voltage regulation (AVR) maintains line power operation with an input voltage range of 83 to 147
- Undervoltage Correction
- Input voltages between 83 and 107 are boosted by 14%
Overvoltage CorrectionInput voltages between 128 and 147 are reduced by 12%
Input
- Rated input current (Maximum Load)
- 7A
- UPS Input Connection Type
- 5-15P
- Recommended Electrical Service
- 15A 120V
- Input Cord Length (ft.)
- 10
Nominal Input Voltage(s) Supported120V AC
Input Circuit Breakers15A
Input PhaseSingle-Phase
Output
- Output Volt Amp Capacity (VA)
- 750
- Power Factor
- 0.8
- Frequency Compatibility
- 60 Hz
- Output Voltage Regulation (Battery Mode)
- +/- 5%
- Output AC Waveform (AC Mode)
- Sine wave
- Nominal Output Voltage(s) Supported
- 110V; 115V; 120V
- Individually Controllable Load Banks
- Yes
Output Watt Capacity (Watts)600
Nominal Voltage Details120v nominal output in battery mode
Output Voltage Regulation (Line Mode)-21%, +8%
Load Management ReceptaclesTwo switchable single-outlet 5-15R load banks
Output AC Waveform (Battery Mode)Pure Sine wave

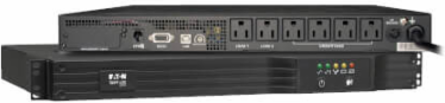

Output Receptacles(6) 5-15R
Communications
- Network Management Cards
- SNMPWEBCARD ; TLNETCARD ; WEBCARDLX
- PowerAlert Software
- For local monitoring via the UPS’s built-in communication ports, download PowerAlert Local software at http://www.tripplite.com/poweralert
- WatchDog Compatibility
- Supports Watchdog application, OS and hard-reboot restart options for remote applications
Network Monitoring Port DescriptionSupports detailed monitoring of UPS and site power conditions

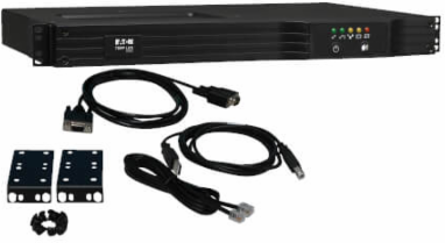

Communications CableUSB and DB9 cabling included
Communications InterfaceUSB; DB9 Serial; EPO (emergency power off); Slot for SNMP/Web interface
Environmental
- Operating Temperature Range
- +32 to +104 degrees Fahrenheit / 0 to +40 degrees Celsius
- Relative Humidity
- 0 to 95%, non-condensing
- Battery Mode BTU / Hr. (Full Load)
- 545
- Audible Noise
- 45 dBA maximum, front side 1m
Storage Temperature Range+5 to +122 degrees Fahrenheit / -15 to +50 degrees Celsius
AC Mode BTU / Hr. (Full Load)38
AC Mode Efficiency Rating (100% Load)98%
Overview
- UPC Code
- 037332118813
UPS TypeLine-Interactive
Special Features
- Grounding Lug
- Back panel grounding lug
- High Availability UPS Features
- Hot swappable batteries
Cold Start (Startup in Battery Mode During a Power Failure)Cold-start operation supported
Warranty
- Product Warranty Period (Worldwide)
- 2-year warranty, 3 year with registration. Note: Registration is required for 3-year warranty.
Connected Equipment Insurance (U.S., Canada & Puerto Rico)$250,000 Ultimate Lifetime Insurance
Line / Battery Transfer
- Transfer Time
- 5 milliseconds AC to DC; 1 millisecond DC to AC
- High Voltage Transfer to Battery Power (Setpoint)
- 147
Low Voltage Transfer to Battery Power (Setpoint)83
