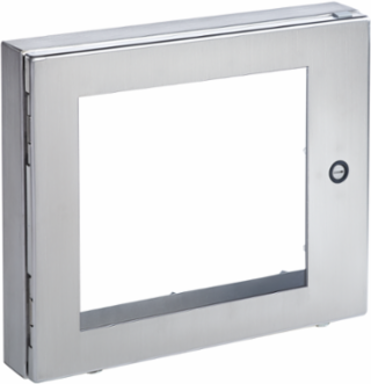

nVent Hoffman AWDH2430N4SS Deep-Hinged Window Kit Type 4X, 22.19x26.14 Inch, SS Type 316, IP66
- MPN: AWDH2430N4SS
- UPC: 783510130213
- PPN: HOF-AWDH2430N4SS
- UNSPSC: 39121321
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Deep Hinged Wdw Kit provide protection, visibility and easy access to display equipment. This Deep-Hinged Window Kit Type 4 and 4X, AWDH2430N4SS item measures 22.19x26.14 inches with a material of SS Type 316.
Features
- Quarter-turn latches for quick access
- 0.25-in. (6-mm) thick, clear polycarbonate windows for easy viewing
- 2.5-in. (64-mm) deep to allow for deep controls
- Built-in gasket compression stop on back of window kit facilitates flush mounting
- Designed for either left or right hinging
- Includes mounting template and mounting hardware
- Easy-to-remove clip-style hinge pin
- Optional Concept handles can be purchased separately to replace the standard quarter-turn latches
Documentation & Downloads
Specifications
Key Specifications
| BABA | Yes, BABA Compliant |
|---|---|
| Width (W) | 762 |
| Thickness (T) | 1.9 |
| IP Rating | IP66 |
| Weight | 23.6 |
| Material | 316L Stainless steel |
| Height (H) | 610 |
|---|---|
| Finish | Brushed #4 |
| Window Size (M x N) | 18.68 x 20.22 |
| NEMA Rating | 4 Watertight |
| Works With | NEMA & IEC |
| Size | 22.19 x 26.14 in |
