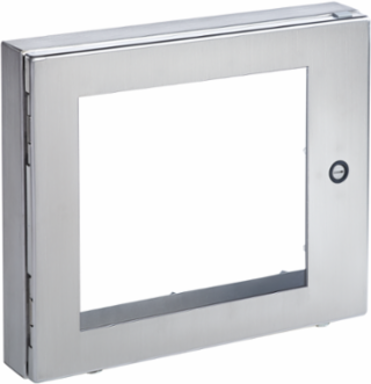

nVent Hoffman AWDH1418N4SS Deep-Hinged Window Kit, 12.19x14.56 Inch, SS Type 316, NEMA 4X, IP66
- MPN: AWDH1418N4SS
- UPC: 783510142384
- PPN: HOF-AWDH1418N4SS
- UNSPSC: 39121321
CAD
$3002.46
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
Deep Hinged Wdw Kit provide protection, visibility and easy access to display equipment. This Deep-Hinged Window Kit Type 4 and 4X, AWDH1418N4SS item measures 12.19x14.56 inches with a material of SS Type 316.
Features
- Quarter-turn latches for quick access
- 0.25-in. (6-mm) thick, clear polycarbonate windows for easy viewing
- 2.5-in. (64-mm) deep to allow for deep controls
- Built-in gasket compression stop on back of window kit facilitates flush mounting
- Designed for either left or right hinging
- Includes mounting template and mounting hardware
- Easy-to-remove clip-style hinge pin
- Optional Concept handles can be purchased separately to replace the standard quarter-turn latches
Documentation & Downloads
Specifications
Key Specifications
- BABA
- Yes, BABA Compliant
- Width (W)
- 457
- Thickness (T)
- 1.9
- IP Rating
- IP66
- Weight
- 10.9
- Material
- 316L Stainless steel
Height (H)356
FinishBrushed #4
Window Size (M x N)8.68 x 9.83
NEMA Rating4 Watertight
Works WithNEMA & IEC
Size12.19 x14.56 in
