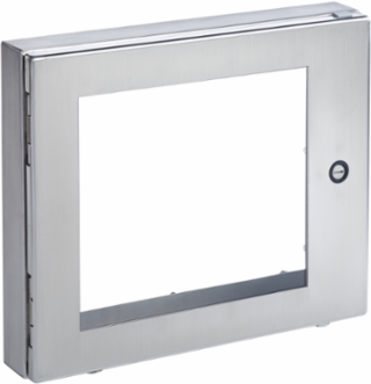

nVent Hoffman AWDH3024N4SS Deep-Hinged Window Kit 28.19 x 20.14 Inch, 316L Stainless Steel, NEMA 4X
- MPN: AWDH3024N4SS
- UPC: 783510130183
- PPN: HOF-AWDH3024N4SS
- UNSPSC: 39121321
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
Deep Hinged Wdw Kit provide protection, visibility and easy access to display equipment. This Deep-Hinged Window Kit Type 4 and 4X, AWDH3024N4SS item measures 28.19x20.14 inches with a material of SS Type 316.
Features
- Quarter-turn latches for quick access
- 0.25-in. (6-mm) thick, clear polycarbonate windows for easy viewing
- 2.5-in. (64-mm) deep to allow for deep controls
- Built-in gasket compression stop on back of window kit facilitates flush mounting
- Designed for either left or right hinging
- Includes mounting template and mounting hardware
- Easy-to-remove clip-style hinge pin
- Optional Concept handles can be purchased separately to replace the standard quarter-turn latches
Documentation & Downloads
Specifications
Key Specifications
- BABA
- Yes, BABA Compliant
- Width (W)
- 609
- Thickness (T)
- 1.9
- IP Rating
- IP66
- Weight
- 24.3
- Material
- 316L Stainless steel
Height (H)762
FinishBrushed #4
Window Size (M x N)24.68 x 14.22
NEMA Rating4 Watertight
Works WithNEMA & IEC
Size28.19 x 20.14 in
