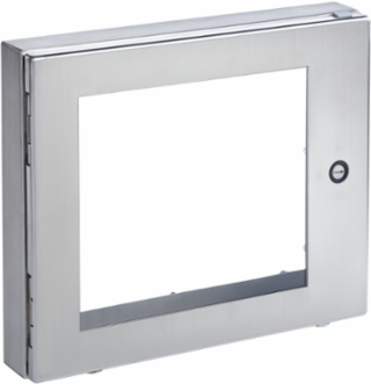

Nvent Hoffman AWDH2416N4SS Deep-Hinged Window Kit, 22.19 x 12.14 Inch, SS Type 316, NEMA 4 Watertight
Nvent Hoffman AWDH2416N4SS Deep-Hinged Window Kit, 22.19 x 12.14 Inch, SS Type 316, NEMA 4 Watertight
- MPN: AWDH2416N4SS
- UPC: 783510130169
- PPN: HOF-AWDH2416N4SS
- UNSPSC: 39121321
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$4215.08/ EA
Description
Deep Hinged Wdw Kit provide protection, visibility and easy access to display equipment. This Deep-Hinged Window Kit Type 4 and 4X, AWDH2416N4SS item measures 22.19x12.14 inches with a material of SS Type 316.
Features
- Quarter-turn latches for quick access
- 0.25-in. (6-mm) thick, clear polycarbonate windows for easy viewing
- 2.5-in. (64-mm) deep to allow for deep controls
- Built-in gasket compression stop on back of window kit facilitates flush mounting
- Designed for either left or right hinging
- Includes mounting template and mounting hardware
- Easy-to-remove clip-style hinge pin
- Optional Concept handles can be purchased separately to replace the standard quarter-turn latches
Specifications
Specifications
- BABA
- Yes, BABA Compliant
- Width (W)
- 406
- Thickness (T)
- 1.9
- IP Rating
- IP66
- Weight
- 14.8
- Material
- 316L Stainless steel
Height (H)610
FinishBrushed #4
Window Size (M x N)18.68 x 7.41
NEMA Rating4 Watertight
Works WithNEMA & IEC
Size22.19 x12.14 in
