Sequestr Low-Amp External Disconnect 4 12 3R, 34.45x14.00x24.13, Gray, Steel
nVent Hoffman

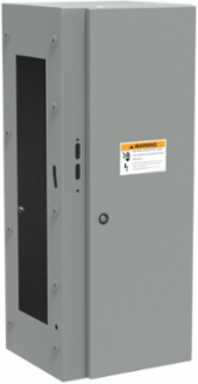

nVent Hoffman AXD341424 Sequestr Low-Amp External Disconnect 4 12 3R, 34.45x14.00x24.13, Gray, Steel

  • MPN: AXD341424
  • UPC: 783510365530
  • PPN: HOF-AXD341424
  • UNSPSC: 39121902

CAD

$1938.46

/ EA

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Company Stock:

0

Looking to buy a large quantity?

To view product inventory

Spec sheet

Description

Sequestr Low-Amp isolates disconnect increasing safety during maintenance 4, 12, 3R applications. This Sequestr Low-Amp External Disconnect 4 12 3R, AXD341424 item measures 34.45x14.00x24.13 inch with material of Steel color Gray.

Features

  • Seams continuously welded and ground smooth
  • Interlocks with doors of main enclosure when the disconnect handle is powered ON to prevent opening when energized
  • Disconnect handle mounts on main enclosure or Sequestr for more robust interlocking
  • Designed to house cable-operated or variable-depth rod disconnect switches or breakers for mounting flexibility
  • Maintains UL Type rating of main enclosure
  • Quarter-turn, slotted 3-point latch installed; padlocking handle shipped loose to provide additional level of security
  • Conductive back panel included
  • Hinged on right side
  • Removable door with hidden hinges for clean, aesthetic appearance
  • Bonding provision on door
  • Mounting and interlocking hardware included

Documentation & Downloads

Specifications

Key Specifications

BABA
Contact Manufacturer
Width (W)
356
Protection Rating
NEMA Type 4
Finish
Powder Coated
Color Code
ANSI 61
Weight
40
Size
34.45 x 14.00 x 24.13 inch
NEMA Rating
4, 12, 3R
Height (H)875
Depth (D)613
Product FamilySequestr
ColorGray
Thickness (T)1.5
Sub BrandSequestr
MaterialMild Steel
NEMA ColorANSI 61 Gray
