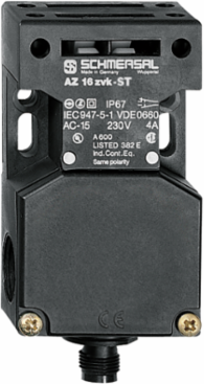

Schmersal 101143123 Safety Switch with Separate Actuator, IP67, 2 NC Contacts, Thermoplastic Enclosure
- MPN: 101143123
- PPN: SCM-101143123
CAD
$205.48
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Safety Switch with Separate Actuator, IP67, 2 NC Contacts, Thermoplastic Enclosure
Features
- Connector M12, 4-pole
- Thermoplastic enclosure
- Double-insulated
- 52 mm x 90 mm x 30 mm
- Universal coding
- Long life
- High level of contact reliability with low voltages and currents
- Insensitive to soiling
- Slotted holes for adjustment, circular holes for location
Documentation & Downloads
Specifications
Electrical data
- Thermal test current
- 10 A
- Switching element
- Opener (NC)
- Switching frequency
- 4,000 /h
Required rated short-circuit current1,000 A
Switching principleslow action, positive break NC contact
Material of the contacts, electricalSilver

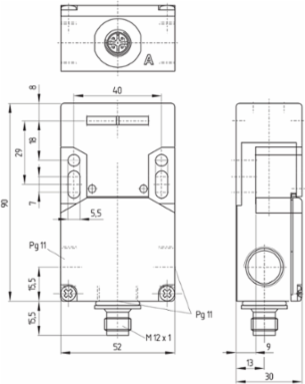

Mechanical data - Dimensions
- Length of sensor
- 30 mm
- Height of sensor
- 90 mm
Width of sensor52 mm
Ambient conditions - Insulation values
- Rated insulation voltage U
- 500 V
- Degree of pollution
- 3
Overvoltage categoryIII
Rated impulse withstand voltage, connector 4-pole2.5 kV
Electrical data - Safety contacts
- Voltage, Utilisation category AC-15
- 230 VAC
- Voltage, Utilisation category DC-13
- 24 VDC
- Note, Utilisation category DC-13
- Connector 4-pole
Current, Utilisation category AC-154 A
Current, Utilisation category DC-134 A
Scope of delivery
- Scope of delivery
- Actuator must be ordered separately.
Safety classification - Safety outputs
- B
- 2,000,000 Operations
General data - Features
- Ejection force
- Yes
- Number of safety contacts
- 2
Number of cable glands3
General data
- Standards
- EN ISO 13849-1 | EN ISO 14119 | EN IEC 60947-5-1
- Working principle
- electromechanical
- Gross weight
- 120 g
Coding level according to EN ISO 14119Low
Enclosure materialPlastic, glass-fibre reinforced thermoplastic, self-extinguishing
Electrical data - Auxiliary contacts
- Note, Utilisation category DC-13
- Connector 4-pin
Safety classification
- Standards
- EN ISO 13849-1
Mission time20 Year(s)
Ambient conditions
- Degree of protection
- IP67
- Storage and transport temperature, minimum
- -40 °C
- Permissible installation altitude above sea level, maximum
- 2,000 m
Ambient temperature-30 ... +80 °C
Storage and transport temperature, maximum+85 °C

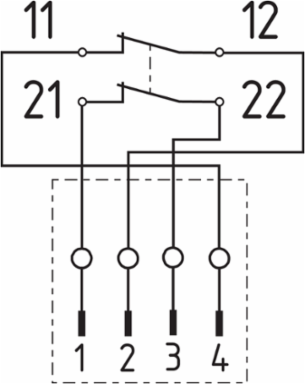

Mechanical data - Connection technique
- Termination
- Connector plug M12, 4-pole, (A-coding)
Cable entry3 x M16 x 1,5
Mechanical data
- Mechanical life, minimum
- 1,000,000 Operations
- Positive break force per NC contact, minimum
- 10 N
- Mounting
- Screws
Positive break travel8 mm
Actuating speed, maximum2 m/s
Type of the fixing screws2x M6
Approvals - Standards
- Certificates
- cULus | CCC
