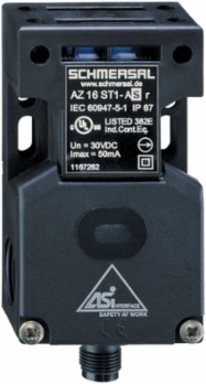

Schmersal 101167263 Safety Switch AZ 16 ST2-AS with AS-Interface, 52 mm x 90 mm x 30 mm
- MPN: 101167263
- PPN: SCM-101167263
CAD
$487.52
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Safety Switch AZ 16 ST2-AS with AS-Interface, 52 mm x 90 mm x 30 mm
Features
- connector plug M12, right, 4-pole
- Thermoplastic enclosure
- Long life

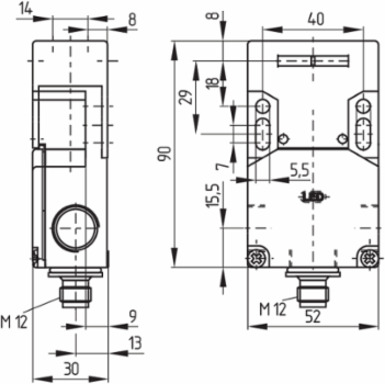

- 52 mm x 90 mm x 30 mm
- AS-Interface LED status display
- Actuator coded
- Safety switch with separate actuator
- Integrated AS-Interface
- AS interface M12 Plug-in connection
Documentation & Downloads
Specifications
Electrical data
- Current consumption
- 50 mA
Electrical data - AS-Interface specification
- AS-i Specification
- Safety-Slave
- AS-i Profile
- S-0.B.F.E
- AS-i, ID-Code
- 0xB
- AS-i, ID-Code2
- 0xE
- AS-i Input, Channel 2
- Data bits DI 2 / DI 3 = dynamic code transmission
- Note (AS-i Parameter bits)
- Set the parameter outputs to "1111" (0xF)
- Note (AS-i Input module address)
- Preset to address 0, can be changed through AS-interface bus master or hand-held programming device
AS-i VersionV 2.1
AS-i, IO-Code0x0
AS-i, ID-Code10xF
AS-i Input, Channel 1Data bits DI 0 / DI 1 = dynamic code transmission
AS-i Parameter bits, P0 ... P3No function
AS-i Input module address0
Mechanical data - Dimensions
- Length of sensor
- 30 mm
- Height of sensor
- 90 mm
Width of sensor52 mm
Pin assignment
- PIN 1
- AS-i +
- PIN 3
- AS-Interface -
PIN 2n.c.
PIN 4n.c.
Ambient conditions - Insulation values
- Rated insulation voltage U
- 32 VDC
- Overvoltage category
- III
Rated impulse withstand voltage U0.8 kV
Degree of pollution3
Scope of delivery
- Scope of delivery
- Actuator must be ordered separately.
General data - Features
- Increased latching force
- Yes
Integral system diagnostics, statusYes
General data
- Standards
- EN IEC 62026-2 | EN ISO 13849-1 | EN IEC 60947-5-1 | EN IEC 61508
- Gross weight
- 110 g
Enclosure materialGlass-fibre reinforced thermoplastic, self-extinguishing
Reaction time, maximum100 ms
Safety classification
- Standards
- EN IEC 61508
- Category
- 1
- Note (PFH-value)
- up to max. 100,000 switching cycles/year
- Mission time
- 20 Year(s)
- Performance Level, up to
- d
- PFH value
- 1.01 x 10⁻⁷ /h
Performance Level, up toc
PFH value1.14 x 10⁻⁶ /h
Safety Integrity Level (SIL), suitable for applications in1
Please note:Einsetzbar wenn ein Fehlerausschluss für eine gefahrbringende Beschädigung der 1-kanaligen Mechanik zulässig ist und ein ausreichender Manipulationsschutz gewährleistet ist.
Category3
Safety Integrity Level (SIL), suitable for applications in2
Electrical data - AS Interface
- Rated operating voltage
- 18 ... 31.6 VDC (Protection against polarity reversal)
Ambient conditions
- Degree of protection
- IP67
- Storage and transport temperature, minimum
- -25 °C
- Protection class
- II
Ambient temperature-25 ... +60 °C
Storage and transport temperature, maximum+85 °C
Mechanical data - Connection technique
- Termination
- Connector plug M12, 4-pole, (A-coding)
Connector positionRight
Mechanical data
- Mechanical life, minimum
- 1,000,000 Operations
Latching force30 N
Approvals - Standards
- Certificates
- TÜV | cULus | ASi-SaW
Status indication
- Note (LED switching conditions display)
- (1) LED green: Supply voltage | (2) red LED: Communication error / Slave address = 0 | (3) LED yellow : Enabling status
