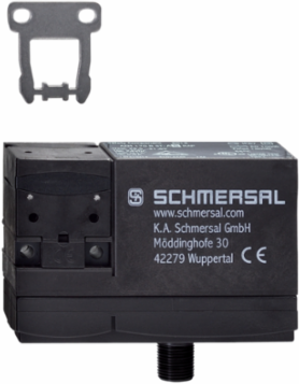

Schmersal 101210927 Safety Switch with Integrated AS-Interface, 90 mm x 84 mm x 30 mm, 1,000 N Holding Force
- MPN: 101210927
- PPN: SCM-101210927
CAD
$836.45
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Safety Switch with Integrated AS-Interface, 90 mm x 84 mm x 30 mm, 1,000 N Holding Force
Features
- Actuator monitored
- Solenoid interlock
- Integrated AS-Interface
- Thermoplastic enclosure
- 90 mm x 84 mm x 30 mm
- Double-insulated
- High holding force
Documentation & Downloads
Specifications
Electrical data - AS-Interface specification
- AS-i Specification
- Safety-Slave
- AS-i Profile
- S-7.B.F.E
- AS-i, ID-Code
- 0xB
- AS-i, ID-Code2
- 0xE
- AS-i Input, Channel 2
- Data bits DI 2 / DI 3 = dynamic code transmission
- AS-i Outputs, DO 1
- No Function
- AS-i Outputs, DO 3
- No Function
- AS-i Parameter bits, P1
- Solenoid interlock locked
- AS-i Parameter bits, P3
- No function
- AS-i Input module address
- 0
AS-i VersionV 2.1
AS-i, IO-Code0x7
AS-i, ID-Code10xF
AS-i Input, Channel 1Data bits DI 0 / DI 1 = dynamic code transmission
AS-i Outputs, DO 0Solenoid control
AS-i Outputs, DO 2No Function
AS-i Parameter bits, P0Safety guard and actuator detected
AS-i Parameter bits, P2No function
Note (AS-i Parameter bits)Set the parameter outputs to "1111" (0xF) | FID: periphery error
Note (AS-i Input module address)Preset to address 0, can be changed through AS-interface bus master or hand-held programming device
Note
- Note (General)
- Interlocks with the power to lock principle may only be used in special cases after a thorough evaluation of the accident risk, since the guarding device can immediately be opened on failure of the electrical power supply or when the main switch is opened.

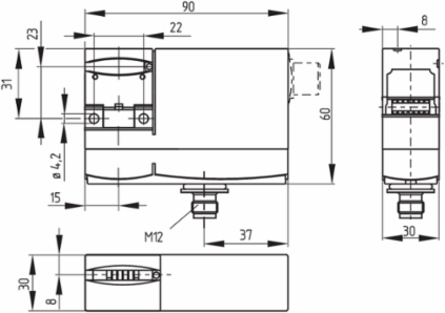

Mechanical data - Dimensions
- Width of sensor
- 90 mm
Height of sensor75.5 mm
Pin assignment
- PIN 1
- AS-i +
- PIN 3
- AS-Interface -
PIN 2Aux - (P)
PIN 4Aux + (P)
Ambient conditions - Insulation values
- Rated insulation voltage U
- 32 VDC
- Overvoltage category
- III
Rated impulse withstand voltage U0.8 kV
Degree of pollution3
Scope of delivery
- Scope of delivery
- Actuator must be ordered separately.
General data - Features
- Power to unlock
- Yes
- Integral system diagnostics, status
- Yes
Actuator monitoredYes
Number of actuating directions2
General data
- Standards
- EN IEC 62026-2 | EN ISO 13849-1 | EN IEC 60947-5-1 | EN IEC 61508
- Enclosure material
- Plastic, glass-fibre reinforced thermoplastic, self-extinguishing
- Reaction time, maximum
- 100 ms
Working principleelectromechanical
Gross weight285 g
Safety classification
- Standards
- EN IEC 61508
- Category
- 1
- Note (PFH-value)
- up to max. 100,000 switching cycles/year
- Mission time
- 20 Year(s)
- Performance Level, up to
- d
- PFH value
- 1.01 x 10⁻⁷ /h
Performance Level, up toc
PFH value1.16 x 10⁻⁶ /h
Safety Integrity Level (SIL), suitable for applications in1
Please note:Einsetzbar wenn ein Fehlerausschluss für eine gefahrbringende Beschädigung der 1-kanaligen Mechanik zulässig ist und ein ausreichender Manipulationsschutz gewährleistet ist.
Category3
Safety Integrity Level (SIL), suitable for applications in2
Electrical data - AS Interface
- Rated operating voltage
- 26.5 ... 31.6 VDC (Protection against polarity reversal)
AS-i Current consumption, maximum100 mA
Ambient conditions
- Degree of protection
- IP67
- Storage and transport temperature, minimum
- -25 °C
- Relative humidity, minimum
- 30 %
- Note (Relative humidity)
- non-condensing | non-icing
Ambient temperature-25 ... +55 °C
Storage and transport temperature, maximum+85 °C
Relative humidity, maximum95 %
Protection classII
Mechanical data - Connection technique
- Termination
- Connector plug M12, 4-pole, (A-coding)
Mechanical data
- Mechanical life, minimum
- 1,000,000 Operations
- Latching force
- 30 N
Holding force1,000 N
Actuating speed, maximum2 m/s
Approvals - Standards
- Certificates
- TÜV | cULus | ASi-SaW
Electrical data - Auxiliary voltage
- Operating voltage
- 24 VDC -15 % / +10 % (stabilised PELV power supply)
- Rated operating voltage
- 24 VDC
Current consumption500 mA
Status indication
- Note (LED switching conditions display)
- (1) LED green: Supply voltage | (2) red LED: Communication error / Slave address = 0 | (3) LED yellow : Enabling status
