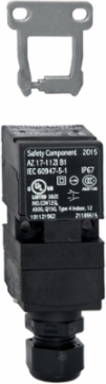

Schmersal 101122858 Safety Switch AZ 17-02ZI B6L, 30 mm x 30 mm x 85 mm, IP67, High Coding Level

MPN: 101122858
PPN: SCM-101122858

$168.65

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

Safety Switch AZ 17-02ZI B6L, 30 mm x 30 mm x 85 mm, IP67, High Coding Level

Features

cable gland M16
left-hand model

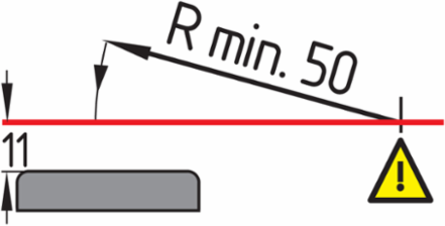

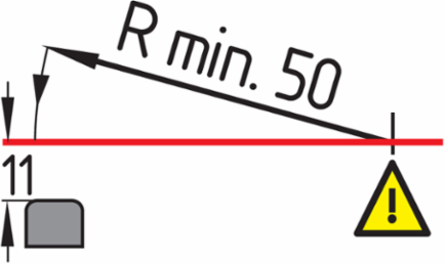

For very smal actuating radii in line with or at 90° to the plane of the actuator
Thermoplastic enclosure
Double-insulated
Long life
30 mm x 60 mm x 30 mm
small body
Individual coding
Coding level "High" according to ISO 14119
High level of contact reliability with low voltages and currents
Insensitive to soiling
Slot sealing plug included
8 actuating planes

Documentation & Downloads

Specifications

Electrical data

Thermal test current	10 A
Switching element	Opener (NC)
Switching frequency	2,000 /h

Required rated short-circuit current	1,000 A
Switching principle	slow action, positive break NC contact
Material of the contacts, electrical	Silver

Note

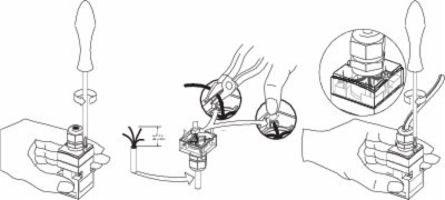

Note (General)	This type termination (IDC) method enables simple connetion of flexible conductors without the need for the use of conductor ferrules \| The actuator is not available separately.

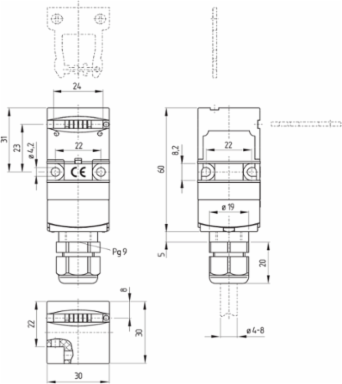

Mechanical data - Dimensions

Length of sensor	30 mm
Height of sensor	85 mm

Width of sensor	30 mm

Ambient conditions - Insulation values

Rated insulation voltage U	250 VAC
Overvoltage category	III

Rated impulse withstand voltage U	4 kV
Degree of pollution	3

Electrical data - Safety contacts

Current, Utilisation category AC-15	4 A

Current, Utilisation category DC-13	4 A

Scope of delivery

Scope of delivery	Not available as spare part \| Slot cover for dust-proof covering of the opening not in use

Safety classification - Safety outputs

B	2,000,000 Operations

General data - Features

Number of actuating directions	2
Number of safety contacts	2

Number of cable glands	1

General data

Standards	EN ISO 13849-1 \| EN ISO 14119 \| EN IEC 60947-5-1
Working principle	electromechanical

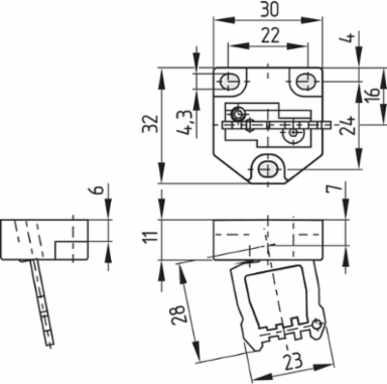

Material of the actuator	Stainless steel

Coding level according to EN ISO 14119	High
Enclosure material	Plastic, glass-fibre reinforced thermoplastic, self-extinguishing
Gross weight	100 g

Safety classification

Standards	EN IEC 60947-5-1

Mission time	20 Year(s)

Ambient conditions

Degree of protection	IP67
Storage and transport temperature, minimum	-30 °C
Permissible installation altitude above sea level, maximum	2,000 m

Ambient temperature	-30 ... +80 °C
Storage and transport temperature, maximum	+85 °C

Mechanical data - Connection technique

Termination	IDC method of termination
Cable section, maximum	1 mm²
Allowed type of cable	flexible

Cable section, minimum	0.75 mm²
Note (Cable section)	All indications including the conductor ferrules.

Mechanical data

Mechanical life, minimum	1,000,000 Operations
Positive break travel	11 mm
Positive break force, minimum	34 N
Mounting	Screws
Tightening torque of the fastening screws for the housing cover, minimum	0.7 Nm
Note	Torx T10

Latching force	5 N
Positive break force per NC contact, minimum	17 N
Actuating speed, maximum	2 m/s
Type of the fixing screws	2x M5
Tightening torque of the fastening screws for the housing cover, maximum	1 Nm
