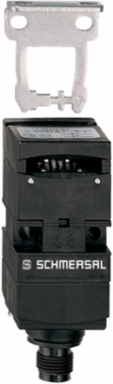

Schmersal 101144084 Safety Switch AZ 17-02ZRI-ST B5, 30 mm x 60 mm x 30 mm, IP67, 2 NC Contacts
- MPN: 101144084
- PPN: SCM-101144084
CAD
$207.42
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Safety Switch AZ 17-02ZRI-ST B5, 30 mm x 60 mm x 30 mm, IP67, 2 NC Contacts
Features
- Connector M12 x 1, 4-pole
- Thermoplastic enclosure
- Double-insulated
- Long life
- 30 mm x 60 mm x 30 mm
- small body
- Individual coding
- Coding level "High" according to ISO 14119
- High level of contact reliability with low voltages and currents
- Insensitive to soiling
- Slot sealing plug included
- 8 actuating planes
Documentation & Downloads
Specifications
Electrical data
- Thermal test current
- 10 A
- Switching element
- Opener (NC)
- Switching frequency
- 2,000 /h
Required rated short-circuit current1,000 A
Switching principleslow action, positive break NC contact
Material of the contacts, electricalSilver
Note
- Note (General)

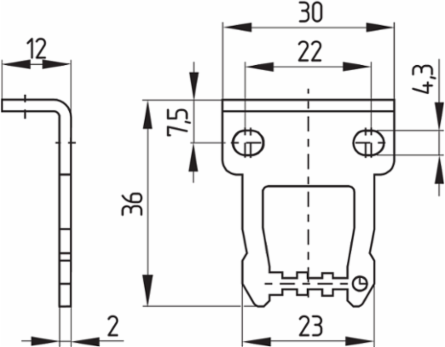

- minimum actuating radius on rotating guard systems via the narrow edge of the actuator 140 mm | minimum actuating radius on hinged guards in line with the plane of the actuator 200 mm | The axis of the hinge must be 13 mm above and in a parallel plane to the top surface of the safety switch. | The actuator is not available separately.

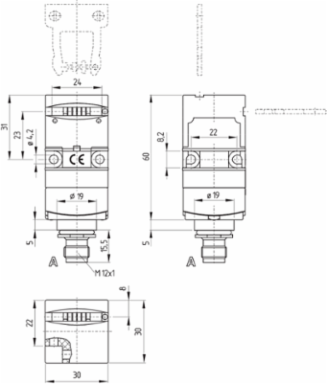

Mechanical data - Dimensions
- Length of sensor
- 30 mm
- Height of sensor
- 85 mm
Width of sensor30 mm
Ambient conditions - Insulation values
- Rated insulation voltage U
- 250 VAC
- Overvoltage category
- III
Rated impulse withstand voltage U4 kV
Degree of pollution3
Electrical data - Safety contacts
- Voltage, Utilisation category AC-15
- 230 VAC
- Voltage, Utilisation category DC-13
- 24 VDC
Current, Utilisation category AC-154 A
Current, Utilisation category DC-134 A
Scope of delivery
- Scope of delivery
- Not available as spare part | Slot cover for dust-proof covering of the opening not in use
Safety classification - Safety outputs
- B
- 2,000,000 Operations
General data - Features
- Increased latching force
- Yes
- Number of cable glands
- 1
Number of actuating directions2
Number of safety contacts2
General data
- Standards
- EN ISO 13849-1 | EN ISO 14119 | EN IEC 60947-5-1
- Working principle
- electromechanical
- Material of the actuator
- Stainless steel
Coding level according to EN ISO 14119High
Enclosure materialPlastic, glass-fibre reinforced thermoplastic, self-extinguishing
Gross weight90 g
Safety classification
- Standards
- EN ISO 13849-1
Mission time20 Year(s)
Ambient conditions
- Degree of protection
- IP67
- Storage and transport temperature, minimum
- -30 °C
- Permissible installation altitude above sea level, maximum
- 2,000 m
Ambient temperature-30 ... +80 °C
Storage and transport temperature, maximum+85 °C
Mechanical data - Connection technique
- Termination
- Connector plug M12, 4-pole, (A-coding)
Mechanical data
- Mechanical life, minimum
- 1,000,000 Operations
- Positive break travel
- 11 mm
- Actuating speed, maximum
- 2 m/s
- Type of the fixing screws
- 2x M5
Latching force30 N
Positive break force per NC contact, minimum17 N
MountingScrews
