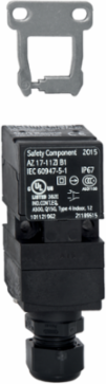

Schmersal 101136310 AZ 17-02ZRI Safety Switch, 30 mm x 60 mm x 30 mm, IP67, 2 NC Contacts
- MPN: 101136310
- PPN: SCM-101136310
CAD
$161.86
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
AZ 17-02ZRI Safety Switch, 30 mm x 60 mm x 30 mm, IP67, 2 NC Contacts
Features
- cable gland M16
- right-hand model

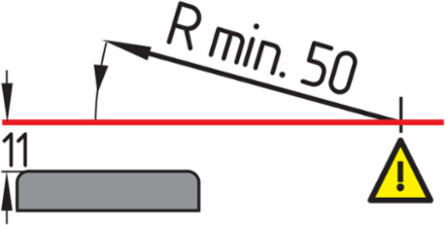

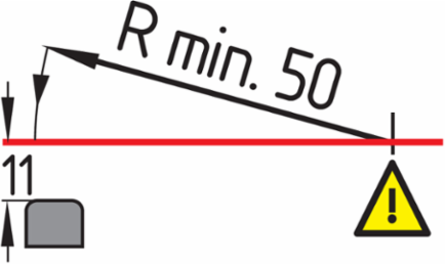

- For very smal actuating radii in line with or at 90° to the plane of the actuator
- Thermoplastic enclosure
- Double-insulated
- Long life

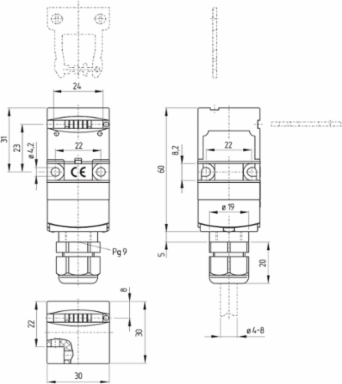

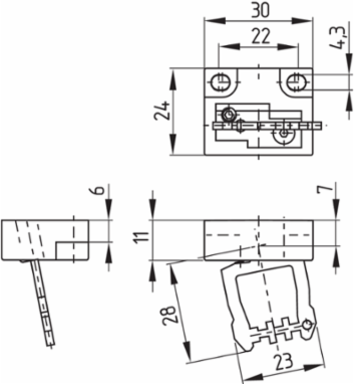

- 30 mm x 60 mm x 30 mm
- small body
- Individual coding
- Coding level "High" according to ISO 14119
- High level of contact reliability with low voltages and currents
- Insensitive to soiling
- Slot sealing plug included
- 8 actuating planes
Documentation & Downloads
Specifications
Electrical data
- Thermal test current
- 10 A
- Switching element
- Opener (NC)
- Switching frequency
- 2,000 /h
Required rated short-circuit current1,000 A
Switching principleslow action, positive break NC contact
Material of the contacts, electricalSilver
Note
- Note (General)
- The actuator is not available separately.
Mechanical data - Dimensions
- Length of sensor
- 30 mm
- Height of sensor
- 85 mm
Width of sensor30 mm
Ambient conditions - Insulation values
- Rated insulation voltage U
- 250 VAC
- Overvoltage category
- III
Rated impulse withstand voltage U4 kV
Degree of pollution3
Electrical data - Safety contacts
- Voltage, Utilisation category AC-15
- 230 VAC
- Voltage, Utilisation category DC-13
- 24 VDC
Current, Utilisation category AC-154 A
Current, Utilisation category DC-134 A
Scope of delivery
- Scope of delivery
- Not available as spare part | Slot cover for dust-proof covering of the opening not in use
Safety classification - Safety outputs
- B
- 2,000,000 Operations
General data - Features
- Increased latching force
- Yes
- Number of cable glands
- 1
Number of actuating directions2
Number of safety contacts2
General data
- Standards
- EN ISO 13849-1 | EN ISO 14119 | EN IEC 60947-5-1
- Working principle
- electromechanical
- Material of the actuator
- Stainless steel
Coding level according to EN ISO 14119High
Enclosure materialPlastic, glass-fibre reinforced thermoplastic, self-extinguishing
Gross weight115 g
Safety classification
- Standards
- EN ISO 13849-1 | EN IEC 60947-5-1
Mission time20 Year(s)
Ambient conditions
- Degree of protection
- IP67
- Storage and transport temperature, minimum
- -30 °C
- Permissible installation altitude above sea level, maximum
- 2,000 m
Ambient temperature-30 ... +80 °C
Storage and transport temperature, maximum+85 °C

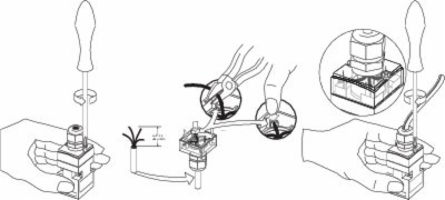

Mechanical data - Connection technique
- Cable section, minimum
- 0.75 mm²
- Note (Cable section)
- All indications including the conductor ferrules.
Cable section, maximum1 mm²
Allowed type of cableflexible
Mechanical data
- Mechanical life, minimum
- 1,000,000 Operations
- Positive break travel
- 11 mm
- Positive break force, minimum
- 34 N
- Mounting
- Screws
- Tightening torque of the fastening screws for the housing cover, minimum
- 0.7 Nm
- Note
- Torx T10
Latching force30 N
Positive break force per NC contact, minimum17 N
Actuating speed, maximum2 m/s
Type of the fixing screws2x M5
Tightening torque of the fastening screws for the housing cover, maximum1 Nm
