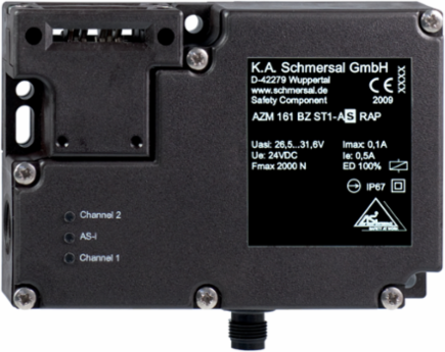

Schmersal 101209091 Safety Switch AZM 161 B ST1-AS A, 130 mm x 90 mm x 30 mm, Solenoid Interlock, IP67
- MPN: 101209091
- PPN: SCM-101209091
CAD
$849.05
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Safety Switch AZM 161 B ST1-AS A, 130 mm x 90 mm x 30 mm, Solenoid Interlock, IP67
Features
- Actuator monitored
- Manual release
- Solenoid interlock
- Thermoplastic enclosure
- High holding force 2000
- 130 mm x 90 mm x 30 mm
- Interlock with protection against incorrect locking.
- Double-insulated
- Long life
- Integrated AS-Interface
Documentation & Downloads
Specifications
Electrical data
| Switching frequency | 1,000 /h |
|---|
Electrical data - AS-Interface specification
| AS-i Specification | Safety-Slave |
|---|---|
| AS-i Profile | S-7.B.F.E |
| AS-i, ID-Code | 0xB |
| AS-i, ID-Code2 | 0xE |
| AS-i Input, Channel 2 | Data bits DI 2 / DI 3 = dynamic code transmission |
| AS-i Outputs, DO 1 | No Function |
| AS-i Outputs, DO 3 | No Function |
| AS-i Parameter bits, P1 | Solenoid interlock locked |
| AS-i Parameter bits, P3 | Error message - locking/unlocking of the solenoid interlock blocked |
| AS-i Input module address | 0 |
| AS-i Version | V 2.1 |
|---|---|
| AS-i, IO-Code | 0x7 |
| AS-i, ID-Code1 | 0xF |
| AS-i Input, Channel 1 | Data bits DI 0 / DI 1 = dynamic code transmission |
| AS-i Outputs, DO 0 | Solenoid control |
| AS-i Outputs, DO 2 | No Function |
| AS-i Parameter bits, P0 | Actuator detected |
| AS-i Parameter bits, P2 | Magnet voltage in tolerance range |
| Note (AS-i Parameter bits) | Set the parameter outputs to "1111" (0xF) | FID: periphery error |
| Note (AS-i Input module address) | Preset to address 0, can be changed through AS-interface bus master or hand-held programming device |
Note
| Note (General) | Interlocks with the power to lock principle may only be used in special cases after a thorough evaluation of the accident risk, since the guarding device can immediately be opened on failure of the electrical power supply or when the main switch is opened. |
|---|

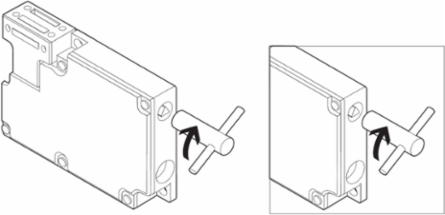

| Note (Manual release) | For maintenance, installation, etc. | For manual release using M5 triangular key, available as accessory |
|---|

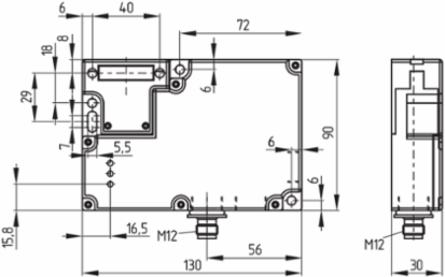

Mechanical data - Dimensions
| Length of sensor | 30 mm |
|---|---|
| Height of sensor | 90 mm |
| Width of sensor | 130 mm |
|---|
Pin assignment
| PIN 1 | AS-i + |
|---|---|
| PIN 3 | AS-Interface - |
| PIN 2 | Aux - (P) |
|---|---|
| PIN 4 | Aux + (P) |
Ambient conditions - Insulation values
| Rated insulation voltage U | 32 VDC |
|---|---|
| Overvoltage category | III |
| Rated impulse withstand voltage U | 0.8 kV |
|---|---|
| Degree of pollution | 3 |
Scope of delivery
| Scope of delivery | Actuator must be ordered separately. |
|---|
General data - Features
| Power to lock | Yes |
|---|---|
| Manual release | Yes |
| Number of actuating directions | 3 |
| Actuator monitored | Yes |
|---|---|
| Integral system diagnostics, status | Yes |
General data
| Standards | EN IEC 62026-2 | EN ISO 13849-1 | EN IEC 60947-5-1 | EN IEC 61508 |
|---|---|
| Working principle | electromechanical |
| Gross weight | 450 g |
| Coding level according to EN ISO 14119 | Low |
|---|---|
| Enclosure material | Plastic, glass-fibre reinforced thermoplastic, self-extinguishing |
| Reaction time, maximum | 100 ms |
Safety classification
| Standards | EN ISO 13849-1 | EN IEC 61508 |
|---|---|
| Category | 1 |
| Note (PFH-value) | up to max. 100,000 switching cycles/year |
| Mission time | 20 Year(s) |
| Performance Level, up to | d |
| PFH value | 1.01 x 10⁻⁷ /h |
| Performance Level, up to | c |
|---|---|
| PFH value | 1.14 x 10⁻⁶ /h |
| Safety Integrity Level (SIL), suitable for applications in | 1 |
| Please note: | Einsetzbar wenn ein Fehlerausschluss für eine gefahrbringende Beschädigung der 1-kanaligen Mechanik zulässig ist und ein ausreichender Manipulationsschutz gewährleistet ist. |
| Category | 3 |
| Safety Integrity Level (SIL), suitable for applications in | 2 |
Electrical data - AS Interface
| Rated operating voltage | 26.5 ... 31.6 VDC (Protection against polarity reversal) |
|---|
| AS-i Current consumption, maximum | 250 mA |
|---|
Other data
| Note (applications) | sliding safety guard | removable guard | hinged safety guard |
|---|
Ambient conditions
| Degree of protection | IP67 |
|---|---|
| Storage and transport temperature, minimum | -25 °C |
| Relative humidity, minimum | 30 % |
| Note (Relative humidity) | non-condensing | non-icing |
| Restistance to shock | 30 g / 11 ms |
| Permissible installation altitude above sea level, maximum | 2,000 m |
| Ambient temperature | -25 ... +60 °C |
|---|---|
| Storage and transport temperature, maximum | +85 °C |
| Relative humidity, maximum | 95 % |
| Resistance to vibrations | 10 Hz ... 150 Hz, amplitude 0.35 mm |
| Protection class | II |
Mechanical data - Connection technique
| Termination | Connector plug M12, 4-pole, (A-coding) |
|---|
| Connector position | Right |
|---|
Mechanical data
| Mechanical life, minimum | 1,000,000 Operations |
|---|---|
| Holding force F | 2,000 N |
| Latching force | 5 N |
| Mounting | Screws |
| Actuating play in direction of actuation | 5.5 mm |
|---|---|
| Holding force F | 2,600 N |
| Actuating speed, maximum | 2 m/s |
| Type of the fixing screws | 3x M6 |
Approvals - Standards
| Certificates | TÜV | cULus | ASi-SaW |
|---|
Status indication
| Note (LED switching conditions display) | (1) LED yellow: Channel 2 / AS-i SaW Bit 2.3 | (2) LED green/red (AS-i duo LED): Supply voltage / communication error / slave address = 0 / periphery error detected | (3) LED yellow: Channel 1 / AS-i SaW Bit 0.1 |
|---|
