Schmersal 103013491 AZM201 Solenoid Interlock with 50 mm Sensor Length, IP66/IP67 Protection
- MPN: 103013491
- PPN: SCM-103013491
CAD
$976.98
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
AZM201 Solenoid Interlock with 50 mm Sensor Length, IP66/IP67 Protection
Features
- Repeated individual coding with RFID technology
- Actuator monitored
- Power to lock
- Thermoplastic enclosure
- Max. length of the sensor chain 200 m

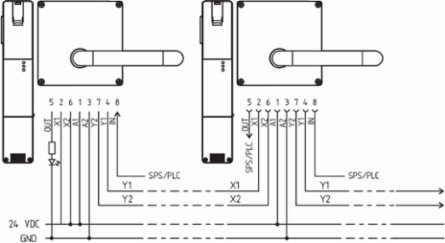

- Self-monitoring series-wiring
- Coding in accordance to ISO 14119 by using RFID-Technology
- 3 LEDs to show operating conditions
- Sensor technology permits an offset between actuator and interlock of ± 5 mm vertically and ± 3 mm horizontally
- Suitable for hinged and sliding guards
- Intelligent diagnosis
- Manual release
- Protection class IP66, IP67
- High holding force 2000
- symmetrical construction form, assembly on 40mm profiles
- OSSD safety outputs
- Emergency exit / Emergency release suitable for retrofitting
Documentation & Downloads
Specifications
Electrical data - Fail-safe digital outputs
- Rated operating current (safety outputs)
- 250 mA
- Current leakage I
- 0.5 mA
- Current, Utilisation category DC-13
- 0.25 A
- Classification ZVEI CB24I, Sink
- C1 | C2
Voltage drop U4 V
Voltage, Utilisation category DC-1324 VDC
Classification ZVEI CB24I, SourceC2
Safety appraisal - Guard locking
- Mission Time
- 20 Year(s)
Safety appraisal
- Standards
- EN ISO 13849-1 | IEC 62061 | IEC 61508
Electrical data
- Operating voltage, minimum
- 20.4 VDC
- No-load supply current I
- 50 mA
- Current consumption with solenoid ON, peak
- 700 mA / 100 ms
- Switching frequency, approx.
- 1 Hz
Operating voltage, maximum26.4 VDC
Current consumption with solenoid ON, average200 mA
Operating current1,200 mA
Electrical data - Fail-safe digital inputs
- Switching thresholds
- −3 V … 5 V (Low) | 15 V … 30 V (High)
- Classification ZVEI CB24I, Source
- C1 | C2 | C3
Classification ZVEI CB24I, SinkC1
Safety appraisal - Interlocking
- Performance level, up to
- e
- PFH-value
- 1.90 x 10⁻⁹ /h
- Safety Integrity Level (SIL), suitable for applications in
- 3
Control category4
PFD value1.60 x 10⁻⁴
Mission Time20 Year(s)

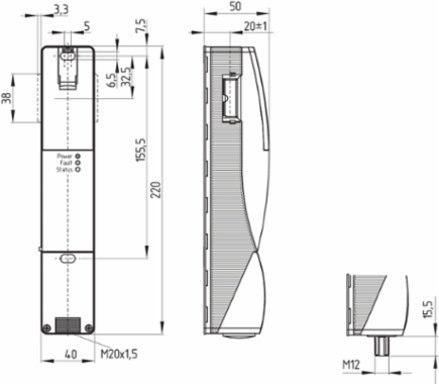

Mechanical data - Dimensions
- Length of sensor
- 50 mm
- Height of sensor
- 220 mm
Width of sensor40 mm
Electrical data - Solenoid control
- Switching thresholds
- -3 V … 5 V (Low) | 15 V … 30 V (High)
- Classification ZVEI CB24I, Source
- C1 | C2 | C3
Classification ZVEI CB24I, SinkC0
Scope of delivery
- Included in delivery
- Actuators must be ordered separately. | Triangular key for AZM 201
Ambient conditions - Insulation value
- Rated insulation voltage U
- 32 VDC
- Overvoltage category
- III
Rated impulse withstand voltage U0.8 kV
Degree of pollution to VDE 01003
General data - Features
- Power to lock
- Yes
- Manual release
- Yes
- Short-circuit recognition
- Yes
- Safety functions
- Yes
- Number of safety contacts
- 2
Actuator monitoredYes
Short circuit detectionYes
Series-wiringYes
Integral System Diagnostics, statusYes
General data
- Standards
- IEC 60947-5-1 | EN ISO 13849-1 | IEC 61508 | IEC 60947-5-3 | EN ISO 14119 | IEC 62061
- Coding level according to ISO 14119
- High
- Enclosure material
- Glass-fibre, reinforced thermoplastic
- Time to readiness, maximum
- 4,000 ms
- Response time safety outputs in case of switch-off by actuator, maximum
- 100 ms
general informationIndividual coding, multiple teaching
Active principleRFID
Gross weight587 g
Duration of risk, maximum200 ms
Response time safety outputs in case of switch-off by safety inputs, maximum0.5 ms
Ambient conditions
- Degree of protection
- IP66 to EN 60529 | IP67 to EN 60529
- Ambient temperature, maximum
- +60 °C
- Storage and transport temperature, maximum
- +85 °C
- Relative humidity, maximum
- 95 %
- Resistance to vibrations to EN 60068-2-6
- 10 … 150 Hz, amplitude 0.35 mm
- Protection rating
- III
Ambient temperature, minimum-25 °C
Storage and transport temperature, minimum-25 °C
Relative humidity, minimum30 %
Note (Relative humidity)non-condensing
Restistance to shock30 g / 11 ms
Electrical data - Diagnostic output
- Operating current
- 50 mA
- Voltage, Utilisation category DC-13
- 24 VDC
Voltage drop U4 V
Current, Utilisation category DC-130.05 A
Mechanical data - Connection technique
- Terminal Connector
- Screw terminals M20 x 1.5
- Cable section, maximum
- 1.5 mm²
- Wire cross-section, minimum
- 23 AWG
Cable section, minimum0.25 mm²
Note (Cable section)All indications about the cable section are including the conductor ferrules.
Wire cross-section, maximum15 AWG
Mechanical data
- Mechanical life, minimum
- 1,000,000 Operations
- Clamping force, maximum F
- 2,600 N
- Actuating speed, maximum
- 0.2 m/s
Clamping force in accordance with EN ISO 14119 F2,000 N
Latching force30 N
Accessory
- Recommendation (actuator)
- AZ/AZM201-B1 | AZ/AZM201-B30
Approval - Standards
- Certificates
- TÜV | cULus | EAC | FCC | IC
Status indication
- Note (LED switching conditions display)
- Operating condition: LED green | Error / functional defect: LED red | Supply voltage UB: LED green
