Schmersal 103013912 AZM201 Solenoid Interlock, IP66/IP67, 2000N Holding Force, 220mm Height

MPN: 103013912
PPN: SCM-103013912

$978.92

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

AZM201 Solenoid Interlock, IP66/IP67, 2000N Holding Force, 220mm Height

Features

Power to unlock
Guard locking monitored
Thermoplastic enclosure
Max. length of the sensor chain 200 m

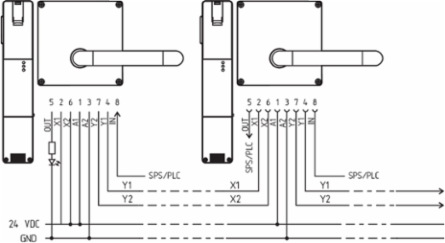

Self-monitoring series-wiring
Coding in accordance to ISO 14119 by using RFID-Technology
3 LEDs to show operating conditions
Sensor technology permits an offset between actuator and interlock of ± 5 mm vertically and ± 3 mm horizontally
Suitable for hinged and sliding guards
Intelligent diagnosis
Manual release
Protection class IP66, IP67
High holding force 2000
symmetrical construction form, assembly on 40mm profiles
OSSD safety outputs
Emergency exit / Emergency release suitable for retrofitting

Documentation & Downloads

Specifications

Electrical data - Fail-safe digital outputs

Rated operating current (safety outputs)	250 mA
Current leakage I	0.5 mA
Current, Utilisation category DC-13	0.25 A
Classification ZVEI CB24I, Sink	C1 \| C2

Voltage drop U	4 V
Voltage, Utilisation category DC-13	24 VDC
Classification ZVEI CB24I, Source	C2

Safety appraisal - Guard locking

Performance level, up to	d
PFH-value	1.00 x 10⁻⁸ /h
Safety Integrity Level (SIL), suitable for applications in	2

Control category	2
PFD value	8.90 x 10⁻⁴
Mission Time	20 Year(s)

Safety appraisal

Standards	IEC 62061 \| IEC 61508 \| EN ISO 13849-1

Electrical data

Operating voltage, minimum	20.4 VDC
No-load supply current I	50 mA
Current consumption with solenoid ON, peak	700 mA / 100 ms
Switching frequency, approx.	1 Hz

Operating voltage, maximum	26.4 VDC
Current consumption with solenoid ON, average	200 mA
Operating current	1,200 mA

Electrical data - Fail-safe digital inputs

Switching thresholds	−3 V … 5 V (Low) \| 15 V … 30 V (High)
Classification ZVEI CB24I, Source	C1 \| C2 \| C3

Classification ZVEI CB24I, Sink	C1

Safety appraisal - Interlocking

Performance level, up to	e
PFH-value	1.90 x 10⁻⁹ /h
Safety Integrity Level (SIL), suitable for applications in	3

Control category	4
PFD value	1.60 x 10⁻⁴
Mission Time	20 Year(s)

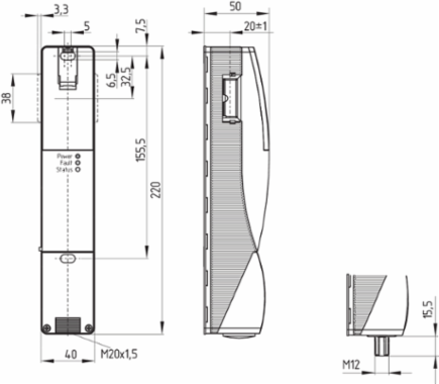

Mechanical data - Dimensions

Length of sensor	50 mm
Height of sensor	220 mm

Width of sensor	40 mm

Electrical data - Solenoid control

Switching thresholds	-3 V … 5 V (Low) \| 15 V … 30 V (High)
Classification ZVEI CB24I, Source	C1 \| C2 \| C3

Classification ZVEI CB24I, Sink	C0

Scope of delivery

Included in delivery	Actuators must be ordered separately. \| Triangular key for AZM 201

Ambient conditions - Insulation value

Rated insulation voltage U	32 VDC
Overvoltage category	III

Rated impulse withstand voltage U	0.8 kV
Degree of pollution to VDE 0100	3

General data - Features

Power to unlock	Yes
Manual release	Yes
Short-circuit recognition	Yes
Safety functions	Yes
Number of safety contacts	2

Guard locking monitored	Yes
Short circuit detection	Yes
Series-wiring	Yes
Integral System Diagnostics, status	Yes

General data

Standards	IEC 60947-5-1 \| EN ISO 13849-1 \| IEC 61508 \| IEC 60947-5-3 \| EN ISO 14119 \| IEC 62061
Coding level according to ISO 14119	Low
Enclosure material	Glass-fibre, reinforced thermoplastic
Time to readiness, maximum	4,000 ms
Response time safety outputs in case of switch-off by actuator, maximum	100 ms

general information	Universal coding
Active principle	RFID
Gross weight	566.1 g
Duration of risk, maximum	200 ms
Response time safety outputs in case of switch-off by safety inputs, maximum	0.5 ms

Ambient conditions

Degree of protection	IP66 to EN 60529 \| IP67 to EN 60529
Ambient temperature, maximum	+60 °C
Storage and transport temperature, maximum	+85 °C
Relative humidity, maximum	95 %
Resistance to vibrations to EN 60068-2-6	10 … 150 Hz, amplitude 0.35 mm
Protection rating	III

Ambient temperature, minimum	-25 °C
Storage and transport temperature, minimum	-25 °C
Relative humidity, minimum	30 %
Note (Relative humidity)	non-condensing
Restistance to shock	30 g / 11 ms

Electrical data - Diagnostic output

Operating current	50 mA
Voltage, Utilisation category DC-13	24 VDC

Voltage drop U	4 V
Current, Utilisation category DC-13	0.05 A

Mechanical data - Connection technique

Terminal Connector	Spring pulley connection
Cable section, maximum	1.5 mm²
Wire cross-section, minimum	23 AWG

Cable section, minimum	0.25 mm²
Note (Cable section)	All indications about the cable section are including the conductor ferrules.
Wire cross-section, maximum	15 AWG
