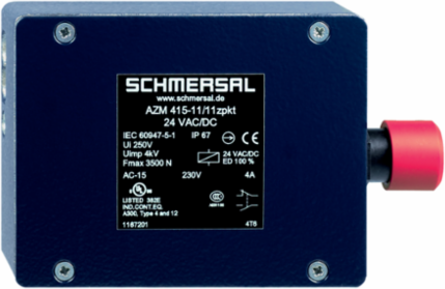

Schmersal 101186831 Electromechanical Safety Interlock, 24 VAC/DC, 100 mm Height, 4 Safety Contacts
- MPN: 101186831
- PPN: SCM-101186831
CAD
$1430.58
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Electromechanical Safety Interlock, 24 VAC/DC, 100 mm Height, 4 Safety Contacts
Features
- Metal enclosure
- Interlock with protection against incorrect locking.
- Robust design
- Long life
- 2 cable entries M 20 x 1.5
- Cut clamp termination
Documentation & Downloads
Specifications

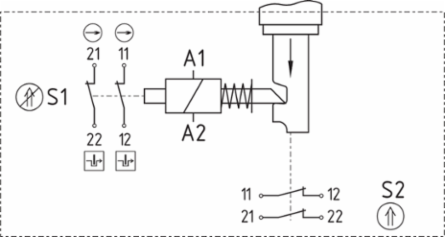

Electrical data
| Thermal test current | 6 A |
|---|---|
| Utilisation category AC-15 | 230 VAC |
| Utilisation category DC-13 | 24 VDC |
| Electrical power consumption, maximum | 10 W |
| Switching principle | Slow action |
| Rated control voltage | 24 VAC/DC |
|---|---|
| Utilisation category AC-15 | 4 A |
| Utilisation category DC-13 | 1 A |
| Switching element | Opener (NC) |
| Material of the contacts, electrical | Silver |
Note
| Note (Emergency exit) | using latched pushbutton | The emergency exit is used where an intervention in an already locked hazardous area is required | Emergency exit by pressing the red push button | Resetting by pulling on the latched button | In removed condition, the guard device is protected against unintentional closing |
|---|

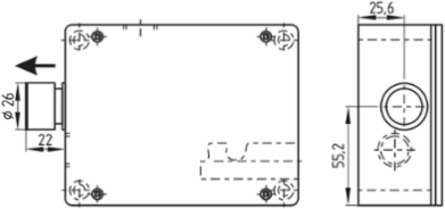

Mechanical data - Dimensions
| Length of sensor | 46.5 mm |
|---|---|
| Height of sensor | 100 mm |
| Width of sensor | 152 mm |
|---|
Ambient conditions - Insulation values
| Rated insulation voltage U | 250 VAC |
|---|
| Rated impulse withstand voltage U | 4 kV |
|---|
Safety classification - Safety outputs
| B | 2,000,000 Operations |
|---|
General data - Features
| Power to unlock | Yes |
|---|---|
| Number of actuating directions | 1 |
| Number of guard doors | 1 |
| Emergency exit | Yes |
|---|---|
| Number of safety contacts | 4 |
General data
| Standards | BG-GS-ET-19 | EN IEC 60947-5-1 |
|---|---|
| Enclosure material | Aluminium |
| Gross weight | 930 g |
| Working principle | electromechanical |
|---|---|
| Enclosure coating material | painted |
Safety classification
| Standards | EN ISO 13849-1 |
|---|
| Mission time | 20 Year(s) |
|---|
Other data
| Note (applications) | sliding safety guard | hinged safety guard |
|---|
Ambient conditions
| Degree of protection | IP67 |
|---|
| Ambient temperature | -25 ... +50 °C |
|---|
Mechanical data - Connection technique
| Termination | Screw terminals M20 x 1.5 |
|---|---|
| Cable section, maximum | 2 x 2.5 mm² |
| Cable section, minimum | 2 x 0.75 mm² |
|---|---|
| Note (Cable section) | All indications including the conductor ferrules. |
Mechanical data
| Mechanical life, minimum | 1,000,000 Operations |
|---|---|
| Latching force, minimum | 150 N |
| Positive break travel | 5 mm |
| Actuating speed, maximum | 0.2 m/s |
| Holding force F | 3,500 N |
|---|---|
| Latching force, maximum | 400 N |
| Positive break force, minimum | 15 N |
Approvals - Standards
| Certificates | BG | cULus | CCC |
|---|
