Schmersal 101186203 AZM 415 Solenoid Interlock, 130 mm x 100 mm x 46.5 mm, 24 VAC/DC
- MPN: 101186203
- PPN: SCM-101186203
CAD
$1211.54
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

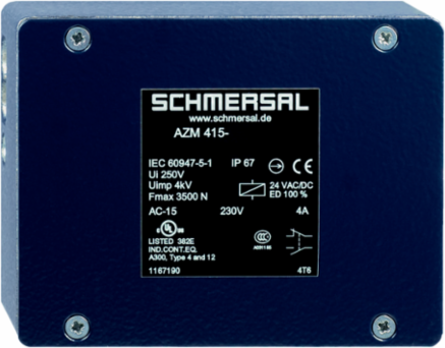

AZM 415 Solenoid Interlock, 130 mm x 100 mm x 46.5 mm, 24 VAC/DC

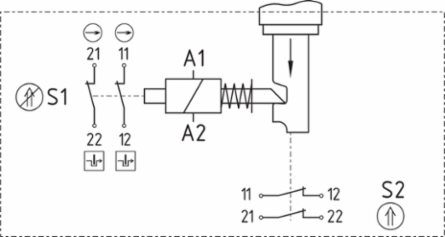

Features
- Adjustable ball latch to 400 N
- 2 switches in one enclosure
- Problem-free opening of stressed doors by means of bell-crank system
- Ex version available
- 130 mm x 100 mm x 46,5 mm
- Metal enclosure
- Interlock with protection against incorrect locking.
- Robust design
- Long life
- 2 cable entries M 20 x 1.5
- Cut clamp termination
Documentation & Downloads
Specifications
Electrical data
- Thermal test current
- 6 A
- Utilisation category AC-15
- 230 VAC
- Utilisation category DC-13
- 24 VDC
- Electrical power consumption, maximum
- 10 W
- Switching principle
- Slow action
Rated control voltage24 VAC/DC
Utilisation category AC-154 A
Utilisation category DC-131 A
Switching elementOpener (NC)
Material of the contacts, electricalSilver

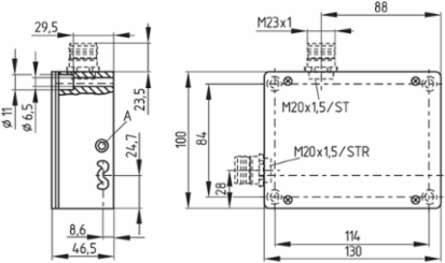

Mechanical data - Dimensions
- Length of sensor
- 46.5 mm
- Height of sensor
- 100 mm
Width of sensor130 mm
Ambient conditions - Insulation values
- Rated insulation voltage U
- 250 VAC
Rated impulse withstand voltage U4 kV
Safety classification - Safety outputs
- B
- 2,000,000 Operations
General data - Features
- Power to unlock
- Yes
- Number of safety contacts
- 4
Number of actuating directions1
Number of guard doors1
General data
- Standards
- BG-GS-ET-19 | EN IEC 60947-5-1
- Enclosure material
- Aluminium
- Gross weight
- 930 g
Working principleelectromechanical
Enclosure coating materialpainted
Safety classification
- Standards
- EN ISO 13849-1
Mission time20 Year(s)
Other data
- Note (applications)
- sliding safety guard | hinged safety guard
Ambient conditions
- Degree of protection
- IP67
Ambient temperature-25 ... +50 °C
Mechanical data - Connection technique
- Termination
- Screw terminals M20 x 1.5
- Cable section, maximum
- 2 x 2.5 mm²
Cable section, minimum2 x 0.75 mm²
Note (Cable section)All indications including the conductor ferrules.
Mechanical data
- Mechanical life, minimum
- 1,000,000 Operations
- Latching force, minimum
- 150 N
- Positive break travel
- 5 mm
- Actuating speed, maximum
- 0.2 m/s
Holding force F3,500 N
Latching force, maximum400 N
Positive break force, minimum15 N
Approvals - Standards
- Certificates
- BG | cULus | CCC
