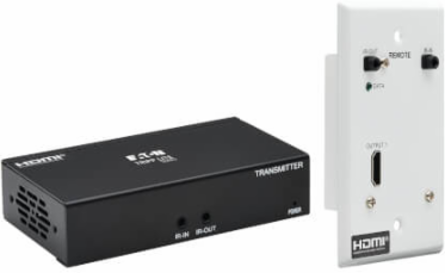

Tripp Lite B127A1A1BHFH HDMI over Cat6 Extender Kit, Box Transmitter/Wall Plate Receiver, 4K 60 Hz, 4:4:4, IR, PoC, HDR, HDCP 2.2, 230 ft., TAA
- MPN: B127A1A1BHFH
- UPC: 037332264008
- PPN: TRP-B127A-1A1-BHFH
CAD
$264.43
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
HDMI over Cat6 Extender Kit, Box Transmitter/Wall Plate Receiver, 4K 60 Hz, 4:4:4, IR, PoC, HDR, HDCP 2.2, 230 ft., TAA
Features

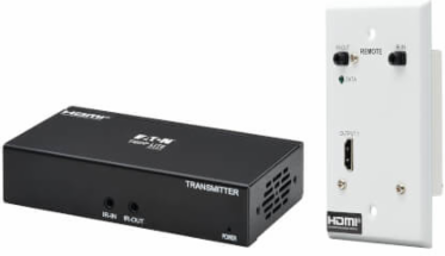

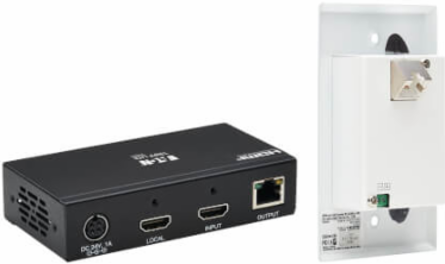

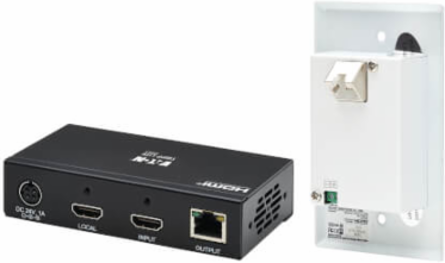

- Includes box transmitter and wall plate receiver

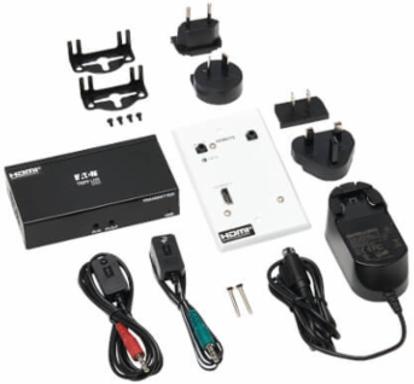

- External power supply (Input: 100-240V, 50/60 Hz, 0.6A; Output: 24V 1A); includes 4 international plug adapters (North America, Europe, U.K. and Australia)

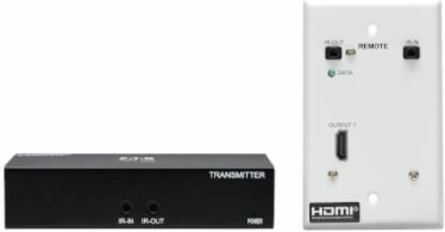

- IR-In cable and IR-Out cable included
- Mounting hardware included
Documentation & Downloads
Specifications
Dimensions

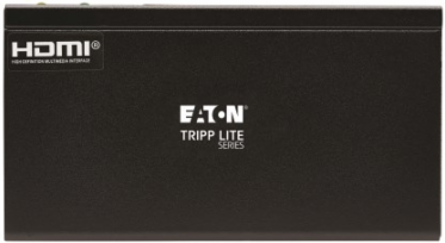

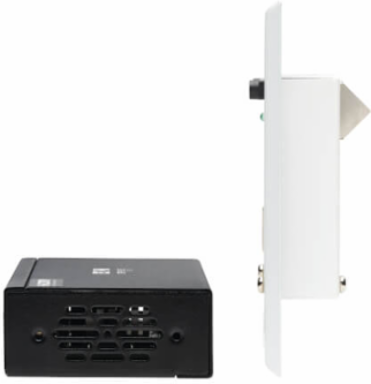

- Transmitter Unit Dimensions
- 2.7 x 11.5 x 6.24 in
Receiver Unit Dimensions11.5 x 7 x 3.382 in
Material
- Material
- Metal
- Form Factor
- Box; Wall Plate
ColorBlack; White
Compliance
- Product Warranty
- 1-year limited warranty
Reference
- Product Type
- Extender Kit
Recommended Cabling24AWG Cat6
Performance
- Max Supported Video Resolution
- 3840 x 2160 @ 60Hz
- Max Supported Color Depth
- 36-bit Deep Color
- Audio Specification
- HDMI outputs support passthrough audio LPCM 2.0/5.1/7.1
- Technology
- HDMI; Cat6; IR; PoC
- Video Output
- HDMI (Female)
- Number of Displays
- 1
- AC Power Adapter Input
- 100-240V / 50/60Hz / 0.6A
- Power Source
- Transmitter end only (Included)
- Operating Temperature Range
- 32° to 104°F (0° to 40°C)
- Relative Humidity
- 0-85% non-condensing
Chroma Subsampling4:4:4
Transmission Distance230 ft
HDCP Specification1.4; 2.2

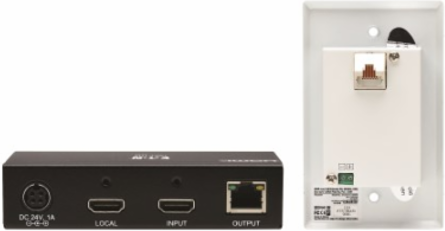

Video InputHDMI (Female)
Number of Monitors Supported2
Daisy-chainableNo
AC Power Adapter Output24V / 1A
Receiver Power SourcePower Over Cable
Storage Temperature Range5° to 122°F (-15° to 50°C)
