Tripp Lite B127A111BHTH HDMI over Cat6 Extender Kit, Transmitter and Receiver with Repeater, 4K 60Hz, 4:4:4, IR, HDR, PoC, 230 ft., TAA
- MPN: B127A111BHTH
- UPC: 037332258618
- PPN: TRP-B127A-111-BHTH
CAD
$432.11
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description

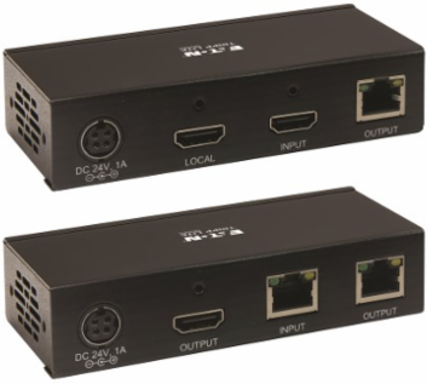

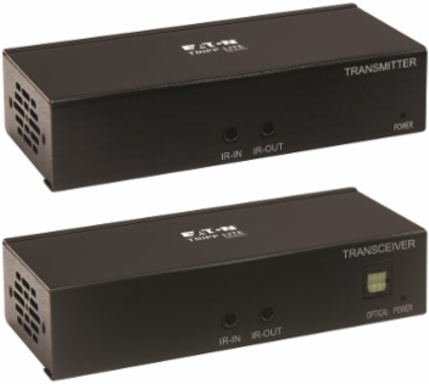

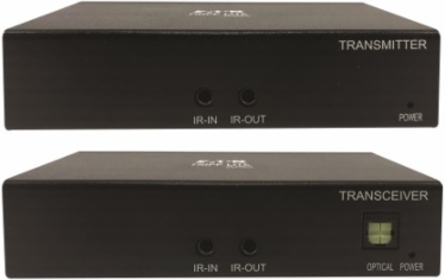

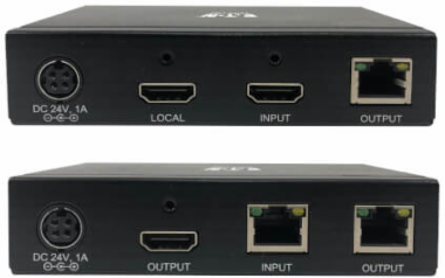

HDMI over Cat6 Extender Kit, Transmitter and Receiver with Repeater, 4K 60Hz, 4:4:4, IR, HDR, PoC, 230 ft., TAA
Features

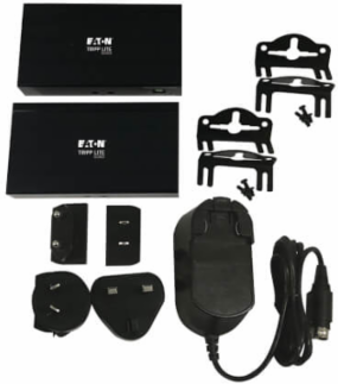

- Includes transmitter and transceiver units
- External power supply (Input: 100-240V, 50/60 Hz, 0.6A; Output: 24V 1A); includes 4 international plug adapters (North America, Europe, U.K. and Australia)
- IR-In cable and IR-Out cable included
- Mounting hardware included
Documentation & Downloads
Specifications
Dimensions
- Transmitter Unit Dimensions
- 11.5 x 6.25 x 2.69 in
Receiver Unit Dimensions11.5 x 6.25 x 2.69 in
Material
- Material
- Metal
- Form Factor
- Box; Wall-mount
ColorBlack
Compliance
- Product Warranty
- 1-year limited warranty
Reference
- Product Type
- Extender Kit
Recommended CablingSolid Wire Cat6
Performance
- Max Supported Video Resolution
- 3840 x 2160 (4K @ 60Hz)
- Chroma Subsampling
- 4:4:4
- Transmission Distance
- 230 ft
- Audio Specification
- Pass-through audio (LPCM 2.0/5.1/7.1)
- Technology
- HDMI; Cat6; PoC; IR
- Video Output
- HDMI (Female)
- AC Power Adapter Input
- 100-240V / 50/60Hz / 0.6A
- Power Source
- Transmitter or Receiver (Included)
- Storage Temperature Range
- 5° to 122°F (-15° to 50°C)
HDR SupportYes
Max Supported Color Depth36-bit Deep Color
Audio OutputToslink; HDMI
HDCP Specification1.4; 2.2
Video InputHDMI (Female)
Number of Displays1
AC Power Adapter Output24V / 1A
Operating Temperature Range32° to 104°F (0° to 40°C)
Relative Humidity0-85% non-condensing
