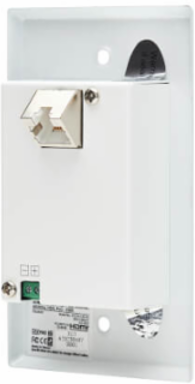

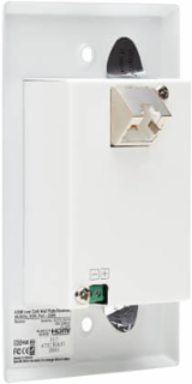

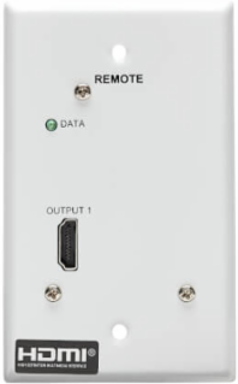

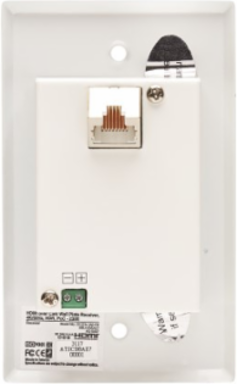

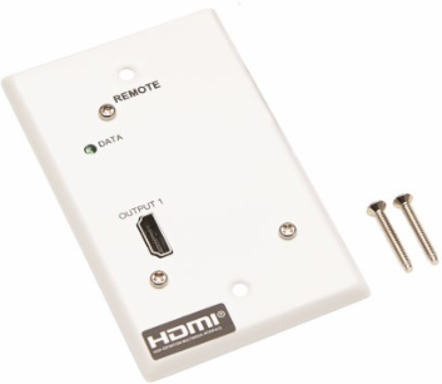

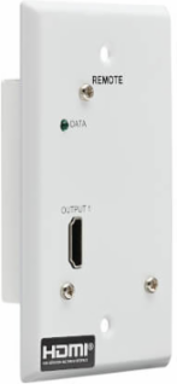

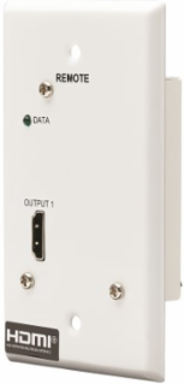

Tripp Lite B127A1A0FH 1-Port HDMI over Cat6 Receiver, Wall Plate, 4K 60 Hz, HDR, 4:4:4, PoC, HDCP 2.2, 230 ft, TAA
- MPN: B127A1A0FH
- UPC: 037332264145
- PPN: TRP-B127A-1A0-FH
CAD
$146.90
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
1-Port HDMI over Cat6 Receiver, Wall Plate - 4K 60 Hz, HDR, 4:4:4, PoC, HDCP 2.2, 230 ft. (70.1 m), TAA
Features
- 1-Port HDMI over Cat6 wall plate receiver
- Mounting screws included
Documentation & Downloads
Specifications
Dimensions
| Unit Dimensions | 4.528 x 2.756 x 1.331 in |
|---|
Material
| Material | Metal |
|---|---|
| Form Factor | Wall Plate |
| Color | White |
|---|
Compliance
| Product Warranty | 1-year limited warranty |
|---|
Reference
| Product Type | Receiver |
|---|
| Recommended Cabling | 24AWG Cat6 |
|---|
Performance
| Max Supported Video Resolution | 3840 x 2160 @ 60Hz |
|---|---|
| Max Supported Color Depth | 36-bit Deep Color |
| HDCP Specification | 1.4; 2.2 |
| Video Input | RJ45 (Female) |
| Number of Monitors Supported | 1 |
| Audio Ports | HDMI (Female) |
| Operating Temperature Range | 32° to 104°F (0° to 40°C) |
| Relative Humidity | 0-85% non-condensing |
| Chroma Subsampling | 4:4:4 |
|---|---|
| Transmission Distance | 230 ft; 400 ft with B127A-010-H |
| Technology | HDMI; Cat6; PoC |
| Video Output | HDMI (Female) |
| Daisy-chainable | No |
| Receiver Power Source | AC Adapter (Optional); Power Over Cable |
| Storage Temperature Range | 5° to 122°F (-15° to 50°C) |
