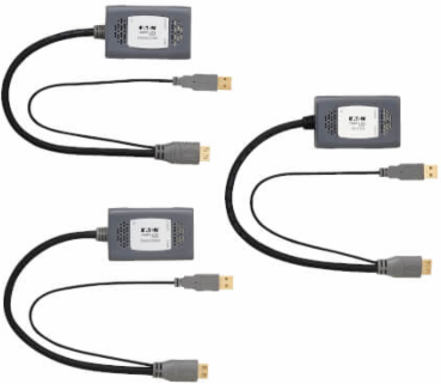

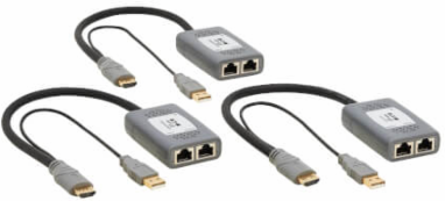

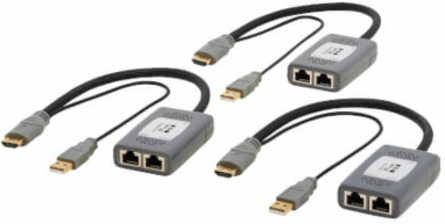

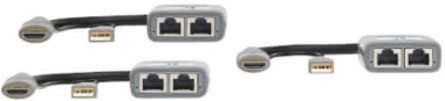

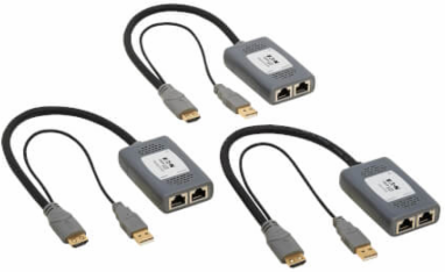

Tripp Lite B127U002PHPH2 2-Port HDMI over Cat6 Extender Kit, Pigtail TX/2x Receivers, 4K 60 Hz, HDR, 4:4:4, 230 ft, TAA
- MPN: B127U002PHPH2
- UPC: 037332281258
- PPN: TRP-B127U-002-PHPH2
CAD
$330.69
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
2-Port HDMI over Cat6 Extender Kit, Pigtail Transmitter/2x Receivers, 4K 60 Hz, HDR, 4:4:4, 230 ft. (70.1 m), TAA
Features
- Pigtail transmitter/splitter and two pigtail receivers included
- Daisy-chainable for extended distance installations
Documentation & Downloads
Specifications
Material
- Housing Material
- Plastic
- Color
- Black
Cable JacketPVC
Reference
- Warranty
- 1-year limited
Performance
- Color Depth
- 36-bit Deep Color
- HDR Support
- Yes
- Technology
- Cat6; HDMI; USB
- Video Output
- HDMI (Male)
- HDCP
- 1.4; 2.2
- Power Source
- USB
- Operating Temperature
- 32° to 104°F (0° to 40°C)
- Relative Humidity
- 0–85% non-condensing
Chroma Subsampling4:2:0; 4:4:0; 4:4:4
Transmission Distance230 ft (70 m)
Video InputHDMI (Male)
Monitors Supported2
Daisy-chainableYes
Recommended Cable24 AWG Solid Wire Cat6
Storage Temperature5° to 122°F (-15° to 50°C)
Dimensions
- Form Factor
- Pigtail
- Cable Outer Diameter
- 7.3 mm
Wire Gauge28 AWG
