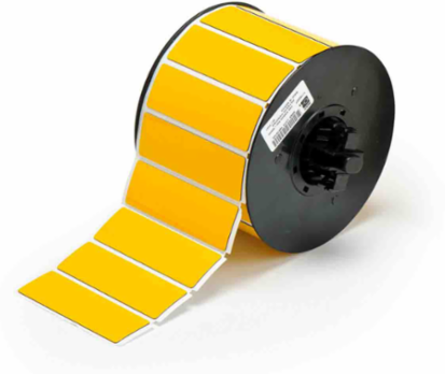

Brady B30EP-176-593-YL Raised Panel Polyester Labels 1 in H x 3 in W, Roll of 300, Yellow
Brady B30EP-176-593-YL Raised Panel Polyester Labels 1 in H x 3 in W, Roll of 300, Yellow
- MPN: B30EP-176-593-YL
- UPC: 754473211288
- PPN: BRD-B30EP-176-593-YL
- UNSPSC: 55121612
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$594.08/ EA
Description

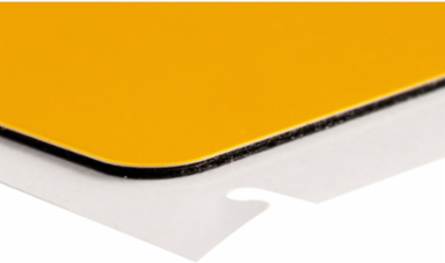

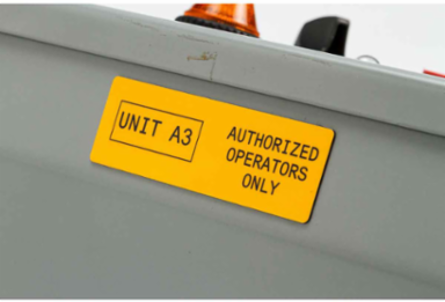

Raised panel Adhesive-Taped Polyester (B-593) labels are designed for patch panel identification, external push-buttons, switches and internal connection points.
Features
- Can be used as rating and serial plates using alphanumerics that require nameplate quality
- Aggressive adhesive and solvent resistance makes them a great replacement for engraved tags
- UL approved
- Service temperature of -4 to 212° F (-20 to 100° C)
Specifications
Regulatory Information
- Contains CA PROP 65 Substance
- Yes Contains-Label not req.
- Contains Heavy Metal(s)
- Unavailable
- EU RoHS Compliance
- Pass 2011/65/EU(Pass 2015/863)
- SDS Safety Data Sheet required
- No = MSDS/SDS is not required
Contains CA PROP 65 SubstanceNo
DOT Regulated ProductNo = not regulated by DOT
EU RoHS CompliantYes
Specifications
- Applications
- Electrical Labeling
- Color
- Yellow
- Corner Type
- Rounded Corners
- Enables Industry Compliance
- RoHS Compliant; UL Recognized
- For Use with Printer
- BBP®30 Label Printer; BBP®31 Sign and Label Printer; BBP®33 Label Printer; BBP®35 Multi-Color Sign and Label Printer; BBP®37 Color & Cut Sign and Label Printer; BradyPrinter i3300; BradyPrinter S3000; BradyPrinter S3100
- Manufacturer Part Number
- B30EP-176-593-YL
- Print Technology
- Thermal Transfer
- Printer Compatibility
- S3000; i3300; S3100; BBP30; BBP31; BBP33; BBP35; BBP37
- Quantity per Roll
- 300
- Recommended Ribbon
- B30-R6000
- Shape
- Rectangle
- Suggested Ribbon Series
- R4400; R6000 Halogen Free
- Total Quantity
- 300
- Adhesive Type
- Permanent Acrylic - Foam Backed
- Indoor or Outdoor Use
- Outdoor Use
- Material
- Polyester
- Resistance Properties
- Abrasion-Resistant; Chemical-Resistant; Corrosion-Resistant; Humidity-Resistant
- Average Outdoor Durability
- 5 Years
- Dimensions (Metric)
- 76.20 mm W x 25.40 mm H
- Height (in/ft/yd)
- 1 in
- Label/Tape Size (in/ft/yd)
- 1 in H x 3 in W
- Maximum Service Temperature °F
- 212 °F
- Minimum Service Temperature °F
- -4 °F
- Size - Width (mm)
- 76.20 mm
- Thickness (mm/cm/m)
- 0.65 mm
- Vertical Repeat (mm)
- 31.80 mm
- Width (in/ft/yd)
- 3 in
Brand NameBrady®
Compatible Surface TypesHigh Surface Energy
DiagramIcon 3 (triangle)
FinishGloss
Label/Media FormatRoll
Primary Noun, Basic FunctionLabel
Printer and Label ApplicationsElectrical; General Identification; Inspection Repair; Rating & Name Plates
Printer Compatibility (Print)BBP35; BBP37; i3300; S3000; S3100
Quantity per Row1
Ribbon SeriesB30-R6000HF
Software CompatibilityBrady Workstation, LabelMark, MarkWare
Total Qty per Pack300 Label(s) / Box
Trade NameB30
Brady Material NumberB-593
Label PropertiesHeat Resistant Labels; Permanent Adhesive Labels
Material PropertiesRaised
SAP B-NumberB-593
Dimensions1 in H x 3 in W
Dimensions 21 in H x 3 in W
Height (mm/cm/m)25.40 mm
Maximum Service Temperature °C100 °C
Minimum Service Temperature °C-20 °C
Sign Size-General1 in x 3 in
Thickness (in/ft/yd)0.0256 in
Vertical Repeat1.25 in
Web Width (mm/cm/m)82.60 mm
Width (mm/cm/m)76.2 mm
