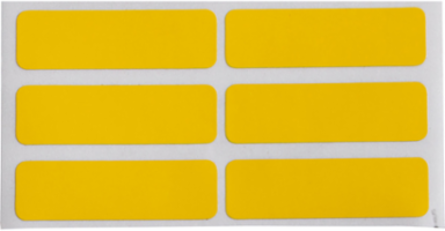

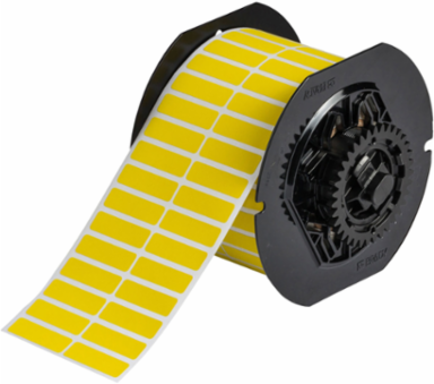

Brady B33-29-472YL Flame Retardant Wire Wraps 0.375 Inch H x 1.25 Inch W, Yellow
- MPN: B33-29-472YL
- UPC: 754473911416
- PPN: BRD-B33-29-472YL
- UNSPSC: 55121612
CAD
$475.99
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description

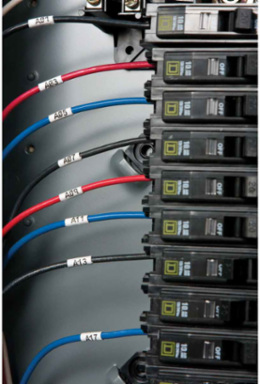

Flame Retardant Wire Wraps (B-472) are ideal for cable and wire bundle applications and label applications where self-extinguishing properties are required.
Features
- Polyimide material specifically designed to self-extinguish and prevent flames from propagating
- Matte finish material with permanent acrylic adhesive can be thermal transfer printed or dot matrix printed
- Service temperature of -40°F to 212°F (-40°C to 100°C)
Documentation & Downloads
Specifications
Key Specifications
| Applications | Electrical Labeling; Wire and Cable Labeling |
|---|---|
| Color | Yellow |
| Diagram | Icon 26 (hexagon) |
| For Use with Printer | BBP®33 Label Printer; BradyPrinter i3300 |
| Label/Media Format | Roll |
| Primary Noun, Basic Function | Label |
| Printer and Label Applications | Wire & Cable |
| Printer Compatibility (Print) | i3300 |
| Quantity per Row | 2 |
| Ribbon Series | B30-R4300 |
| Software | LabelMark |
| Suggested Ribbon Series | R6000 Halogen Free |
| Total Quantity | 5000 |
| Adhesive Type | Permanent Acrylic |
| Label Properties | Self Laminating Labels & Wraps |
| Material Properties | Flame-retardant |
| Average Outdoor Durability | 1 Year |
| Dimensions (Metric) | 31.75 mm W x 9.53 mm H |
| Height (in/ft/yd) | 0.375 in |
| Horizontal Repeat (mm) | 33.00 mm |
| Maximum Service Temperature °C | 100 °C |
| Minimum Service Temperature °C | -70 °C |
| Sign Size-General | 0.375 in x 1.25 in |
| Thickness (in/ft/yd) | 0.0032 in |
| Vertical Repeat | 0.475 in |
| Web Width (in/ft/yd) | 2.75 in |
| Width (in/ft/yd) | 1.25 in |
| Brand Name | Brady® |
|---|---|
| Compatible Surface Types | General |
| Finish | Matte |
| Industry | Electrical; Voice & data communication |
| Manufacturer Part Number | B33-29-472YL |
| Print Technology | Thermal Transfer |
| Printer Compatibility | i3300; BBP33 |
| Quantity per Roll | 5000 |
| Recommended Ribbon | B30-R6000 |
| Shape | Rectangle |
| Software Compatibility | Labelmark™ Software |
| Total Qty per Pack | 5000 Label(s) / Box |
| Trade Name | UltraTemp® |
| Brady Material Number | B-472 |
| Material | Polyimide |
| SAP B-Number | B-472 |
| Dimensions | 0.375 in H x 1.25 in W |
| Dimensions 2 | 0.375 in H x 1.25 in W |
| Height (mm/cm/m) | 9.53 mm |
| Label/Tape Size (in/ft/yd) | 0.375 in H x 1.25 in W |
| Maximum Service Temperature °F | 212 °F |
| Minimum Service Temperature °F | -94 °F |
| Size - Width (mm) | 31.75 mm |
| Thickness (mm/cm/m) | 0.081 mm |
| Vertical Repeat (mm) | 12.10 mm |
| Web Width (mm/cm/m) | 69.85 mm |
| Width (mm/cm/m) | 31.75 mm |
Regulatory Information
| Contains CA PROP 65 Substance | Yes Contains-Label not req. |
|---|---|
| DOT Regulated Product | No = not regulated by DOT |
| EU RoHS Compliant | Yes |
| Contains CA PROP 65 Substance | No |
|---|---|
| EU RoHS Compliance | Pass 2011/65/EU(Pass 2015/863) |
| SDS Safety Data Sheet required | No = MSDS/SDS is not required |
