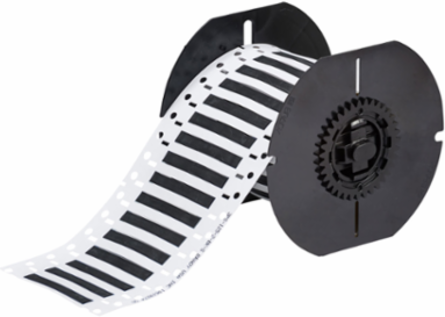

Brady B33D-125-2-342BK PermaSleeve Heat-Shrink Wire Marking Sleeves 0.125 Inch Dia x 2 Inch W, Black
- MPN: B33D-125-2-342BK
- UPC: 662820967613
- PPN: BRD-B33D-125-2-342BK
- UNSPSC: 55121612
CAD
$1072.90
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
PermaSleeve® PS Heat-Shrink Polyolefin (B-342) wire marking sleeves combine speed, ease of use, and permanence to create long-lasting, high quality identification.
Features
- 3:1 heat shrinkable sleeve fit snugly around wires for maximum insulation protection and permanent identification
- Fade-resistant and smudge-proof for superior aesthetic appearance
- Cold resistant and flame-retardant with an operating temperature of -67°F to 275°F (-55°C to 135°C)
- Meets SAE-AMS-DTL-23053/5C (Class 1), SAE-AS-81531, MIL-STD-202;RoHS Compliant;and UL Recognized
Documentation & Downloads
Specifications
Key Specifications
- Applications
- Electrical Labeling; Wire and Cable Labeling
- Color
- Black
- Enables Industry Compliance
- ASTM D 2671; ASTM E 162; ASTM E 662; ASTM G 155; MIL-STD-202; SAE-AMS-DTL-23053; SAE-AS-81531; UL Recognized
- For Use with Printer
- BBP®33 Label Printer; BradyPrinter i3300
- Label/Media Format
- Roll
- Primary Noun, Basic Function
- Sleeve
- Printable Sides
- Double-Side Printable
- Printer Compatibility
- i3300; BBP33
- Quantity per Roll
- 1000
- Recommended Ribbon
- B30-R4400-WT
- Shrink Ratio
- 3:1
- Suggested Ribbon Series
- R4502S; R6700
- Total Quantity
- 1000
- Brady Material Number
- B-342
- Material
- Heat-shrink Polyolefin
- Resistance Properties
- Chemical-Resistant; Corrosion-Resistant; Humidity-Resistant; Smear-Resistant; UV-Resistant; Weather-Resistant
- Diameter as Supplied (in/ft/yd)
- 0.125 in
- Dimensions
- 0.235 in H
- Dimensions 2
- 0.235 in H
- Height (mm/cm/m)
- 6.00 mm
- Maximum Service Temperature °F
- 275 °F
- Maximum Wire Diameter (mm/cm/m)
- 2.79 mm
- Minimum Service Temperature °C
- -55 °C
- Minimum Wire Diameter (in/ft/yd)
- 0.046 in
- Minimum Wire Gauge
- 22 AWG
- Recovered Diameter (mm/cm/m)
- 1.2 mm
- Roll Width (mm/cm/m)
- 50.8 mm
- Sleeve Size (in/ft/yd)
- 0.125 in Dia x 2 in W
- Sleeve Width (in/ft/yd)
- 2 in
- Vertical Repeat
- 0.5 in
- Wire Diameter Range
- 0.046 in to 0.11 in
Brand NameBrady®
DiagramIcon 14 (v)
FinishMatte
IndustryAerospace; Electrical; Voice & data communication
Manufacturer Part NumberB33D-125-2-342BK
Print TechnologyThermal Transfer
Printer and Label ApplicationsWire & Cable
Printer Compatibility (Print)i3300
Quantity per Row1
Ribbon SeriesB30-R4500-SV
Software CompatibilityBrady Workstation, LabelMark, MarkWare
Total Qty per Pack1000 Sleeve(s) / Box
Trade NameBBP®33 PermaSleeve®
Label PropertiesHeat Shrink Sleeves
Material PropertiesFlame-retardant; Heat-shrinkable
SAP B-NumberB-342
Diameter as Supplied (mm/cm/m)3.2 mm
Dimensions (Metric)50.80 mm W x 6.00 mm H
Height (in/ft/yd)0.235 in
Maximum Service Temperature °C135 °C
Maximum Wire Diameter (in/ft/yd)0.11 in
Maximum Wire Gauge16 AWG
Minimum Service Temperature °F-67 °F
Minimum Wire Diameter (mm/cm/m)1.17 mm
Recovered Diameter (in/ft/yd)0.046 in
Roll Width (in/ft/yd)2 in
Size - Width (mm)50.80 mm
Sleeve Size (mm/cm/m)3.2 mm Dia x 50.8 mm W
Sleeve Width (mm/cm/m)50.8 mm
Web Width (mm/cm/m)89.00 mm
Wire Gauge Range22 AWG to 16 AWG
Regulatory Information
- CA Prop 65 Labeled
- Yes
- Contains CA PROP 65 Substance
- Yes Contains-Label required
- Contains CA PROP 65 Warning Type
- Cancer
- Contains Heavy Metal(s)
- Unavailable
- EU RoHS Compliance
- Pass 2011/65/EU(Pass 2015/863)
- SDS Safety Data Sheet required
- No = MSDS/SDS is not required
CA Prop 65 Label WarningWARNING: Cancer - www.P65warnings.ca.gov
Contains CA PROP 65 SubstanceYes
Contains CA Prop 65 Cancer Causing ChemicalAntimony Trioxide
DOT Regulated ProductNo = not regulated by DOT
EU RoHS CompliantYes
