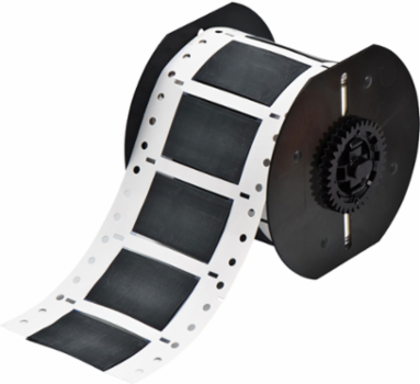

Brady B33D-750-2-342BK PermaSleeve Heat-Shrink Wire Marking Sleeves 0.75 Inch Dia x 2 Inch W Black
- MPN: B33D-750-2-342BK
- UPC: 662820967699
- PPN: BRD-B33D-750-2-342BK
- UNSPSC: 55121612
CAD
$695.99
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description

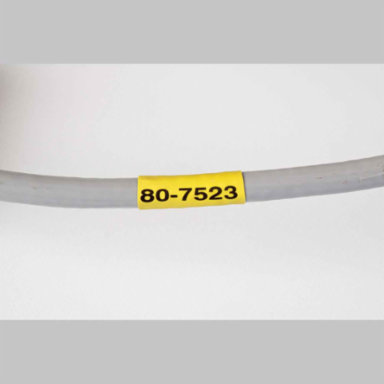

PermaSleeve® PS Heat-Shrink Polyolefin (B-342) wire marking sleeves combine speed, ease of use, and permanence to create long-lasting, high quality identification.
Features
- 3:1 heat shrinkable sleeve fit snugly around wires for maximum insulation protection and permanent identification
- Fade-resistant and smudge-proof for superior aesthetic appearance
- Cold resistant and flame-retardant with an operating temperature of -67°F to 275°F (-55°C to 135°C)
- Meets SAE-AMS-DTL-23053/5C (Class 1), SAE-AS-81531, MIL-STD-202;RoHS Compliant;and UL Recognized
Documentation & Downloads
Specifications
Key Specifications
| Applications | Electrical Labeling; Wire and Cable Labeling |
|---|---|
| Color | Black |
| Enables Industry Compliance | ASTM D 2671; ASTM E 162; ASTM E 662; ASTM G 155; MIL-STD-202; SAE-AMS-DTL-23053; SAE-AS-81531; UL Recognized |
| For Use with Printer | BBP®33 Label Printer; BradyPrinter i3300 |
| Label/Media Format | Roll |
| Primary Noun, Basic Function | Sleeve |
| Printable Sides | Double-Side Printable |
| Printer Compatibility | i3300; BBP33 |
| Quantity per Roll | 250 |
| Recommended Ribbon | B30-R4400-WT |
| Shrink Ratio | 3:1 |
| Suggested Ribbon Series | R4502S; R6700 |
| Total Quantity | 250 |
| Brady Material Number | B-342 |
| Material | Heat-shrink Polyolefin |
| Resistance Properties | Chemical-Resistant; Corrosion-Resistant; Humidity-Resistant; Smear-Resistant; UV-Resistant; Weather-Resistant |
| Diameter as Supplied (in/ft/yd) | 0.75 in |
| Dimensions | 1.25 in H |
| Dimensions 2 | 1.25 in H |
| Height (mm/cm/m) | 31.80 mm |
| Maximum Service Temperature °F | 275 °F |
| Maximum Wire Diameter (mm/cm/m) | 17.78 mm |
| Minimum Service Temperature °C | -55 °C |
| Minimum Wire Diameter (in/ft/yd) | 0.25 in |
| Minimum Wire Gauge | 6 AWG |
| Recovered Diameter (mm/cm/m) | 6.4 mm |
| Roll Width (mm/cm/m) | 50.8 mm |
| Sleeve Size (in/ft/yd) | 0.75 in Dia x 2 in W |
| Sleeve Width (in/ft/yd) | 2 in |
| Vertical Repeat | 1.625 in |
| Wire Diameter Range | 0.25 in to 0.7 in |
| Brand Name | Brady® |
|---|---|
| Diagram | Icon 14 (v) |
| Finish | Matte |
| Industry | Aerospace; Electrical; Voice & data communication |
| Manufacturer Part Number | B33D-750-2-342BK |
| Print Technology | Thermal Transfer |
| Printer and Label Applications | Wire & Cable |
| Printer Compatibility (Print) | i3300 |
| Quantity per Row | 1 |
| Ribbon Series | B30-R4500-SV |
| Software Compatibility | Brady Workstation, LabelMark, MarkWare |
| Total Qty per Pack | 250 Sleeve(s) / Box |
| Trade Name | BBP®33 PermaSleeve® |
| Label Properties | Heat Shrink Sleeves |
| Material Properties | Flame-retardant; Heat-shrinkable |
| SAP B-Number | B-342 |
| Diameter as Supplied (mm/cm/m) | 19.1 mm |
| Dimensions (Metric) | 50.80 mm W x 31.80 mm H |
| Height (in/ft/yd) | 1.25 in |
| Maximum Service Temperature °C | 135 °C |
| Maximum Wire Diameter (in/ft/yd) | 0.7 in |
| Maximum Wire Gauge | 4/0 AWG |
| Minimum Service Temperature °F | -67 °F |
| Minimum Wire Diameter (mm/cm/m) | 6.35 mm |
| Recovered Diameter (in/ft/yd) | 0.25 in |
| Roll Width (in/ft/yd) | 2 in |
| Size - Width (mm) | 50.80 mm |
| Sleeve Size (mm/cm/m) | 19.1 mm Dia x 50.8 mm W |
| Sleeve Width (mm/cm/m) | 50.8 mm |
| Web Width (mm/cm/m) | 89.00 mm |
| Wire Gauge Range | 6 AWG to 4/0 AWG |
Regulatory Information
| CA Prop 65 Labeled | Yes |
|---|---|
| Contains CA PROP 65 Substance | Yes Contains-Label required |
| Contains CA PROP 65 Warning Type | Cancer |
| Contains Heavy Metal(s) | Unavailable |
| EU RoHS Compliance | Pass 2011/65/EU(Pass 2015/863) |
| SDS Safety Data Sheet required | No = MSDS/SDS is not required |
| CA Prop 65 Label Warning | WARNING: Cancer - www.P65warnings.ca.gov |
|---|---|
| Contains CA PROP 65 Substance | Yes |
| Contains CA Prop 65 Cancer Causing Chemical | Antimony Trioxide |
| DOT Regulated Product | No = not regulated by DOT |
| EU RoHS Compliant | Yes |
