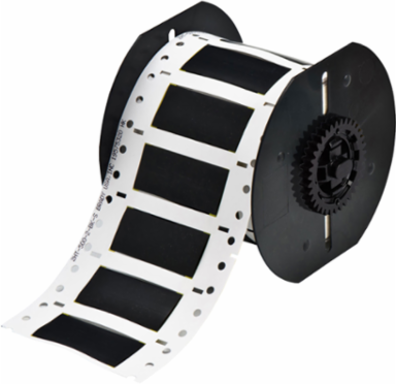

Brady B33D-500-2-345BK PermaSleeve High Temp PVDF Wire Marking Sleeves, 0.5 Inch Dia x 2 Inch W, Black

MPN: B33D-500-2-345BK
UPC: 662820968221
PPN: BRD-B33D-500-2-345BK
UNSPSC: 55121612

$2399.00

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

PermaSleeve® Heat-Shrink Polyvinylidene Fluoride (B-345) wire marker sleeves are specifically designed for high temperature and low vacuum outgassing applications.

Features

2:1 heat shrinkable sleeves are fade-resistant and flame-retardant, and meet the requirements of NASA Vacuum Outgassing specification SP-R-0022A
Sleeves can be used in applications that require greater resistance to harsh chemicals such as fuels, lubricants and high power cleaning solvents
Meets SAE-AMS-DTL-23053/18 (Class 2), SAE-AS-81531, MIL-STD-202, Tested per ASTM E 162, ASTM E 662;RoHS Compliant;and UL Recognized
Operating temperature range of -67 to 437° F (-55 to 225° C)

Documentation & Downloads

Specifications

Key Specifications

Applications	Electrical Labeling; Temperature Indicating Labeling; Wire and Cable Labeling
Color	Black
Enables Industry Compliance	ASTM D 2671; ASTM E 162; ASTM E 662; ASTM G 155; MIL-STD-202G; NASA SP-R-0022A; SAE-AMS-DTL-23053; SAE-AS-81531
For Use with Printer	BBP®33 Label Printer; BradyPrinter i3300
Label/Media Format	Roll
Primary Noun, Basic Function	Sleeve
Printable Sides	Double-Side Printable
Printer Compatibility	i3300; BBP33
Quantity per Roll	350
Recommended Ribbon	B30-R4400-WT
Shrink Ratio	2:1
Suggested Ribbon Series	R4400W; R6800
Total Quantity	350
Brady Material Number	B-345
Label Properties	Heat Shrink Sleeves
Material Properties	Flame-retardant; Heat-shrinkable
SAP B-Number	B-345
Diameter as Supplied (mm/cm/m)	12.7 mm
Dimensions (Metric)	50.80 mm W x 21.60 mm H
Height (in/ft/yd)	0.851 in
Maximum Service Temperature °C	225 °C
Maximum Wire Diameter (in/ft/yd)	0.45 in
Maximum Wire Gauge	1 AWG
Minimum Service Temperature °F	-67 °F
Minimum Wire Diameter (mm/cm/m)	6.35 mm
Recovered Diameter (in/ft/yd)	0.25 in
Roll Width (in/ft/yd)	2 in
Size - Width (mm)	50.80 mm
Sleeve Size (mm/cm/m)	12.7 mm Dia x 50.8 mm W
Sleeve Width (mm/cm/m)	50.8 mm
Web Width (mm/cm/m)	89.00 mm
Wire Gauge Range	6 AWG to 1 AWG

Brand Name	Brady®
Diagram	Icon 14 (v)
Finish	Matte
Industry	Aerospace; Electrical; Mass transit; Voice & data communication
Manufacturer Part Number	B33D-500-2-345BK
Print Technology	Thermal Transfer
Printer and Label Applications	Wire & Cable
Printer Compatibility (Print)	i3300
Quantity per Row	1
Ribbon Series	B30-R4500-SV
Software Compatibility	Brady Workstation, LabelMark, MarkWare
Total Qty per Pack	350 Sleeve(s) / Box
Trade Name	BBP®33 PermaSleeve®
Indoor or Outdoor Use	Outdoor Use
Material	High Temperature Heat-shrink Polyvinylidene Fluoride Sleeve
Resistance Properties	Chemical-Resistant; Corrosion-Resistant; High Temperature-Resistant; Humidity-Resistant; UV-Resistant; Weather-Resistant
Diameter as Supplied (in/ft/yd)	0.5 in
Dimensions	0.851 in H
Dimensions 2	0.851 in H
Height (mm/cm/m)	21.60 mm
Maximum Service Temperature °F	437 °F
Maximum Wire Diameter (mm/cm/m)	11.40 mm
Minimum Service Temperature °C	-55 °C
Minimum Wire Diameter (in/ft/yd)	0.25 in
Minimum Wire Gauge	6 AWG
Recovered Diameter (mm/cm/m)	6.4 mm
Roll Width (mm/cm/m)	50.8 mm
Sleeve Size (in/ft/yd)	0.5 in Dia x 2 in W
Sleeve Width (in/ft/yd)	2 in
Vertical Repeat	1.25 in
Wire Diameter Range	0.25 in to 0.45 in

Regulatory Information

Contains CA PROP 65 Substance	No - Does not contain
Contains Heavy Metal(s)	Unavailable
EU RoHS Compliance	Pass 2011/65/EU(Pass 2015/863)
SDS Safety Data Sheet required	No = MSDS/SDS is not required
