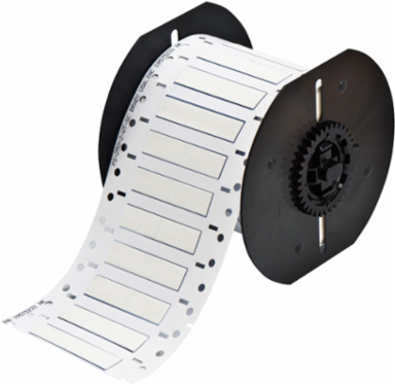

Brady B33-250-2-342-2 PermaSleeve Heat-Shrink Wire Marking Sleeves, 0.25 Inch Dia x 1 Inch W, White
Brady B33-250-2-342-2 PermaSleeve Heat-Shrink Wire Marking Sleeves, 0.25 Inch Dia x 1 Inch W, White
- MPN: B33-250-2-342-2
- UPC: 662820967859
- PPN: BRD-B33-250-2-342-2
- UNSPSC: 55121612
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$925.36/ EA
Description
PermaSleeve® PS Heat-Shrink Polyolefin (B-342) wire marking sleeves combine speed, ease of use, and permanence to create long-lasting, high quality identification.
Features
- 3:1 heat shrinkable sleeve fit snugly around wires for maximum insulation protection and permanent identification
- Fade-resistant and smudge-proof for superior aesthetic appearance
- Cold resistant and flame-retardant with an operating temperature of -67°F to 275°F (-55°C to 135°C)
- Meets SAE-AMS-DTL-23053/5C (Class 1), SAE-AS-81531, MIL-STD-202;RoHS Compliant;and UL Recognized
Specifications
Specifications
- Applications
- Electrical Labeling; Wire and Cable Labeling
- Color
- White
- Enables Industry Compliance
- ASTM D 2671; ASTM E 162; ASTM E 662; ASTM G 155; MIL-STD-202; SAE-AMS-DTL-23053; SAE-AS-81531; UL Recognized
- For Use with Printer
- BBP®33 Label Printer; BradyPrinter i3300
- Label/Media Format
- Roll
- Primary Noun, Basic Function
- Sleeve
- Printable Sides
- Single-Side Printable
- Printer Compatibility
- i3300; BBP33
- Quantity per Roll
- 1000
- Recommended Ribbon
- B30-R4300
- Shrink Ratio
- 3:1
- Software Compatibility
- Brady Workstation, LabelMark, MarkWare
- Total Qty per Pack
- 1000 Sleeve(s) / Box
- Trade Name
- BBP®33 PermaSleeve®
- Brady Material Number
- B-342
- Material
- Heat-shrink Polyolefin
- Resistance Properties
- Chemical-Resistant; Corrosion-Resistant; Humidity-Resistant; Smear-Resistant; UV-Resistant; Weather-Resistant
- Diameter as Supplied (in/ft/yd)
- 0.25 in
- Dimensions
- 0.439 in H
- Dimensions 2
- 0.439 in H
- Height (mm/cm/m)
- 11.15 mm
- Maximum Service Temperature °F
- 275 °F
- Maximum Wire Diameter (mm/cm/m)
- 5.46 mm
- Minimum Service Temperature °C
- -55 °C
- Minimum Wire Diameter (in/ft/yd)
- 0.094 in
- Minimum Wire Gauge
- 16 AWG
- Recovered Diameter (mm/cm/m)
- 2.4 mm
- Roll Width (mm/cm/m)
- 50.8 mm
- Sleeve Size (in/ft/yd)
- 0.25 in Dia x 1 in W
- Sleeve Width (in/ft/yd)
- 1 in
- Vertical Repeat
- 0.75 in
- Wire Diameter Range
- 0.094 in to 0.215 in
Brand NameBrady®
DiagramIcon 14 (v)
FinishMatte
IndustryAerospace; Electrical; Voice & data communication
Manufacturer Part NumberB33-250-2-342-2
Print TechnologyThermal Transfer
Printer and Label ApplicationsWire & Cable
Printer Compatibility (Print)i3300
Quantity per Row2
Ribbon SeriesB30-R4300
Sleeve SlitsYes
Suggested Ribbon SeriesR4300; R4502S; R5000; R6600; R6700
Total Quantity1000
Adhesive (Y/N)No
Label PropertiesHeat Shrink Sleeves
Material PropertiesFlame-retardant; Heat-shrinkable
SAP B-NumberB-342
Diameter as Supplied (mm/cm/m)6.4 mm
Dimensions (Metric)25.40 mm W x 11.15 mm H
Height (in/ft/yd)0.439 in
Maximum Service Temperature °C135 °C
Maximum Wire Diameter (in/ft/yd)0.215 in
Maximum Wire Gauge8 AWG
Minimum Service Temperature °F-67 °F
Minimum Wire Diameter (mm/cm/m)2.39 mm
Recovered Diameter (in/ft/yd)0.094 in
Roll Width (in/ft/yd)2 in
Size - Width (mm)25.40 mm
Sleeve Size (mm/cm/m)6.4 mm Dia x 25.4 mm W
Sleeve Width (mm/cm/m)25.4 mm
Web Width (mm/cm/m)89.00 mm
Wire Gauge Range16 AWG to 8 AWG
Regulatory Information
- CA Prop 65 Labeled
- Yes
- Contains CA PROP 65 Substance
- Yes Contains-Label required
- Contains CA PROP 65 Warning Type
- Cancer
- Contains Heavy Metal(s)
- No - Does not contain
- EU RoHS Compliance
- Pass 2011/65/EU(Pass 2015/863)
- SDS Safety Data Sheet required
- No = MSDS/SDS is not required
CA Prop 65 Label WarningWARNING: Cancer - www.P65warnings.ca.gov
Contains CA PROP 65 SubstanceYes
Contains CA Prop 65 Cancer Causing ChemicalAntimony Trioxide
DOT Regulated ProductNo = not regulated by DOT
EU RoHS CompliantYes
