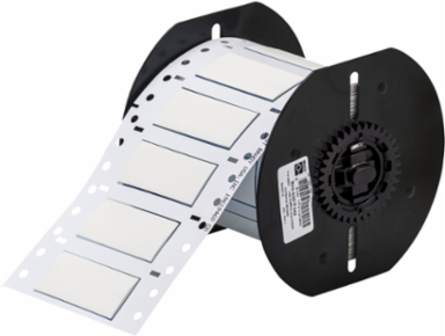

Brady B33-500-2-342 0.5 Inch Diameter x 2 Inch Wide Polyolefin Wire Marking Sleeves, White
Brady B33-500-2-342 0.5 Inch Diameter x 2 Inch Wide Polyolefin Wire Marking Sleeves, White
- MPN: B33-500-2-342
- UPC: 662820968801
- PPN: BRD-B33-500-2-342
- UNSPSC: 55121612
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$1006.80/ EA
Description
PermaSleeve® PS Heat-Shrink Polyolefin (B-342) wire marking sleeves combine speed, ease of use, and permanence to create long-lasting, high quality identification.
Features
- 3:1 heat shrinkable sleeve fit snugly around wires for maximum insulation protection and permanent identification
- Fade-resistant and smudge-proof for superior aesthetic appearance
- Cold resistant and flame-retardant with an operating temperature of -67°F to 275°F (-55°C to 135°C)
- Meets SAE-AMS-DTL-23053/5C (Class 1), SAE-AS-81531, MIL-STD-202;RoHS Compliant;and UL Recognized
Specifications
Regulatory Information
- CA Prop 65 Labeled
- Yes
- Contains CA PROP 65 Substance
- Yes Contains-Label required
- Contains CA PROP 65 Warning Type
- Cancer
- Contains Heavy Metal(s)
- No - Does not contain
- EU RoHS Compliance
- Pass 2011/65/EU(Pass 2015/863)
- SDS Safety Data Sheet required
- No = MSDS/SDS is not required
CA Prop 65 Label WarningWARNING: Cancer - www.P65warnings.ca.gov
Contains CA PROP 65 SubstanceYes
Contains CA Prop 65 Cancer Causing ChemicalAntimony Trioxide
DOT Regulated ProductNo = not regulated by DOT
EU RoHS CompliantYes
Specifications
- Applications
- Electrical Labeling; Wire and Cable Labeling
- Color
- White
- Enables Industry Compliance
- ASTM D 2671; ASTM E 162; ASTM E 662; ASTM G 155; MIL-STD-202; SAE-AMS-DTL-23053; SAE-AS-81531; UL Recognized
- For Use with Printer
- BBP®33 Label Printer; BradyPrinter i3300
- Label/Media Format
- Roll
- Primary Noun, Basic Function
- Sleeve
- Printable Sides
- Single-Side Printable
- Printer Compatibility
- i3300; BBP33
- Quantity per Roll
- 350
- Recommended Ribbon
- B30-R4300
- Shrink Ratio
- 3:1
- Suggested Ribbon Series
- R4300; R4502S; R5000; R6600; R6700
- Total Quantity
- 350
- Adhesive (Y/N)
- No
- Label Properties
- Heat Shrink Sleeves
- Material Properties
- Flame-retardant; Heat-shrinkable
- SAP B-Number
- B-342
- Diameter as Supplied (mm/cm/m)
- 12.7 mm
- Dimensions (Metric)
- 50.80 mm W x 21.60 mm H
- Height (in/ft/yd)
- 0.851 in
- Maximum Service Temperature °C
- 135 °C
- Maximum Wire Diameter (in/ft/yd)
- 0.45 in
- Maximum Wire Gauge
- 1 AWG
- Minimum Service Temperature °F
- -67 °F
- Minimum Wire Diameter (mm/cm/m)
- 4.75 mm
- Recovered Diameter (in/ft/yd)
- 0.187 in
- Roll Width (in/ft/yd)
- 2 in
- Size - Width (mm)
- 50.80 mm
- Sleeve Size (mm/cm/m)
- 12.7 mm Dia x 50.8 mm W
- Sleeve Width (mm/cm/m)
- 50.8 mm
- Web Width (mm/cm/m)
- 89.00 mm
- Wire Gauge Range
- 8 AWG to 1 AWG
Brand NameBrady®
DiagramIcon 14 (v)
FinishMatte
IndustryAerospace; Electrical; Voice & data communication
Manufacturer Part NumberB33-500-2-342
Print TechnologyThermal Transfer
Printer and Label ApplicationsWire & Cable
Printer Compatibility (Print)i3300
Quantity per Row1
Ribbon SeriesB30-R4300
Software CompatibilityBrady Workstation, LabelMark, MarkWare
Total Qty per Pack350 Sleeve(s) / Box
Trade NameBBP®33 PermaSleeve®
Brady Material NumberB-342
MaterialHeat-shrink Polyolefin
Resistance PropertiesChemical-Resistant; Corrosion-Resistant; Humidity-Resistant; Smear-Resistant; UV-Resistant; Weather-Resistant
Diameter as Supplied (in/ft/yd)0.5 in
Dimensions0.851 in H
Dimensions 20.851 in H
Height (mm/cm/m)21.60 mm
Maximum Service Temperature °F275 °F
Maximum Wire Diameter (mm/cm/m)11.43 mm
Minimum Service Temperature °C-55 °C
Minimum Wire Diameter (in/ft/yd)0.187 in
Minimum Wire Gauge8 AWG
Recovered Diameter (mm/cm/m)4.8 mm
Roll Width (mm/cm/m)50.8 mm
Sleeve Size (in/ft/yd)0.5 in Dia x 2 in W
Sleeve Width (in/ft/yd)2 in
Vertical Repeat1.25 in
Wire Diameter Range0.187 in to 0.45 in
