Brady B33-1500-2-342 PermaSleeve Polyolefin Wire Marking Sleeves, 1.5 Inch Dia x 2 Inch W, White

MPN: B33-1500-2-342
UPC: 662820968320
PPN: BRD-B33-1500-2-342
UNSPSC: 55121612

$622.99

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

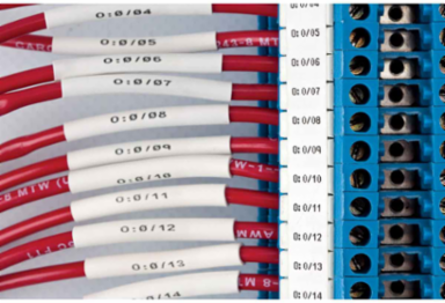

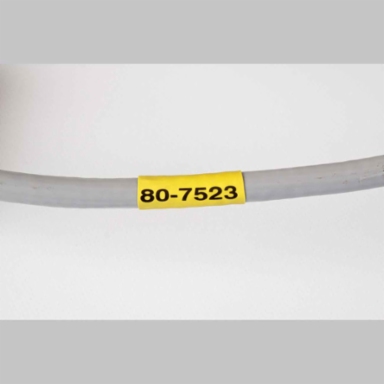

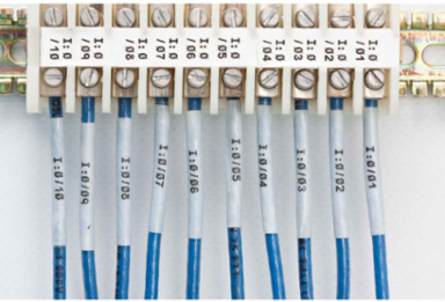

PermaSleeve® PS Heat-Shrink Polyolefin (B-342) wire marking sleeves combine speed, ease of use, and permanence to create long-lasting, high quality identification.

Features

3:1 heat shrinkable sleeve fit snugly around wires for maximum insulation protection and permanent identification
Fade-resistant and smudge-proof for superior aesthetic appearance
Cold resistant and flame-retardant with an operating temperature of -67°F to 275°F (-55°C to 135°C)
Meets SAE-AMS-DTL-23053/5C (Class 1), SAE-AS-81531, MIL-STD-202;RoHS Compliant;and UL Recognized

Documentation & Downloads

Specifications

Key Specifications

Applications	Electrical Labeling; Wire and Cable Labeling
Color	White
Enables Industry Compliance	ASTM D 2671; ASTM E 162; ASTM E 662; ASTM G 155; MIL-STD-202; SAE-AMS-DTL-23053; SAE-AS-81531; UL Recognized
For Use with Printer	BBP®33 Label Printer; BradyPrinter i3300

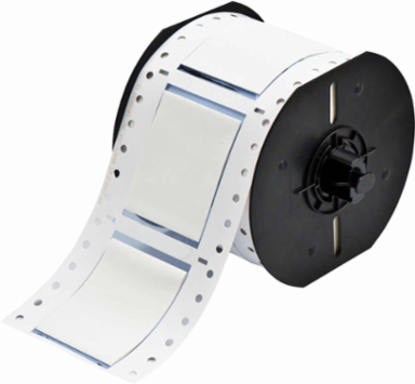

Label/Media Format	Roll
Primary Noun, Basic Function	Sleeve
Printable Sides	Single-Side Printable
Printer Compatibility	i3300; BBP33
Quantity per Roll	150
Recommended Ribbon	B30-R4300
Shrink Ratio	3:1
Suggested Ribbon Series	R4300; R4502S; R5000; R6600; R6700
Total Quantity	150
Adhesive (Y/N)	No
Label Properties	Heat Shrink Sleeves
Material Properties	Flame-retardant; Heat-shrinkable
SAP B-Number	B-342
Diameter as Supplied (mm/cm/m)	38.1 mm
Dimensions (Metric)	50.80 mm W x 61.80 mm H
Height (in/ft/yd)	2.433 in
Maximum Service Temperature °C	135 °C
Maximum Wire Diameter (in/ft/yd)	1.45 in
Minimum Service Temperature °C	-55 °C
Minimum Wire Diameter (in/ft/yd)	0.5 in
Recovered Diameter (in/ft/yd)	0.5 in
Roll Width (in/ft/yd)	2 in
Size - Width (mm)	50.80 mm
Sleeve Size (mm/cm/m)	38.1 mm Dia x 50.8 mm W
Sleeve Width (mm/cm/m)	50.8 mm
Web Width (mm/cm/m)	89.00 mm

Brand Name	Brady®
Diagram	Icon 14 (v)
Finish	Matte
Industry	Aerospace; Electrical; Voice & data communication
Manufacturer Part Number	B33-1500-2-342
Print Technology	Thermal Transfer
Printer and Label Applications	Wire & Cable
Printer Compatibility (Print)	i3300
Quantity per Row	1
Ribbon Series	B30-R4300
Software Compatibility	Brady Workstation, LabelMark, MarkWare
Total Qty per Pack	150 Sleeve(s) / Box
Trade Name	BBP®33 PermaSleeve®
Brady Material Number	B-342
Material	Heat-shrink Polyolefin
Resistance Properties	Chemical-Resistant; Corrosion-Resistant; Humidity-Resistant; Smear-Resistant; UV-Resistant; Weather-Resistant
Diameter as Supplied (in/ft/yd)	1.5 in
Dimensions	2.433 in H
Dimensions 2	2.433 in H
Height (mm/cm/m)	61.80 mm
Maximum Service Temperature °F	275 °F
Maximum Wire Diameter (mm/cm/m)	36.83 mm
Minimum Service Temperature °F	-67 °F
Minimum Wire Diameter (mm/cm/m)	12.70 mm
Recovered Diameter (mm/cm/m)	12.7 mm
Roll Width (mm/cm/m)	50.8 mm
Sleeve Size (in/ft/yd)	1.5 in Dia x 2 in W
Sleeve Width (in/ft/yd)	2 in
Vertical Repeat	3 in
Wire Diameter Range	0.5 in to 1.45 in

Regulatory Information

CA Prop 65 Labeled	Yes
Contains CA PROP 65 Substance	Yes Contains-Label required
Contains CA PROP 65 Warning Type	Cancer
Contains Heavy Metal(s)	No - Does not contain
EU RoHS Compliance	Pass 2011/65/EU(Pass 2015/863)
SDS Safety Data Sheet required	No = MSDS/SDS is not required

CA Prop 65 Label Warning	WARNING: Cancer - www.P65warnings.ca.gov
Contains CA PROP 65 Substance	Yes
Contains CA Prop 65 Cancer Causing Chemical	Antimony Trioxide
DOT Regulated Product	No = not regulated by DOT
EU RoHS Compliant	Yes
