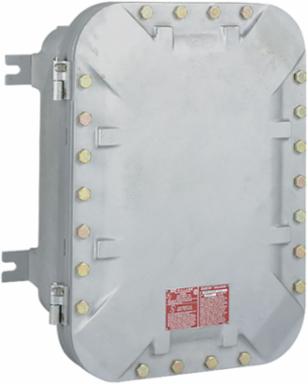

Killark EXB-14146 N34 Cast Aluminum Junction Box 14 x 14 x 6 Inch, NEMA 3, 4, 4X, Hazardous Location
Killark EXB-14146 N34 Cast Aluminum Junction Box 14 x 14 x 6 Inch, NEMA 3, 4, 4X, Hazardous Location
- MPN: EXB-14146 N34
- UPC: 783936119120
- PPN: HBL-EXB-14146 N34
- UNSPSC: 39121314
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
Description
EXB Series, 14 X 14 X 6, Class I, II, III, BCDEFG, Cast Aluminum, Type 4, Bolted Enclosure
Features
- High strength, lighter weight, corrosion resistant copper free cast aluminum construction.
- Reduced number of cover bolts.
- Cover o-ring, Nitrile (BUNA-N) material, supplied standard supplied standard for a Type 4X rating.
- Mounting lugs are bi-directional, bolt on, made from ductile aluminum alloy.
- Back pan mounting holes predrilled.
- Conduit and device openings factory or field installed.
- Aluminum hinges and stainless steel hardware standard on mid to large size boxes.
- Recessed flange notches to allow for easier cover opening.
- Copper-free cast aluminum construction - high strength, lighter in weight, and corrosion resistant. Fewer cover bolts - computer-aided design lessens the number of cover bolts by eliminating corner bolts. Reduces installation and maintenance time. Gaskete
Specifications
Specifications
- Country of Origin
- United States
- Hazardous Rating(s)
- Class I, Divisions 1 & 2, Groups B, C, D;Class I, Zones 1 & 2, Groups IIB+H2, IIA;Class II, Divisions 1 & 2, Groups E, F, G;Class III, Divisions 1 & 2
- Application
- Locations made hazardous due to the presence of flammable gases or vapors, combustible dust, or easily ignitable fibers and flyings, and areas which are subject to corrosion, weather, and dampness. Petroleum refineries, chemical and petrochemical plants w
- Length
- 9.4 in
- Size
- 9.4 in x 19.25 in x 19.25 in
- Type
- Junction Box
- Engineering Drawing 1 Display Text
- EXB-14146 N34 Engineering Drawing
- Nema Rating
- 3, 4, 4X
- Class Code
- D25
- Freight Class Code
- 06316011
- Image Actual Or Representative
- R
- MSDS Flag
- No
- Returnable Indicator
- Yes
- CSA File Number
- LR11716
- UL File Number
- E10514 / E83696 / E12379
- Series
- EXB Series
- Carton - SCC-14 Next Lower Level Sub Pack
- 00783936119120
Dimensions9.4 in x 19.25 in x 19.25 in
Height19.25 in
ColorGray
NEMA Rating3, 4, 4X
Special FeaturesCopper-free cast aluminum construction - high strength, lighter in weight, and corrosion resistant. Fewer cover bolts - computer-aided design lessens the number of cover bolts by eliminating corner bolts. Reduces installation and maintenance time. Gaskete
Width19.25 in
Cover TypeBolted
ARRA CompliantContact Manufacturer
Description - InvoiceQUANT ENCL 14X14X6 CAST AL
Harmonization Code7616995190
Lead Time20 wk
Order Multiple1 EA
Sub Class CodeD25D252
Gross Weight with Packaging121
MaterialAluminum, Copper Free (less than 4/10 of 1%)
Base Unit of MeasureEA
Master Pack DescriptionEach
Certifications
- EU RoHS Indicator
- Contact Manufacturer
