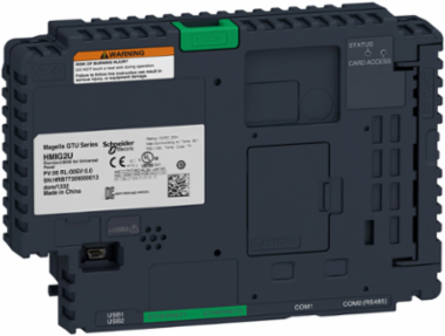

Schneider Electric HMIG2U Harmony GTU Base Unit, 1GB Flash Memory, 12-24V DC Power Supply

  • MPN: HMIG2U
  • PPN: SCH-HMIG2U
  • UNSPSC: 43211506
  • If you can't find the product or are unsure which one you need, please use the Product Selector tool below

    • CAD

    $1457.40

    / EA

    Available to Order

    Lead times may vary. For an accurate estimate please contact us.

    Available To Ship Immediately:0

    Loading dialog...

    Looking to buy a large quantity?

    To View Branch Inventory And Your Custom Pricing

    Spec sheet

    Description

    Engineered by Schneider Electric, the HMIG2U Harmony GTU Base Unit is a robust solution designed for seamless industrial automation and control applications. With 1GB of flash memory, this unit offers ample storage for your data and programs, facilitating efficient operation in various environments. Its versatility is highlighted by support for a power supply range of 12-24V DC, ensuring compatibility with a wide array of systems. This base unit not only enhances your HMI capabilities but also plays a critical role in optimizing performance within your automation projects.

    Features

    • These panels are equipped with an Ethernet port and have a built-in FTP server for data file transfer
    • Allows Web Gate function for remote access to the panel application from a PC with an Internet browser

    Documentation & Downloads

    Specifications

    Key Specifications

    Country of OriginIndonesia
    Depth45 mm
    Weight1100 g

    Communications & Management Attributes

    Communication Port ProtocolModbus, Modbus TCP/IP, Uni-Telway

    Complementary Attributes

    Integrated Connection TypeEthernet TCP/IP 2 RJ45COM1 serial link SUB-D 9 RS232C 2400...115200 bps, COM2 serial link RJ45 RS485 187.5 kbpsUSB 2.0 port 2 USB type A, USB 2.0 port mini B USB
    Us Rated Supply Voltage12...24 V DC power supply

    Important Information Attributes

    Persona Type IdsEU, OM, OM8, PB, SC, SI
    Market Segmentation IdCOMMERCIAL, INDUSTRIAL
    Local Signalling, green LED steady)operating status (RUN), , green LED steady)operating status (RUN), , green LED steady)operating status (RUN), , green LED steady)operating status (RUN), , green LED faded)stand-by, , green LED faded)stand-by, , green LED faded)stand-by, , green LED faded)stand-by, , orange LED flashing)software starting up, , orange LED flashing)software starting up, , orange LED flashing)software starting up, , orange LED flashing)software starting up, , red LED steady)power ON, , red LED steady)power ON, , red LED steady)power ON, , red LED steady)power ON, , green, orange and red LED alternate)module error (ERR), , green, orange and red LED alternate)module error (ERR), , green, orange and red LED alternate)module error (ERR), , green, orange and red LED alternate)module error (ERR), , red/orange LED alternate)boot status, , red/orange LED alternate)boot status, , red/orange LED alternate)boot status, , red/orange LED alternate)boot status, , green/red LED alternate)connection status, , green/red LED alternate)connection status, , green/red LED alternate)connection status, , green/red LED alternate)connection status, green LED steady)operating status (RUN), , green LED steady)operating status (RUN), , green LED steady)operating status (RUN), , green LED steady)operating status (RUN), , green LED faded)stand-by, , green LED faded)stand-by, , orange LED flashing)software starting up, , orange LED flashing)software starting up, , orange LED flashing)software starting up, , red LED steady)power ON, , red LED steady)power ON, , green, orange and red LED alternate)module error (ERR), , green, orange and red LED alternate)module error (ERR), , green, orange and red LED alternate)module error (ERR), , red/orange LED alternate)boot status, , red/orange LED alternate)boot status, , green/red LED alternate)connection status, , green/red LED alternate)connection status
    Certificate AgencyCE, cULus, ATEX, IEC-Ex, RCM, GL, KC, cUL, EAC, UKCA, UKEX
    Carbon Footprint Of The End Of Life Phase C1 To C40.68851, 0.7 kg CO2 eq.
    Carbon Footprint Of The Manufacturing Phase A1 To A3kg CO2 eq., 281
    Local Data StatusPublishable
    Pre Comm Date2019-01-08
    Device TypeHMI - Graphical display unit
    TraceabilityYes
    Average Life Duration7 year(s)
    Weee ApplicabilityFinished product
    Weee Product Category5
    Eoli Availability DisplayYes
    Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold
    Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold
    Rohs Eur StatusCompliant By Exemption
    Rohs Eur Full Compliance StatusCompliant By Exemption
    China Rohs Label4
    Without Single Use PlasticNo
    Tier Id1
    Function Option IdSTANDARD
    Product Kit IdentifierN
    Device Short Namestandard box
    Environmental Characteristiccorrosive gas free
    Port Ethernet10BASE-T/100BASE-T
    Product AvailabilityStock - Normally stocked in distribution facility
    Range Of ProductHarmony GTU
    Resistance To Electrostatic Discharge6 kV contact discharge IEC 61000-4-2 level 38 kV air discharge IEC 61000-4-2 level 3
    ReturnabilityYes
    Software PackageVijeo Designer
    Sustainable PackagingNo
    Type Of Coolingnatural convection
    Weee LabelThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
    Data Sourceextrapolated product
    Width Nominal188 mm
    Customs Code8537109170
    Halogen Free StatusProduct contains halogen above thresholds
    Warranty In Months18
    Functional Unit DescriptionHarmony GTU base unit during 10 years and maximum use rate at 35W, based on below function:& 10 - Ethernet& 10 - COM port: RS232C/RS422/RS485& 10 - Auxiliary port& 10 - Expansion unit fieldbus card& 10 - USB 2.0 port 3 USB type A & 10 - USB 2.0 port mini B USB& 10 - DVI-D video port DVI-D& 10 - Microphone mini-jack& 10,in accordance with the relevant standards:& 10 - CSA C22.2 No 142& 10 - ANSI/ISA 12-12-01& 10 - UL 508& 10 - Class I division 2 CSA C22.2 No 213& 10 - IEC 61132-2
    Functional Unit UnitUnit
    Energy Consumption On Product Lifetime In Kwh1533
    Persona Type NamesEnd User, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator
    Market SegmentationCommercial, Industrial
    Memory Description256 MB RAM internal 2 x 13 mm board), 512 KB NVRAM backup memory
    Carbon Footprint Of The Distribution Phase A40.31709, 0.3 kg CO2 eq.
    Carbon Footprint Of The Installation Phase A50.3 kg CO2 eq., 0.31815
    Carbon Footprint Of The Use Phase B2 B3 B4 B6707 kg CO2 eq., 707.2999999999998
    Local Publishable Date2026-01-12
    Return IndicatorY
    ServiceabilityYes
    Field Service DivisionIDIBS
    Manufacturing Carbon Footprint281
    Weee ScopeIn
    Scope PerimeterAt least in Europe
    End Of Life Doc RefENVEOLI1403023EN
    Reach Full Compliance Status IdCONTAINS_SVHC
    Rohs Eur In ScopeNo
    Rohs Eur Conformity Date2514
    China Rohs In ScopeYes
    With Recycled CardboardYes
    Product Contributes To Saved And Avoided EmissionsNo
    Tier1
    Function OptionStandard
    Data Storage Equipment1 GB built-in flash memory
    Electromagnetic Compatibilityelectrostatic discharge immunity test level 3 conforming to IEC 61000-4-2
    Number Of Slots1 slot(s) for SD card
    Processor NameARM Cortex-A9
    Product Or Component Typebase unit
    Realtime Clockbuilt-in
    Resistance To Fast Transients1 kV IEC 61000-4-4 signal ports)2 kV IEC 61000-4-4 power ports)
    Shock Resistance147 m/s² X, Y, Z directions for 3 times)IEC 61131-2
    Software Versionv5.9.4
    Total Lifecycle Carbon Footprint990 kg CO2 eq.
    Vibration Resistance3.5 mm constant amplitude 5-9 Hz) X, Y, Z directions for 10 cycles (approx. 100 min) IEC 61131-29.8 m/s² 9-150 Hz) X, Y, Z directions for 10 cycles (approx. 100 min) IEC 61131-2
    Database Version2022-01
    Height Nominal131 mm
    Nbr. Of Units In Pkg.1
    F Gas FreeOnly air and vacuum used for insulation / breaking, no F-gas including SF6
    Silicone FreeNo
    Packaging Weight In G180
    Functional Unit Quantity1
    Reference Lifetime In Y10
    Recyclability Potential In %57

    Environment Attributes Main

    Take BackNo
    Recycled Metal Content At Cr Level0 %
    Mercury FreeYes
    Carbon Footprint989.6237499999997
    Ambient Air Temperature For Storage-20-60 °C-20-60 °C
    Environmental DisclosureENVPEP1403023EN
    Halogen Content PerformanceProduct contains halogen above thresholds
    Packaging Made With Recycled CardboardYes
    Reach RegulationReference contains Substances of Very High Concern above the threshold
    Pep CodeENVPEP1403023EN
    Pcr VersionPEP-PCR-ed4-2021 09 06
    Type Of Verification For The PepIndependent internal review
    Halogene PerformanceProduct contains halogen above thresholds
    China Rohs RegulationX
    Silicon FreeNo
    Ambient Air Temperature For Operation0-60 °C
    Circularity ProfileENVEOLI1403023EN
    Eu Rohs DirectiveCompliant By Exemption
    Operating Altitude6561.68 ft (2000 m)
    Packaging Without Single Use PlasticNo
    Relative Humidity10-90 % non-condensing
    Pep Verification Date2024-02-02
    Psr VersionPSR-0005-ed2-2016 03 29
    F Gas Usage PerformanceOnly air and vacuum used for insulation / breaking, no F-gas including SF6

    General Attributes

    Product Or Component Typebase unit
    Range Of ProductHarmony GTU

    ETIM

    ETIM 8EC001412
    ETIM 10EC001412
    ETIM 9EC001412
    Harmony GTU Base Unit, 1GB Flash Memory, 12-24V DC Power Supply
