Schneider Electric HMIG3U Harmony GTU Premium Box Base Unit 256MB RAM 1GB SD Card

  • MPN: HMIG3U
  • PPN: SCH-HMIG3U
  • If you can't find the product or are unsure which one you need, please use the Product Selector tool below

    • CAD

    $1820.63

    / EA

    Available to Order

    Lead times may vary. For an accurate estimate please contact us.

    Available To Ship Immediately:0

    Loading dialog...

    Looking to buy a large quantity?

    To View Branch Inventory And Your Custom Pricing

    Spec sheet

    Description

    This Magelis GTU premium box module has 256MB of RAM, a RISC CPU, 2 SD card slots, including a 1GB pre-installed card. It also has 2 host + 1 mini-B USB ports, 1 RS232C/RS422/RS485 port, 1 RS485 port and 1 Ethernet TCP/IP port. This universal premium box is designed for building advanced HMI systems together with Magellis universal GTU panels. It also offers a LED power indicator and a lock button to attach the box module and display. It has high performance RISC CPU for low latency display and automation. Its RS485 and Ethernet ports, ideal to supervise and control complex systems and machines.

    Documentation & Downloads

    Specifications

    Key Specifications

    Country of OriginBrazil, Canada, China, Costa Rica, Spain, France, United Kingdom, Indonesia, Japan, MX|US
    Depth45 mm

    Communications & Management Attributes

    Communication Port ProtocolModbus, Modbus TCP/IP, Uni-Telway

    Complementary Attributes

    Integrated Connection TypeCOM2 serial link SUB-D 9 RS232C/RS422/RS485 187.5 kbit/s, Ethernet TCP/IP 2 RJ45, COM1 serial link RJ45 RS485 110...115200 bit/s, COM1 serial link RJ45 RS485 187.5 kbit/s, COM2 serial link SUB-D 9 RS232C/RS422/RS485 110...115200 bit/sauxiliary port terminal blockexpansion unit fieldbus cardUSB 2.0 port 2 USB type A, USB 2.0 port mini B USB

    Important Information Attributes

    Persona Type IdsEU, OM, OM8, PB, SC, SI
    Market Segmentation IdCOMMERCIAL, INDUSTRIAL
    Memory Description256 MB RAM internal 2 x 13 mm board), 512 KB NVRAM backup memory
    Carbon Footprint Of The Distribution Phase [A4]0.31709, 0.3 kg CO2 eq.
    Carbon Footprint Of The Installation Phase [A5]0.3 kg CO2 eq., 0.31815
    Carbon Footprint Of The Use Phase [B2 B3 B4 B6]1 010 kg CO2 eq., 1010.4285714285712
    Local Publishable Date2026-01-12
    Stocking FlagY
    Device TypeHMI - Graphical display unit
    TraceabilityYes
    Average Life Duration7 year(s)
    Weee ApplicabilityFinished product
    Weee Product Category5
    Eoli Availability DisplayYes
    Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold
    Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold
    Rohs Eur StatusCompliant By Exemption
    Rohs Eur Full Compliance StatusCompliant By Exemption
    China Rohs Label4
    Without Single Use PlasticNo
    Tier Id1
    Function Option IdSTANDARD
    Product Kit IdentifierN
    Device Short NamePremium Box
    Port Ethernet10BASE-T/100BASE-TX/1000BASE-T
    Product AvailabilityStock - Normally stocked in distribution facility
    Range Of ProductHarmony GTU
    Software PackageVijeo Designer
    Sustainable PackagingNo
    Type Of Coolingnatural convection
    Weee LabelThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
    Database Version2022-01
    Pcr VersionPEP-PCR-ed4-2021 09 06
    Type Of Verification For The PepIndependent internal review
    Functional-unit DescriptionHarmony GTU base unit during 10 years and maximum use rate at 35W, based on below function:& 10 - Ethernet& 10 - COM port: RS232C/RS422/RS485& 10 - Auxiliary port& 10 - Expansion unit fieldbus card& 10 - USB 2.0 port 3 USB type A & 10 - USB 2.0 port mini B USB& 10 - DVI-D video port DVI-D& 10 - Microphone mini-jack& 10,in accordance with the relevant standards:& 10 - CSA C22.2 No 142& 10 - ANSI/ISA 12-12-01& 10 - UL 508& 10 - Class I division 2 CSA C22.2 No 213& 10 - IEC 61132-2
    Functional-unit UnitUnit
    Energy Consumption On Product Lifetime In Kwh2190
    Energy Model - Installation [A5]Electricity Mix; Production mix; Low voltage; FR
    Energy Model - End Of Life [C1-c4]Electricity Mix; Production mix; Low voltage; FR
    Height Nominal131 mm
    [Us] Rated Supply Voltage12...24 V DC power supply
    F-gas Usage PerformanceOnly air and vacuum used for insulation / breaking, no F-gas including SF6
    Nbr. Of Units In Pkg.1
    Silicone-freeNo
    Warranty (In Months)18
    Climate Change - Fossil Fuels ( Kg Co2 Eq.) Manufacturing [A1-a3]280.67
    Climate Change - Total ( Kg Co2 Eq.) Manufacturing [A1-a3]281
    Depletion Of Abiotic Resources - Fossil Fuels (Mj) Manufacturing [A1-a3]3228.3
    Depletion Of Abiotic Resources - Fossil Fuels (Mj) Installation [A5]3.3007
    Depletion Of Abiotic Resources - Fossil Fuels (Mj) Benefits/Loads Beyond System Boundaries [D]-91.368
    Ecotoxicity (Fresh Water) (Ctue) Distribution [A4]1.3004
    Ecotoxicity (Fresh Water) (Ctue) End Of Life [C1-c4]22.323
    Hazardous Waste Disposed Of (Kg) Manufacturing [A1-a3]866.23
    Ionizing Radiation Human Health (Kbq Of U235 Equiv.) Manufacturing [A1-a3]75.222
    Materials For Recycling (Kg) Installation [A5]0.18
    Non-hazardous Waste Disposed Of (Kg) Manufacturing [A1-a3]66.84
    Non-hazardous Waste Disposed Of (Kg) Benefits/Loads Beyond System Boundaries [D]-14.794
    Total Use Of Non-renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Total Life Cycle6.7216
    Total Use Of Non-renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Benefits/Loads Beyond System Boundaries [D]-0.282
    Total Use Of Primary Energy During The Life Cycle (Mj) Distribution [A4]3.8503
    Total Use Of Primary Energy During The Life Cycle (Mj) End Of Life [C1-c4]22.087
    Total Use Of Renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Manufacturing [A1-a3]108.26
    Use Of Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Total Life Cycle6.7216
    Use Of Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Benefits/Loads Beyond System Boundaries [D]-0.282
    Use Of Non-renewable Primary Energy Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Distribution [A4]3.8502
    Use Of Non-renewable Primary Energy Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) End Of Life [C1-c4]21.95
    Use Of Renewable Primary Energy Resources Used As Raw Materials (Mj) Total Life Cycle3.3709
    Use Of Renewable Primary Energy Resources Used As Raw Materials (Mj) Benefits/Loads Beyond System Boundaries [D]-3.132
    Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials (Mj) Benefits/Loads Beyond System Boundaries [D]-2.0658
    Water Use (M3 Eq) Benefits/Loads Beyond System Boundaries [D]-1.7162
    Persona Type NamesEnd User, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator
    Market SegmentationCommercial, Industrial
    Certificate AgencyCE, cULus, ATEX, IEC-Ex, RCM, GL, KC, cUL, EAC, ABS, BV, CCS, DNV, LR, RINA, UKCA, UKEX
    Carbon Footprint Of The End-of-life Phase [C1 To C4]0.68851, 0.7 kg CO2 eq.
    Carbon Footprint Of The Manufacturing Phase [A1 To A3]kg CO2 eq., 281
    Local Data StatusPublishable
    Return IndicatorY
    Stock Policy1
    ServiceabilityYes
    Field Service DivisionIDIBS
    Manufacturing Carbon Footprint281
    Weee ScopeIn
    Scope PerimeterAt least in Europe
    End Of Life Doc RefENVEOLI1403023EN
    Reach Full Compliance Status IdCONTAINS_SVHC
    Rohs Eur In ScopeNo
    Rohs Eur Conformity Date2514
    China Rohs In ScopeYes
    With Recycled CardboardYes
    Product Contributes To Saved And Avoided EmissionsNo
    Tier1
    Function OptionStandard
    Data Storage Equipment1 GB SD card
    Electromagnetic Compatibilityelectrostatic discharge immunity test level 3 conforming to IEC 61000-4-2
    Processor NameARM Cortex-A9
    Product Or Component Typebase unit
    ReturnabilityYes
    Software Versionv5.9.4
    Total Lifecycle Carbon Footprint1 293 kg CO2 eq.
    Vibration Resistance3.5 mm constant amplitude 5-9 Hz) IEC 61131-29.8 m/s² 9-150 Hz) IEC 61131-2
    Pep CodeENVPEP1403023EN
    Pep Verification Date2024-02-02
    Psr VersionPSR-0005-ed2-2016 03 29
    Data Sourceextrapolated product
    Functional-unit Quantity1
    Reference Lifetime In Y10
    Energy Model - Manufacturing [A1-a3]Electricity Mix; Production mix; Low voltage; ID
    Energy Model - Use [B6]Electricity Mix; Production mix; Low voltage; FR
    Recyclability Potential In %57
    Width Nominal188 mm
    F-gas FreeOnly air and vacuum used for insulation / breaking, no F-gas including SF6
    Halogen-free StatusProduct contains halogen above thresholds
    Package Weight(Lbs)1.196 kg
    Take-backNo
    Acidification (Ap) (Mole Of H+ Equiv) Manufacturing [A1-a3]1.6987
    Climate Change - Fossil Fuels ( Kg Co2 Eq.) Benefits/Loads Beyond System Boundaries [D]-6.6199
    Climate Change - Total ( Kg Co2 Eq.) Benefits/Loads Beyond System Boundaries [D]-6.8154
    Depletion Of Abiotic Resources - Fossil Fuels (Mj) Distribution [A4]3.8502
    Depletion Of Abiotic Resources - Fossil Fuels (Mj) End Of Life [C1-c4]21.95
    Ecotoxicity (Fresh Water) (Ctue) Manufacturing [A1-a3]3678.2
    Ecotoxicity (Fresh Water) (Ctue) Installation [A5]2.3383
    Ecotoxicity (Fresh Water) (Ctue) Benefits/Loads Beyond System Boundaries [D]-455.41
    Hazardous Waste Disposed Of (Kg) Benefits/Loads Beyond System Boundaries [D]-11.837
    Ionizing Radiation Human Health (Kbq Of U235 Equiv.) Benefits/Loads Beyond System Boundaries [D]-10.549
    Net Use Of Fresh Water (M3) Manufacturing [A1-a3]1.4317
    Non-hazardous Waste Disposed Of (Kg) Installation [A5]1.0313
    Terrestrial Eutrophication (Mole Of N Equiv) Manufacturing [A1-a3]2.3827
    Total Use Of Non-renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Manufacturing [A1-a3]6.7216
    Total Use Of Primary Energy During The Life Cycle (Mj) Manufacturing [A1-a3]3336.5
    Total Use Of Primary Energy During The Life Cycle (Mj) Installation [A5]3.5442
    Total Use Of Primary Energy During The Life Cycle (Mj) Benefits/Loads Beyond System Boundaries [D]-96.565
    Total Use Of Renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Benefits/Loads Beyond System Boundaries [D]-5.1978
    Use Of Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Manufacturing [A1-a3]6.7216
    Use Of Non-renewable Primary Energy Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Manufacturing [A1-a3]3221.5
    Use Of Non-renewable Primary Energy Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Installation [A5]3.3007
    Use Of Non-renewable Primary Energy Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Benefits/Loads Beyond System Boundaries [D]-91.086
    Use Of Renewable Primary Energy Resources Used As Raw Materials (Mj) Manufacturing [A1-a3]3.3709
    Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials (Mj) Manufacturing [A1-a3]104.89
    Water Use (M3 Eq) Manufacturing [A1-a3]61.49
    Customs Code8537109170

    Environment Attributes Main

    Take BackNo
    Recycled Metal Content At Cr Level0 %
    Mercury FreeYes
    Carbon Footprint1292.7523214285711
    Ambient Air Temperature For Storage-20-60 °C-20-60 °C
    Environmental DisclosureENVPEP1403023EN
    Halogen Content PerformanceProduct contains halogen above thresholds
    Packaging Made With Recycled CardboardYes
    Reach RegulationReference contains Substances of Very High Concern above the threshold
    Pep CodeENVPEP1403023EN
    Pcr VersionPEP-PCR-ed4-2021 09 06
    Type Of Verification For The PepIndependent internal review
    Halogene PerformanceProduct contains halogen above thresholds
    China Rohs RegulationX
    Silicon FreeNo
    Ambient Air Temperature For Operation0-60 °C
    Circularity ProfileENVEOLI1403023EN
    Eu Rohs DirectiveCompliant By Exemption
    Operating Altitude6561.68 ft (2000 m)
    Packaging Without Single Use PlasticNo
    Relative Humidity10-90 % non-condensing
    Pep Verification Date2024-02-02
    Psr VersionPSR-0005-ed2-2016 03 29

    General Attributes

    Product Or Component Typebase unit
    Range Of ProductHarmony GTU

    ETIM

    ETIM 8EC001412
    ETIM 9EC001412

    Contractual Warranty Attributes

    Warranty Period18 months
    Warranty18 months

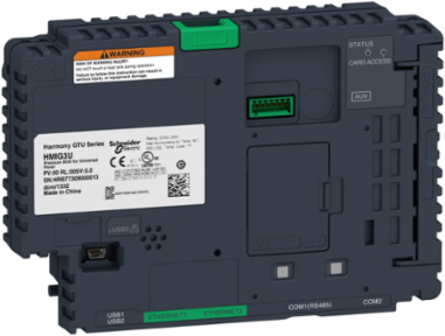

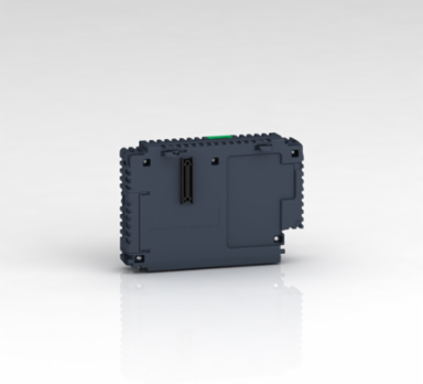

    Harmony GTU Premium Box Base Unit 256MB RAM 1GB SD Card

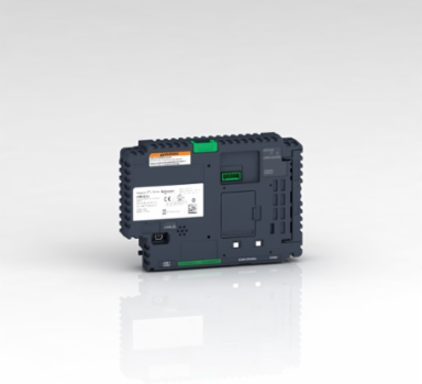

    Harmony GTU Premium Box Base Unit 256MB RAM 1GB SD Card

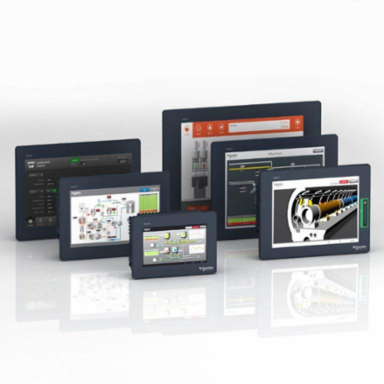

    Harmony GTU Premium Box Base Unit 256MB RAM 1GB SD Card
