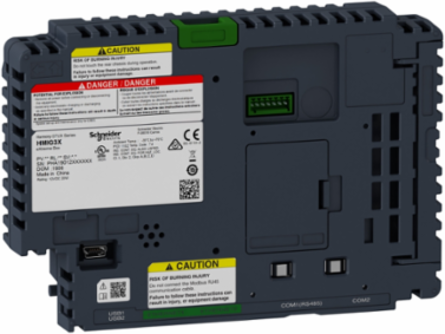

Schneider Electric HMIG3X Harmony GTUX eXtreme Box Base Unit, 12V DC, 2 Slots, 0.9 kg
- MPN: HMIG3X
- PPN: SCH-HMIG3X
CAD
$2274.83
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
The HMIG3X Harmony GTUX eXtreme Box Base Unit from Schneider Electric is a robust and efficient solution designed for demanding industrial environments. Operating on a 12V DC power supply, this base unit features two slots for versatile configuration options, allowing for seamless integration with various applications. Weighing in at just 0.9 kg, it balances lightweight portability with durable construction, making it ideal for situations where space is limited but performance remains a top priority. With its innovative design, this unit enhances operational reliability, empowering users to effectively handle their automation needs.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- China, United States
Depth45 mm
Communications & Management Attributes
- Communication Port Protocol
- Modbus TCP/IP, Modbus serial, Uni-Telway
Complementary Attributes
- Integrated Connection Type
- COM2 serial link SUB-D 9 RS232C/RS422/RS485 187.5 kbit/sEthernet TCP/IP 2 RJ45 10 BASE-T/100 BASE-TX/1000 BASE-T, COM1 serial link RJ45 RS485 110...115200 bit/s, COM1 serial link RJ45 RS485 187.5 kbit/s, COM2 serial link SUB-D 9 RS232C/RS422/RS485 110...115200 bit/sauxiliary port terminal blockexpansion unit fieldbus cardUSB 2.0 port 2 USB type A, USB 2.0 port mini B USB
Important Information Attributes
- Persona Type Ids
- EU, OM, OM8, PB, SC
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Memory Description
- 256 MB RAM internal 2 x 13 mm board), 512 KB NVRAM backup memory
- Certificate Agency
- CE, KC, RCM, EAC, ATEX zone 2/22, IEC-Ex, UL, CSA, UKCA, UKEX
- Carbon Footprint Of The End-of-life Phase [C1 To C4]
- 0.7 kg CO2 eq., 0.68851
- Carbon Footprint Of The Manufacturing Phase [A1 To A3]
- kg CO2 eq., 281
- Local Data Status
- Publishable
- Return Indicator
- Y
- Stock Policy
- 2
- Serviceability
- Yes
- Field Service Division
- IDIBS
- Manufacturing Carbon Footprint
- 281
- Weee Scope
- In
- Scope Perimeter
- At least in Europe
- End Of Life Doc Ref
- ENVEOLI1403023EN
- Reach Full Compliance Status Id
- CONTAINS_SVHC
- Rohs Eur In Scope
- No
- Rohs Eur Conformity Date
- 2514
- China Rohs In Scope
- Yes
- With Recycled Cardboard
- Yes
- Product Contributes To Saved And Avoided Emissions
- No
- Tier
- 1
- Function Option
- Standard
- Data Storage Equipment
- 1 GB SD card
- Electromagnetic Compatibility
- electrostatic discharge immunity test conforming to IEC 61000-4-2 level 3
- Number Of Slots
- 2 slot(s) for SD card
- Processor Name
- ARM Cortex-A9
- Product Or Component Type
- base unit
- Resistance To Electrostatic Discharge
- 6 kV contact discharge IEC 61000-4-2 level 38 kV air discharge IEC 61000-4-2 level 3
- Returnability
- Yes
- Software Version
- v5.9.4
- Total Lifecycle Carbon Footprint
- 1 293 kg CO2 eq.
- Vibration Resistance
- 7 mm 5-9 Hz) X, Y, Z directions for 10 cycles (approx. 100 min) IEC 61131-219.6 m/s² 9-150 Hz) IEC 61131-2
- Pep Code
- ENVPEP1403023EN
- Pep Verification Date
- 2024-02-02
- Psr Version
- PSR-0005-ed2-2016 03 29
- Data Source
- extrapolated product
- Functional-unit Quantity
- 1
- Reference Lifetime In Y
- 10
- Energy Model - Manufacturing [A1-a3]
- Electricity Mix; Production mix; Low voltage; ID
- Energy Model - Use [B6]
- Electricity Mix; Production mix; Low voltage; FR
- Recyclability Potential In %
- 57
- Width Nominal
- 188 mm
- F-gas Free
- Only air and vacuum used for insulation / breaking, no F-gas including SF6
- Halogen-free Status
- Product contains halogen above thresholds
- Package Weight(Lbs)
- 1.098 kg
- Take-back
- No
- Acidification (Ap) (Mole Of H+ Equiv) Manufacturing [A1-a3]
- 1.6987
- Climate Change - Fossil Fuels ( Kg Co2 Eq.) Benefits/Loads Beyond System Boundaries [D]
- -6.6199
- Climate Change - Total ( Kg Co2 Eq.) Benefits/Loads Beyond System Boundaries [D]
- -6.8154
- Depletion Of Abiotic Resources - Fossil Fuels (Mj) Distribution [A4]
- 3.8502
- Depletion Of Abiotic Resources - Fossil Fuels (Mj) End Of Life [C1-c4]
- 21.95
- Ecotoxicity (Fresh Water) (Ctue) Manufacturing [A1-a3]
- 3678.2
- Ecotoxicity (Fresh Water) (Ctue) Installation [A5]
- 2.3383
- Ecotoxicity (Fresh Water) (Ctue) Benefits/Loads Beyond System Boundaries [D]
- -455.41
- Hazardous Waste Disposed Of (Kg) Benefits/Loads Beyond System Boundaries [D]
- -11.837
- Ionizing Radiation Human Health (Kbq Of U235 Equiv.) Benefits/Loads Beyond System Boundaries [D]
- -10.549
- Net Use Of Fresh Water (M3) Manufacturing [A1-a3]
- 1.4317
- Non-hazardous Waste Disposed Of (Kg) Installation [A5]
- 1.0313
- Terrestrial Eutrophication (Mole Of N Equiv) Manufacturing [A1-a3]
- 2.3827
- Total Use Of Non-renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Manufacturing [A1-a3]
- 6.7216
- Total Use Of Primary Energy During The Life Cycle (Mj) Manufacturing [A1-a3]
- 3336.5
- Total Use Of Primary Energy During The Life Cycle (Mj) Installation [A5]
- 3.5442
- Total Use Of Primary Energy During The Life Cycle (Mj) Benefits/Loads Beyond System Boundaries [D]
- -96.565
- Total Use Of Renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Benefits/Loads Beyond System Boundaries [D]
- -5.1978
- Use Of Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Manufacturing [A1-a3]
- 6.7216
- Use Of Non-renewable Primary Energy Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Manufacturing [A1-a3]
- 3221.5
- Use Of Non-renewable Primary Energy Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Installation [A5]
- 3.3007
- Use Of Non-renewable Primary Energy Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Benefits/Loads Beyond System Boundaries [D]
- -91.086
- Use Of Renewable Primary Energy Resources Used As Raw Materials (Mj) Manufacturing [A1-a3]
- 3.3709
- Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials (Mj) Manufacturing [A1-a3]
- 104.89
- Water Use (M3 Eq) Manufacturing [A1-a3]
- 61.49
- Customs Code
- 8537109170
Persona Type NamesEnd User, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician
Market SegmentationCommercial, Industrial
Software PackageEcoStruxure Operator Terminal Expert, Vijeo Designer
Carbon Footprint Of The Distribution Phase [A4]0.31709, 0.3 kg CO2 eq.
Carbon Footprint Of The Installation Phase [A5]0.31815, 0.3 kg CO2 eq.
Carbon Footprint Of The Use Phase [B2 B3 B4 B6]1 010 kg CO2 eq., 1010.4285714285712
Local Publishable Date2026-07-15
Stocking FlagN
Device TypeHMI - Graphical display unit
TraceabilityYes
Average Life Duration7 year(s)
Weee ApplicabilityFinished product
Weee Product Category5
Eoli Availability DisplayYes
Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold
Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant By Exemption
Rohs Eur Full Compliance StatusCompliant By Exemption
China Rohs Label4
Without Single Use PlasticNo
Tier Id1
Function Option IdSTANDARD
Product Kit IdentifierN
Device Short NameeXtreme Box
Environmental Characteristiccorrosive gas free
Power Consumption In W20.0 W
Product AvailabilityStock - Normally stocked in distribution facility
Range Of ProductHarmony GTUX
Resistance To Fast Transients1 kV IEC 61000-4-4 signal ports)2 kV IEC 61000-4-4 power ports)
Shock Resistance392 m/s² X, Y, Z directions for 3 times)IEC 61131-2
Sustainable PackagingNo
Type Of Coolingnatural convection
Weee LabelThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Database Version2022-01
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent internal review
Functional-unit DescriptionHarmony GTU base unit during 10 years and maximum use rate at 35W, based on below function:& 10 - Ethernet& 10 - COM port: RS232C/RS422/RS485& 10 - Auxiliary port& 10 - Expansion unit fieldbus card& 10 - USB 2.0 port 3 USB type A & 10 - USB 2.0 port mini B USB& 10 - DVI-D video port DVI-D& 10 - Microphone mini-jack& 10,in accordance with the relevant standards:& 10 - CSA C22.2 No 142& 10 - ANSI/ISA 12-12-01& 10 - UL 508& 10 - Class I division 2 CSA C22.2 No 213& 10 - IEC 61132-2
Functional-unit UnitUnit
Energy Consumption On Product Lifetime In Kwh2190
Energy Model - Installation [A5]Electricity Mix; Production mix; Low voltage; FR
Energy Model - End Of Life [C1-c4]Electricity Mix; Production mix; Low voltage; FR
Height Nominal131 mm
[Us] Rated Supply Voltage12 V DC power supply
F-gas Usage PerformanceOnly air and vacuum used for insulation / breaking, no F-gas including SF6
Nbr. Of Units In Pkg.1
Silicone-freeNo
Warranty (In Months)18
Climate Change - Fossil Fuels ( Kg Co2 Eq.) Manufacturing [A1-a3]280.67
Climate Change - Total ( Kg Co2 Eq.) Manufacturing [A1-a3]281
Depletion Of Abiotic Resources - Fossil Fuels (Mj) Manufacturing [A1-a3]3228.3
Depletion Of Abiotic Resources - Fossil Fuels (Mj) Installation [A5]3.3007
Depletion Of Abiotic Resources - Fossil Fuels (Mj) Benefits/Loads Beyond System Boundaries [D]-91.368
Ecotoxicity (Fresh Water) (Ctue) Distribution [A4]1.3004
Ecotoxicity (Fresh Water) (Ctue) End Of Life [C1-c4]22.323
Hazardous Waste Disposed Of (Kg) Manufacturing [A1-a3]866.23
Ionizing Radiation Human Health (Kbq Of U235 Equiv.) Manufacturing [A1-a3]75.222
Materials For Recycling (Kg) Installation [A5]0.18
Non-hazardous Waste Disposed Of (Kg) Manufacturing [A1-a3]66.84
Non-hazardous Waste Disposed Of (Kg) Benefits/Loads Beyond System Boundaries [D]-14.794
Total Use Of Non-renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Total Life Cycle6.7216
Total Use Of Non-renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Benefits/Loads Beyond System Boundaries [D]-0.282
Total Use Of Primary Energy During The Life Cycle (Mj) Distribution [A4]3.8503
Total Use Of Primary Energy During The Life Cycle (Mj) End Of Life [C1-c4]22.087
Total Use Of Renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Manufacturing [A1-a3]108.26
Use Of Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Total Life Cycle6.7216
Use Of Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Benefits/Loads Beyond System Boundaries [D]-0.282
Use Of Non-renewable Primary Energy Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Distribution [A4]3.8502
Use Of Non-renewable Primary Energy Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) End Of Life [C1-c4]21.95
Use Of Renewable Primary Energy Resources Used As Raw Materials (Mj) Total Life Cycle3.3709
Use Of Renewable Primary Energy Resources Used As Raw Materials (Mj) Benefits/Loads Beyond System Boundaries [D]-3.132
Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials (Mj) Benefits/Loads Beyond System Boundaries [D]-2.0658
Water Use (M3 Eq) Benefits/Loads Beyond System Boundaries [D]-1.7162
Environment Attributes Main
- Take Back
- No
- Recycled Metal Content At Cr Level
- 0 %
- Mercury Free
- Yes
- Carbon Footprint
- 1292.7523214285711
- Ambient Air Temperature For Storage
- -30-70 °C-30-70 °C
- Environmental Disclosure
- ENVPEP1403023EN
- Halogen Content Performance
- Product contains halogen above thresholds
- Packaging Made With Recycled Cardboard
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Pep Code
- ENVPEP1403023EN
- Pcr Version
- PEP-PCR-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent internal review
Halogene PerformanceProduct contains halogen above thresholds
China Rohs RegulationX
Silicon FreeNo
Ambient Air Temperature For Operation-30-70 °C-30-70 °C
Circularity ProfileENVEOLI1403023EN
Eu Rohs DirectiveCompliant By Exemption
Operating Altitude6561.68 ft (2000 m)
Packaging Without Single Use PlasticNo
Relative Humidity10-90 % non-condensing
Pep Verification Date2024-02-02
Psr VersionPSR-0005-ed2-2016 03 29
General Attributes
- Product Or Component Type
- base unit
Range Of ProductHarmony GTUX
ETIM
- ETIM 8
- EC001412
ETIM 9EC001412
