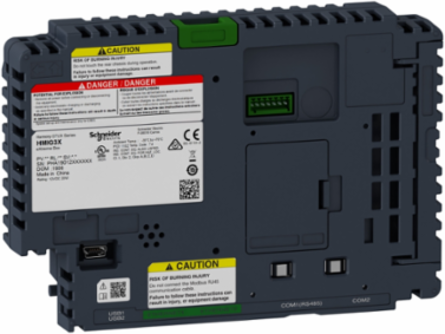

Schneider Electric HMIG3XFH Harmony GTUX Base Unit, 188 mm Width, 0.9 kg Weight, 20 W Power
- MPN: HMIG3XFH
- PPN: SCH-HMIG3XFH
CAD
$2958.37
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
This Harmony GTUX Base Unit from Schneider Electric is engineered for efficiency and reliability, making it an essential component for automation and control applications. With a width of 188 mm, it provides a compact footprint while delivering a robust power output of 20 W. Weighing just 0.9 kg, this base unit is designed for easy integration into various systems, ensuring that you can achieve optimal performance without compromising on space or power consumption. Its thoughtful design and engineering reflect Schneider Electric's commitment to high-quality industrial solutions, making it a solid choice for enhancing your operational capabilities.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Brazil, China, France, United Kingdom, United States
Depth45 mm
Communications & Management Attributes
- Communication Port Protocol
- Modbus TCP/IP, Modbus serial, Uni-Telway
Complementary Attributes
- Integrated Connection Type
- COM2 serial link SUB-D 9 RS232C/RS422/RS485 187.5 kbit/sEthernet TCP/IP 2 RJ45 10 BASE-T/100 BASE-TX/1000 BASE-T, COM1 serial link RJ45 RS485 110...115200 bit/s, COM1 serial link RJ45 RS485 187.5 kbit/s, COM2 serial link SUB-D 9 RS232C/RS422/RS485 110...115200 bit/sauxiliary port terminal blockexpansion unit fieldbus cardUSB 2.0 port 2 USB type A, USB 2.0 port mini B USB
Important Information Attributes
- Persona Type Ids
- EU, OM, OM8, PB, SC
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Software Package
- EcoStruxure Operator Terminal Expert, Vijeo Connect
- Carbon Footprint Of The Distribution Phase [A4]
- 0.31709, 0.3 kg CO2 eq.
- Carbon Footprint Of The Installation Phase [A5]
- 0.31815, 0.3 kg CO2 eq.
- Carbon Footprint Of The Use Phase [B2 B3 B4 B6]
- 1 010 kg CO2 eq., 1010.4285714285712
- Local Publishable Date
- 2026-01-12
- Stocking Flag
- N
- Device Type
- HMI - Graphical display unit
- Traceability
- Yes
- Average Life Duration
- 7 year(s)
- Weee Applicability
- Finished product
- Weee Product Category
- 5
- Eoli Availability Display
- Yes
- Reach Full Compliance Status
- Reference contains Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Reference contains Substances of Very High Concern above the threshold
- Rohs Eur Status
- Compliant By Exemption
- Rohs Eur Full Compliance Status
- Compliant By Exemption
- China Rohs Label
- 4
- Without Single Use Plastic
- No
- Tier Id
- 1
- Function Option Id
- STANDARD
- Product Kit Identifier
- N
- Device Short Name
- eXtreme Box full coated
- Environmental Characteristic
- 3C3
- Number Of Slots
- 2 slot(s) for SD card
- Processor Name
- ARM Cortex-A9
- Product Or Component Type
- base unit
- Resistance To Electrostatic Discharge
- 6 kV contact discharge IEC 61000-4-2 level 38 kV air discharge IEC 61000-4-2 level 3
- Returnability
- Yes
- Software Version
- v5.9.4
- Total Lifecycle Carbon Footprint
- 1 293 kg CO2 eq.
- Vibration Resistance
- 7 mm 5-9 Hz) X, Y, Z directions for 10 cycles (approx. 100 min) IEC 61131-219.6 m/s² 9-150 Hz) IEC 61131-2
- Pep Code
- ENVPEP1403023EN
- Pep Verification Date
- 2024-02-02
- Psr Version
- PSR-0005-ed2-2016 03 29
- Data Source
- extrapolated product
- Functional-unit Quantity
- 1
- Reference Lifetime In Y
- 10
- Energy Model - Manufacturing [A1-a3]
- Electricity Mix; Production mix; Low voltage; ID
- Energy Model - Use [B6]
- Electricity Mix; Production mix; Low voltage; FR
- Recyclability Potential In %
- 57
- Width Nominal
- 188 mm
- F-gas Free
- Only air and vacuum used for insulation / breaking, no F-gas including SF6
- Halogen-free Status
- Product contains halogen above thresholds
- Package Weight(Lbs)
- 1.284 kg
- Take-back
- No
- Acidification (Ap) (Mole Of H+ Equiv) Manufacturing [A1-a3]
- 1.6987
- Climate Change - Fossil Fuels ( Kg Co2 Eq.) Benefits/Loads Beyond System Boundaries [D]
- -6.6199
- Climate Change - Total ( Kg Co2 Eq.) Benefits/Loads Beyond System Boundaries [D]
- -6.8154
- Depletion Of Abiotic Resources - Fossil Fuels (Mj) Distribution [A4]
- 3.8502
- Depletion Of Abiotic Resources - Fossil Fuels (Mj) End Of Life [C1-c4]
- 21.95
- Ecotoxicity (Fresh Water) (Ctue) Manufacturing [A1-a3]
- 3678.2
- Ecotoxicity (Fresh Water) (Ctue) Installation [A5]
- 2.3383
- Ecotoxicity (Fresh Water) (Ctue) Benefits/Loads Beyond System Boundaries [D]
- -455.41
- Hazardous Waste Disposed Of (Kg) Benefits/Loads Beyond System Boundaries [D]
- -11.837
- Ionizing Radiation Human Health (Kbq Of U235 Equiv.) Benefits/Loads Beyond System Boundaries [D]
- -10.549
- Net Use Of Fresh Water (M3) Manufacturing [A1-a3]
- 1.4317
- Non-hazardous Waste Disposed Of (Kg) Installation [A5]
- 1.0313
- Terrestrial Eutrophication (Mole Of N Equiv) Manufacturing [A1-a3]
- 2.3827
- Total Use Of Non-renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Manufacturing [A1-a3]
- 6.7216
- Total Use Of Primary Energy During The Life Cycle (Mj) Manufacturing [A1-a3]
- 3336.5
- Total Use Of Primary Energy During The Life Cycle (Mj) Installation [A5]
- 3.5442
- Total Use Of Primary Energy During The Life Cycle (Mj) Benefits/Loads Beyond System Boundaries [D]
- -96.565
- Total Use Of Renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Benefits/Loads Beyond System Boundaries [D]
- -5.1978
- Use Of Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Manufacturing [A1-a3]
- 6.7216
- Use Of Non-renewable Primary Energy Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Manufacturing [A1-a3]
- 3221.5
- Use Of Non-renewable Primary Energy Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Installation [A5]
- 3.3007
- Use Of Non-renewable Primary Energy Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Benefits/Loads Beyond System Boundaries [D]
- -91.086
- Use Of Renewable Primary Energy Resources Used As Raw Materials (Mj) Manufacturing [A1-a3]
- 3.3709
- Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials (Mj) Manufacturing [A1-a3]
- 104.89
- Water Use (M3 Eq) Manufacturing [A1-a3]
- 61.49
- Customs Code
- 8537109170
Persona Type NamesEnd User, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician
Market SegmentationCommercial, Industrial
Certificate AgencyCE, KC, RCM, EAC, ATEX zone 2/22, IEC-Ex, UL, CSA, UKCA, UKEX
Carbon Footprint Of The End-of-life Phase [C1 To C4]0.7 kg CO2 eq., 0.68851
Carbon Footprint Of The Manufacturing Phase [A1 To A3]kg CO2 eq., 281
Local Data StatusPublishable
Return IndicatorY
Stock Policy2
ServiceabilityYes
Field Service DivisionIDIBS
Manufacturing Carbon Footprint281
Weee ScopeIn
Scope PerimeterAt least in Europe
End Of Life Doc RefENVEOLI1403023EN
Reach Full Compliance Status IdCONTAINS_SVHC
Rohs Eur In ScopeNo
Rohs Eur Conformity Date2514
China Rohs In ScopeYes
With Recycled CardboardYes
Product Contributes To Saved And Avoided EmissionsNo
Tier1
Function OptionStandard
Data Storage Equipment1 GB SD card
Electromagnetic Compatibilityelectrostatic discharge immunity test conforming to IEC 61000-4-2 level 3
Memory Description256 MB RAM internal 2 x 13 mm board)
Power Consumption In W20.0 W
Product AvailabilityStock - Normally stocked in distribution facility
Range Of ProductHarmony GTUX
Resistance To Fast Transients1 kV IEC 61000-4-4 signal ports)2 kV IEC 61000-4-4 power ports)
Shock Resistance392 m/s² X, Y, Z directions for 3 times)IEC 61131-2
Sustainable PackagingNo
Type Of Coolingnatural convection
Weee LabelThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Database Version2022-01
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent internal review
Functional-unit DescriptionHarmony GTU base unit during 10 years and maximum use rate at 35W, based on below function:& 10 - Ethernet& 10 - COM port: RS232C/RS422/RS485& 10 - Auxiliary port& 10 - Expansion unit fieldbus card& 10 - USB 2.0 port 3 USB type A & 10 - USB 2.0 port mini B USB& 10 - DVI-D video port DVI-D& 10 - Microphone mini-jack& 10,in accordance with the relevant standards:& 10 - CSA C22.2 No 142& 10 - ANSI/ISA 12-12-01& 10 - UL 508& 10 - Class I division 2 CSA C22.2 No 213& 10 - IEC 61132-2
Functional-unit UnitUnit
Energy Consumption On Product Lifetime In Kwh2190
Energy Model - Installation [A5]Electricity Mix; Production mix; Low voltage; FR
Energy Model - End Of Life [C1-c4]Electricity Mix; Production mix; Low voltage; FR
Height Nominal131 mm
[Us] Rated Supply Voltage12 V DC power supply
F-gas Usage PerformanceOnly air and vacuum used for insulation / breaking, no F-gas including SF6
Nbr. Of Units In Pkg.1
Silicone-freeNo
Warranty (In Months)18
Climate Change - Fossil Fuels ( Kg Co2 Eq.) Manufacturing [A1-a3]280.67
Climate Change - Total ( Kg Co2 Eq.) Manufacturing [A1-a3]281
Depletion Of Abiotic Resources - Fossil Fuels (Mj) Manufacturing [A1-a3]3228.3
Depletion Of Abiotic Resources - Fossil Fuels (Mj) Installation [A5]3.3007
Depletion Of Abiotic Resources - Fossil Fuels (Mj) Benefits/Loads Beyond System Boundaries [D]-91.368
Ecotoxicity (Fresh Water) (Ctue) Distribution [A4]1.3004
Ecotoxicity (Fresh Water) (Ctue) End Of Life [C1-c4]22.323
Hazardous Waste Disposed Of (Kg) Manufacturing [A1-a3]866.23
Ionizing Radiation Human Health (Kbq Of U235 Equiv.) Manufacturing [A1-a3]75.222
Materials For Recycling (Kg) Installation [A5]0.18
Non-hazardous Waste Disposed Of (Kg) Manufacturing [A1-a3]66.84
Non-hazardous Waste Disposed Of (Kg) Benefits/Loads Beyond System Boundaries [D]-14.794
Total Use Of Non-renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Total Life Cycle6.7216
Total Use Of Non-renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Benefits/Loads Beyond System Boundaries [D]-0.282
Total Use Of Primary Energy During The Life Cycle (Mj) Distribution [A4]3.8503
Total Use Of Primary Energy During The Life Cycle (Mj) End Of Life [C1-c4]22.087
Total Use Of Renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Manufacturing [A1-a3]108.26
Use Of Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Total Life Cycle6.7216
Use Of Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Benefits/Loads Beyond System Boundaries [D]-0.282
Use Of Non-renewable Primary Energy Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Distribution [A4]3.8502
Use Of Non-renewable Primary Energy Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) End Of Life [C1-c4]21.95
Use Of Renewable Primary Energy Resources Used As Raw Materials (Mj) Total Life Cycle3.3709
Use Of Renewable Primary Energy Resources Used As Raw Materials (Mj) Benefits/Loads Beyond System Boundaries [D]-3.132
Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials (Mj) Benefits/Loads Beyond System Boundaries [D]-2.0658
Water Use (M3 Eq) Benefits/Loads Beyond System Boundaries [D]-1.7162
Environment Attributes Main
- Ambient Air Temperature For Operation
- -30-70 °C IEC 61131-2, -30-70 °C IEC 61131-2-30-70 °C IEC 61131-2, -30-70 °C IEC 61131-2
- Halogene Performance
- Product contains halogen above thresholds
- China Rohs Regulation
- X
- Silicon Free
- No
- Ambient Air Temperature For Storage
- -30-70 °C-30-70 °C
- Environmental Disclosure
- ENVPEP1403023EN
- Halogen Content Performance
- Product contains halogen above thresholds
- Packaging Made With Recycled Cardboard
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Pep Code
- ENVPEP1403023EN
- Pcr Version
- PEP-PCR-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent internal review
Take BackNo
Recycled Metal Content At Cr Level0 %
Mercury FreeYes
Carbon Footprint1292.7523214285711
Circularity ProfileENVEOLI1403023EN
Eu Rohs DirectiveCompliant By Exemption
Operating Altitude6561.68 ft (2000 m)
Packaging Without Single Use PlasticNo
Relative Humidity10-90 % non-condensing
Pep Verification Date2024-02-02
Psr VersionPSR-0005-ed2-2016 03 29
General Attributes
- Product Or Component Type
- base unit
Range Of ProductHarmony GTUX
ETIM
- ETIM 8
- EC001412
ETIM 9EC001412
