Thomas & Betts

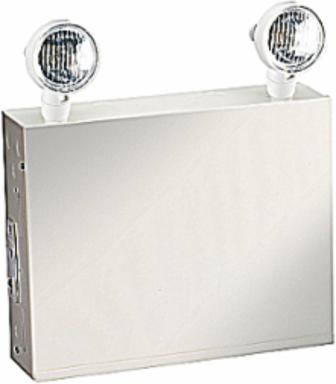

Thomas & Betts 24ESLNX432U/2LL Emergency Battery Unit, 15-1/2 Inch x 13-1/2 Inch, 432W, Lead-Calcium

Emergency Battery Unit, 15-1/2 Inch x 13-1/2 Inch, 432W, Lead-Calcium
  • MPN: 24ESLNX432U/2LL
  • PPN: T-B-24ESLNX432U/2LL

Spec sheet

In Stock

Company Stock:

00

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$3466.67/ EA

Description

Battery Unit, Voltage DC: 24V, Unit Type: NEMA-4X, Battery Type: lead-calcium, Battery Wattage: 432W, 120/347VAC, self-powered, diagnostics, audible, two lamps, Lamp Type: MR16 LED, Lamp Voltage: 24V, Lamp Wattage: 4W, Head Style: shielded, Battery Run Time (Minimum): 30 minutes

Features

  • Removable front panel on cabinet provides easy access and allows unit to be mounted at ceiling height
  • Solid-state pulse-type charger current-limited, temperature-compensated, short-circuit proof and reverse-polarity protected.
  • Unit comes standard with electronic lockout and brownout circuits
  • Sealed dust-proof transfer relay, test switch and LED indicator lights
  • NEXUS compatible

Specifications

North American Specifications (UNSPSC)

UNSPSC
39111709 Emergency light unit
Brand Name
Emergi-Lite
Application
Industrial
Wattage
432W
Battery
Lead-calcium
Lamp Type
MR16 LED
Size
15-1/2 Inches Height x 13-1/2 Inches Width
Lamp Wattage
4W
IGCC3940 Emergency light unit
TypeBattery Unit
StandardCSA
Voltage Rating120/347VAC, 24VDC
Battery Runtime30 minutes
Number Of Lamps2
MaterialFiberglass-reinforced polyester

Packaging

Outer Quantity
1
Weight Uom
52 lbs. Each
Outer Dimensions (inches)1x1x1
