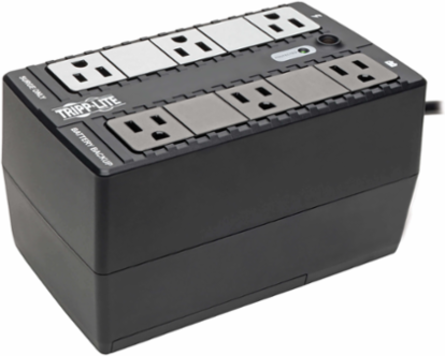

Tripp Lite BC350 120V 350VA 210W Standby UPS - 6 NEMA 5-15R Outlets, 50/60 Hz, 5-15P Plug, Desktop/Wall Mount
Tripp Lite BC350 120V 350VA 210W Standby UPS - 6 NEMA 5-15R Outlets, 50/60 Hz, 5-15P Plug, Desktop/Wall Mount
- MPN: BC350
- UPC: 037332210937
- PPN: TRP-BC350
Spec sheet
Available to Order
Company Stock:
0
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$135.89/ EA
Description
120V 350VA 210W Standby UPS - 6 NEMA 5-15R Outlets, 50/60 Hz, 5-15P Plug, Desktop/Wall Mount
Features
- Protects equipment against blackouts, brownouts, overvoltages, surges and line noise
- Keeps AC power running during blackouts to allow time for file saves and safe shutdown

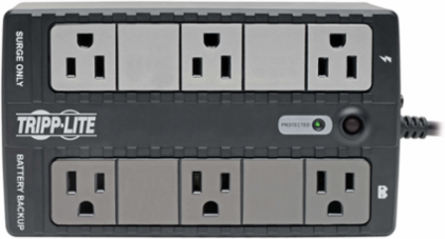

- 6 NEMA 5-15R outlets power and protect PC, home theater or digital signage equipment
- Home-friendly alarm remains silent in backup mode, sounding only when imperative
- High >98% efficiency with low BTU ratings saves electricity and lowers your energy costs
- 3-year limited warranty
- $100,000 Ultimate Lifetime Insurance
- 350VA/210W/120V Battery Backup for PCs, Home Theater and Digital Signage
- Allows Time to Back Up Critical Files During a Blackout
- 6 NEMA 5-15R Outlets Protect Your Connected Components
- 316 Joules Fight Back Against Unexpected Power Surges
- Combats Electromagnetic Interference That Can Harm Equipment
- Home-Friendly Alarm and Diagnostic LEDs Keep You Informed 24/7
- Compact Housing Compatible with Easy Desktop or Wall-Mount Installation
Specifications
Surge / Noise Suppression
- UPS AC Suppression Joule Rating
- 316
- EMI / RFI AC Noise Suppression
- Yes
UPS AC Suppression Response TimeInstantaneous
Battery
- Full Load Runtime (min.)
- 2 minutes (210W)
- DC System Voltage (VDC)
- 12
- Battery Access
- Includes bottom panel battery access door
- Expandable Runtime
- No
Half Load Runtime (min.)7 minutes (105W)
Internal UPS Replacement Battery CartridgeIMPORTANT BATTERY REPLACEMENT INFORMATION > If your BC350 UPS has no battery access door, please contact a local electronics repair technician to source and install a matching replacement battery; If your BC350 UPS does have a battery replacement door and the original battery inside has a rating of 12V 2.8AH, please contact Tripp Lite for assistance
Battery Replacement DescriptionReplaceable internal battery (see manual)
Certifications
- UPS Certifications
- Meets FCC Part 15 Category A (EMI); Tested to CSA (Canada); Tested to NOM (Mexico); Tested to UL1778 (USA)
UPS Certification DetailsCAN/CSA-C22.2 NO. 107.3:2014 3rd EDITION; Meets ISTA 2A Standard
Physical
- Installation Form Factors Supported with Included Accessories
- Tower; Ultra-compact desktop; Wallmount
- Primary Form Factor
- Desktop
- Primary UPS Height (mm)
- 105
- Shipping Dimensions (hwd / in.)
- 7.00 x 5.50 x 10.90
- UPS Housing Material
- ABS
- UPS Power Module Weight (kg)
- 1.80

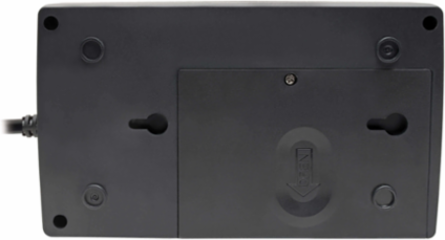

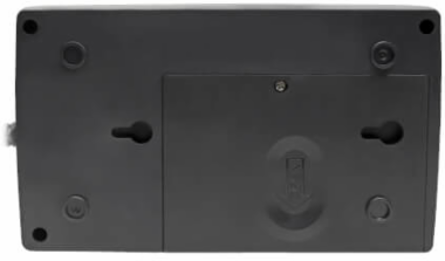

Optional Mounting Accessory NotesBottom panel keyhole mounting tabs enable wall-mount installation
Primary UPS Depth (mm)185
Primary UPS Width (mm)110
Shipping Weight (lbs.)5.04
UPS Power Module Dimensions (hwd, in.)4.13 x 4.33 x 7.28
UPS Power Module Weight (lbs.)3.96
User Interface, Alerts & Controls
- Switches
- Power switch enables UPS on / off control
- LED Indicators
- Single green LED reports Line Power Mode (ON continuous), Battery Backup mode (flashes ON every 10 seconds); See manual for additional LED notifications
Audible AlarmAlarm reports low-battery, fault, overload and replace battery conditions; Alarm remains silent during battery mode operation until low-battery status occurs; See manual for additional alarm notifications
Input
- Rated input current (Maximum Load)
- 5A
- UPS Input Connection Type
- 5-15P
- Recommended Electrical Service
- 15A 120V
Nominal Input Voltage(s) Supported120V AC
UPS Input Cord Length (ft.)5
Input PhaseSingle-Phase
Output
- Output Volt Amp Capacity (VA)
- 350
- Frequency Compatibility
- 50 / 60 Hz
- Output Voltage Regulation (Line Mode)
- 120V ±20%
- UPS Output Receptacles (Surge Suppression Only)
- 3 UPS outlets, 3 surge-only outlets
- Output AC Waveform (AC Mode)
- Sine wave
- Nominal Output Voltage(s) Supported
- 110V; 115V; 120V
- Individually Controllable Load Banks
- No
Output Watt Capacity (Watts)210
Frequency Compatibility DetailsAuto-sensing
Output Voltage Regulation (Battery Mode)120V ±10%
Hot-Swap PDU optionsPDUB15 (2U / 8 5-15R outlets)
Output AC Waveform (Battery Mode)PWM sine wave
Output Receptacles(6) 5-15R
Communications
- Communications Interface
- None
Environmental
- Operating Temperature Range
- +32 to +104 degrees Fahrenheit / 0 to +40 degrees Celsius
- Relative Humidity
- Up to 90%, non-condensing
- AC Mode Efficiency Rating (100% Load)
- >98%
Storage Temperature Range+5 to +122 degrees Fahrenheit / -15 to +45 degrees Celsius
AC Mode BTU / Hr. (Full Load)13.07
Overview
- UPC Code
- 037332210937
UPS TypeStandby
Special Features
- Cold Start (Startup in Battery Mode During a Power Failure)
- Cold-start operation supported
Green Energy-Saving FeaturesGreater than 95% efficiency - GREEN UPS
Warranty
- Product Warranty Period (U.S. & Canada)
- 3-year limited warranty
Connected Equipment Insurance (U.S., Canada & Puerto Rico)$100,000 Ultimate Lifetime Insurance
Line / Battery Transfer
- Transfer Time
- 6 milliseconds typical (10 milliseconds max)
- High Voltage Transfer to Battery Power (Setpoint)
- 145
Low Voltage Transfer to Battery Power (Setpoint)95
