Schmersal 103039749 BDF200 Safety Control Switch, IP65, 69 mm Height, Key Selector with M12 Connector
- MPN: 103039749
- PPN: SCM-103039749
CAD
$1303.62
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

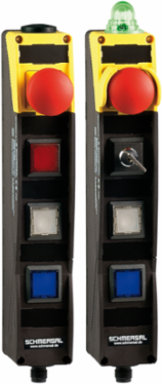

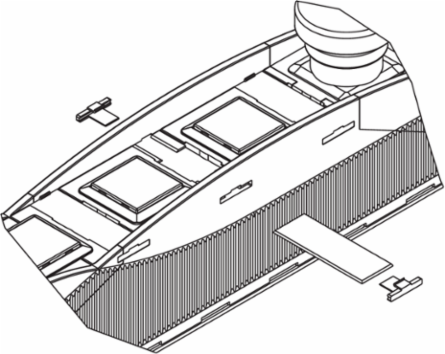

BDF200 Safety Control Switch, IP65, 69 mm Height, Key Selector with M12 Connector
Features
- Integrated AS-Interface
- with connector plug M12 bottom
- Pos 1: E-STOP
- Pos 2: Key selector switch, 2 positions
- Pos 3: illuminated pushbutton 2875 with changeable colors
- Pos 4: illuminated pushbutton 2875 with changeable colors
- slender shock-proof thermoplastic enclosure
- to be installed at an ergonomic favourable position
- to be fitted to commercial-off-the-shelf aluminium profiles
Documentation & Downloads
Specifications
Key Specifications
- Width
- 40 mm
- Depth
- 233.5 mm
Height69 mm
Electrical data - AS-Interface specification
- Note (AS-i Parameter bits)
- Set the parameter outputs to "1111" (0xF) | FID: periphery error
- AS-i Profile (Safety-Slave)
- S-7.B.F.F
- AS-i Input, Channel 2 (Safety-Slave)
- Data bits DI 2 / DI 3 = dynamic code transmission
- AS-i Output, DO 1 (Safety-Slave)
- Indicator lamp G24 green
- AS-i Output, DO 3 (Safety-Slave)
- No Function
- AS-i Version (A/B Slave)
- V 3.0
- AS-i Input, DI 0 (A/B Slave)
- Command device Position 4
- AS-i Input, DI 2 (A/B Slave)
- Command device Position 2
- AS-i Output, DO 0 (A/B Slave)
- Illuminated signal position 4
- AS-i Output, DO 1 (A/B Slave)
- Illuminated signal position 3
- AS-i AS-i Parameter bits (A/B Slave), P0 ... P3
- No function
- Note (AS-i Input module address)
- Preset to address 0, can be changed through AS-interface bus master or hand-held programming device
AS-i Version (Safety-Slave)V 3.0
AS-i Input, Channel 1 (Safety-Slave)Data bits DI 0 / DI 1 = dynamic code transmission
AS-i Output, DO 0 (Safety-Slave)Indicator lamp G24 red
AS-i Output, DO 2 (Safety-Slave)No Function
AS-i AS-i Parameter bits (Safety-Slave), P0 ... P3No function
AS-i Profile (A/B Slave)S-7.A.7.F
AS-i Input, DI 1 (A/B Slave)Command device Position 3
AS-i Input, DI 3 (A/B Slave)Command device Position 2
AS-i Output, DO 2 (A/B Slave)Illuminated signal position 2
AS-i Output, DO 3 (A/B Slave)No Function
AS-i Input module address0
NoteBoth AS-i slaves can be enabled and disabled through the integrated DIP switch. The addressing must take place via the M12 connector.

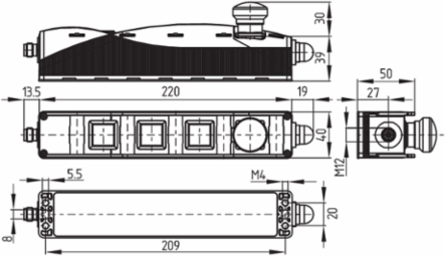

Mechanical data - Dimensions
- Width
- 40 mm
- Depth
- 233.5 mm
Height69 mm
Pin assignment
- PIN 1
- AS-Interface +
- PIN 3
- AS-Interface -
PIN 2n.c.
PIN 4n.c.
Ambient conditions - Insulation values
- Rated insulation voltage U
- 32 VDC
- Overvoltage category
- III
Rated impulse withstand voltage U0.8 kV
Degree of pollution3
General data - Features
- Indicator lamp
- No
General data
- Standards
- EN IEC 62026-2 | EN ISO 13849-1 | EN ISO 13850 | EN IEC 60947-5-1 | EN IEC 61508
- Enclosure material
- Plastic, glass-fibre reinforced thermoplastic, self-extinguishing
- Reaction time, maximum
- 100 ms
- Positions used, position 2
- Spring return key-operated switch, 1 touch position, automatic spring return to zero position
- Positions used, position 4
- Illuminated pushbutton, color exchangeable
Climatic stressDIN EN 60068
Gross weight280 g
Positions used, position 1Emergency stop pushbutton
Positions used, position 3Illuminated pushbutton; color exchangeable
Safety classification
- Standards
- EN IEC 61508
- Category
- 4
- Note (PFH-value)
- up to max. 5,000 switching cycles/year
- Mission time
- 20 Year(s)
Performance Level, up toe
PFH value1.40 x 10⁻⁸ /h
Safety Integrity Level (SIL), suitable for applications in3
Electrical data - AS Interface
- Rated operating voltage
- 18 ... 31.6 VDC (Protection against polarity reversal)
AS-i Current consumption, maximum150 mA
Ambient conditions
- Degree of protection
- IP65
- Storage and transport temperature, minimum
- -25 °C
- Resistance to vibrations
- 10 … 150 Hz, amplitude 0.35 mm / 5 g
- Protection class
- II
Ambient temperature-25 ... +65 °C
Storage and transport temperature, maximum+85 °C
Restistance to shock15 g / 11 ms
Mechanical data - Connection technique
- Termination
- Connector plug M12, 4-pole, (A-coding)
Mechanical data
- Mechanical life, Emergency-Stop button
- 100,000 Operations
Mechanical life, Command devices1,000,000 Operations
Approvals - Standards
- Certificates
- TÜV | cULus | ASi-SaW
