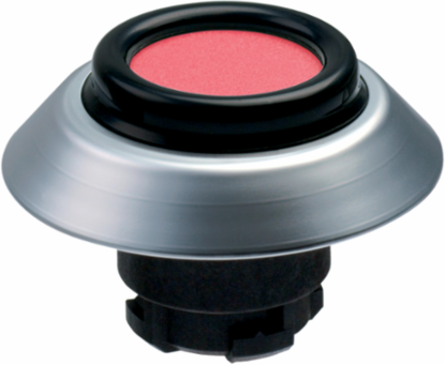

Schmersal 101163563 Pushbutton Switch, 22.3 mm Mounting Diameter, IP67/IP69K, 1,000,000 Operations

MPN: 101163563
PPN: SCM-101163563

$36.83

Available to Order

Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST

Available To Ship Immediately:0

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

Pushbutton Switch, 22.3 mm Mounting Diameter, IP67/IP69K, 1,000,000 Operations

Documentation & Downloads

Specifications

Key Specifications

Height	11 mm

Electrical data

Switching frequency	1,000 /h

Number of contact elements, maximum	3

Mechanical data - Dimensions

Height	11 mm
Mounting diameter	22.3 mm
Thickness of the front panel, maximum	6 mm

diameters for the actuating heads	44.5 mm
Thickness, of the front panel, minimum	1.5 mm
Spacing	50 x 50 mm

General data - Features

Mounting flange	Yes
Fully insulated	Yes

Probing possible	Yes

General data

Standards	EN IEC 60947-5-1 \| EN IEC 60947-1
Design	Tactile
Sealing type	Membrane \| Lip gaskets
Material of the front ring	ABS, chrome-plated
Colour of the front ring	Silver
Gross weight	25 g

Versions	Pushbutton
Installation conditions (mechanical)	arbitrarily
Material of the operators	ABS
Colour of the operating element	Red
Colour of the bellows	Black
