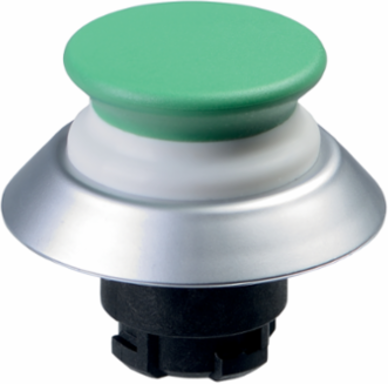

Schmersal 101163564 NDT Pushbutton Switch, 22.3 mm Mounting Diameter, IP67 Protection, 1.5 N Actuating Force
- MPN: 101163564
- PPN: SCM-101163564
CAD
$36.83
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
NDT Pushbutton Switch, 22.3 mm Mounting Diameter, IP67 Protection, 1.5 N Actuating Force
Documentation & Downloads
Specifications
Key Specifications
| Height | 11 mm |
|---|
Electrical data
| Switching frequency | 1,000 /h |
|---|
| Number of contact elements, maximum | 3 |
|---|
Mechanical data - Dimensions
| Height | 11 mm |
|---|---|
| Mounting diameter | 22.3 mm |
| Thickness of the front panel, maximum | 6 mm |
| diameters for the actuating heads | 44.5 mm |
|---|---|
| Thickness, of the front panel, minimum | 1.5 mm |
| Spacing | 50 x 50 mm |
General data - Features
| Mounting flange | Yes |
|---|---|
| Fully insulated | Yes |
| Probing possible | Yes |
|---|
General data
| Standards | EN IEC 60947-5-1 | EN IEC 60947-1 |
|---|---|
| Design | Tactile |
| Sealing type | Membrane | Lip gaskets |
| Material of the front ring | ABS, chrome-plated |
| Colour of the front ring | Silver |
| Gross weight | 25 g |
| Versions | Pushbutton |
|---|---|
| Installation conditions (mechanical) | arbitrarily |
| Material of the operators | ABS |
| Colour of the operating element | Green |
| Colour of the bellows | Black |
Ambient conditions
| Degree of protection | IP67 | IP69K |
|---|---|
| Resistance to vibrations | 10 - 150 Hz (0.5 mm / 5 g) |
| Ambient temperature | -25 ... +80 °C |
|---|---|
| Restistance to shock | 50 g |
Mechanical data
| Unlocking | without |
|---|---|
| Actuating stroke | 5 mm |
| Mounting | Mounting flange EFM |
| Mechanical life, minimum | 1,000,000 Operations |
|---|---|
| Actuating force, approx. | 1.5 N |
| Tightening torque of the screw | 0.6 Nm |
Approvals - Standards
| Certificates | BG | cULus | IPA |
|---|
