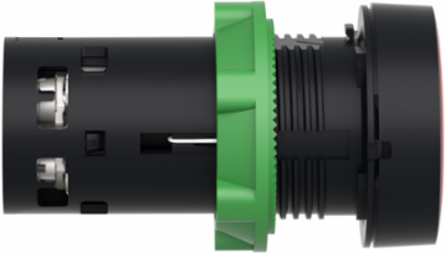

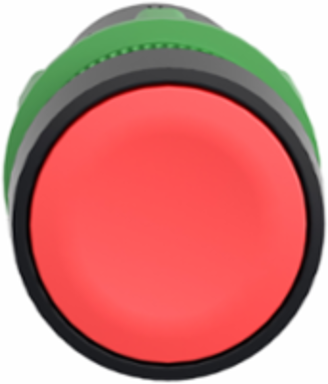

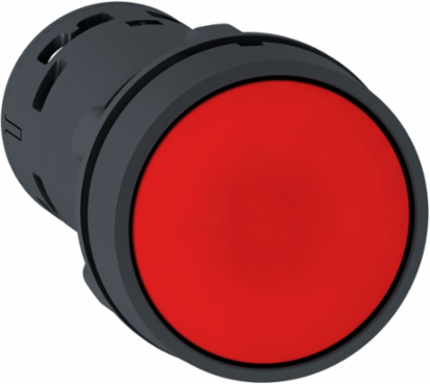

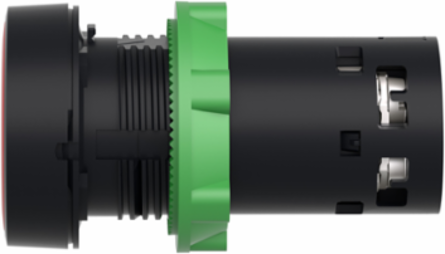

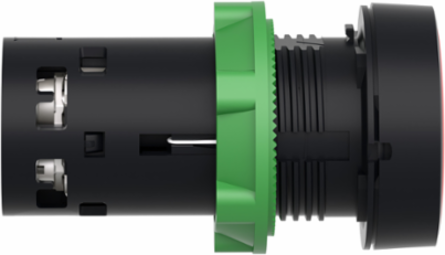

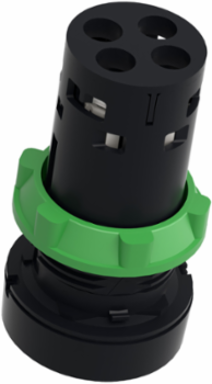

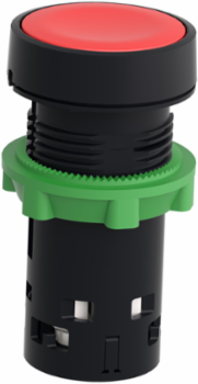

Schneider Electric XB7NA42 Harmony XB7 Monolithic Red Push Button 22mm, Spring Return, 1NC, IP65
- MPN: XB7NA42
- PPN: SCH-XB7NA42
CAD
$30.00
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Description
This Harmony XB7, flush monolithic red push button operates with a spring return / impulse mechanism and uses screw-clamp terminals. It is easily installed into a standard 22mm diameter panel cut-outs and connected to control circuits with classic screw-clamp connections. Its schematic is clearly distinguishable thanks to clear colors and markings, minimizing errors during initial wiring and later maintenance operations. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP65, making it ideal for operation in harsh environments. It has a double insulated plastic bezel. Its wide range of operating temperatures from -25°C to 70°C allows versatility in usage of product.
Documentation & Downloads
Specifications
Additional
- Rated Operational Current
- 0.1 A 250 V DC-13, 0.22 A 125 V DC-13, 0.3 A 240 V AC-14, 0.6 A 120 V AC-14 IEC 60947-5-1
- Electrical Durability
- 1,000,000 cycles DC-13 0.3 A 24 V, AC-15 0.09 A 240 V IEC 60947-5-1
- Rated Insulation Voltage
- 250 V IEC 60947-1
- Overvoltage Category
- Class II IEC 61140

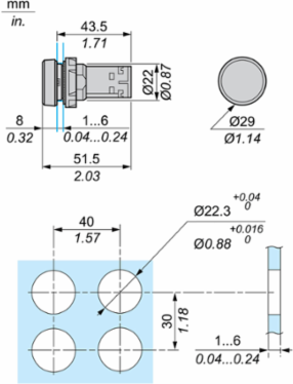

- Overall Dimensions
- 29 mm width x 29 mm height x 51.5 mm depth
- Fixing Mode
- Fixing nut beneath head, 2-2.4 N.m (17.7 to 21.2 lbf.in)
- Panel Thickness Support
- Metal 1 to 6 mm, Plastic 2 to 6 mm
- Vibration Resistance
- 5 gn (2 to 500 Hz) IEC 60068-2-6
- Contact Operation
- Slow-break IEC 60947-5-1
- Shape of Signaling Unit Head
- Round
- Material
- Plastic
- NEMA Degree of Protection
- NEMA 3, NEMA 12 UL 50 E
- Ambient Air Temperature for Storage
- -40 to 70 °C
- Device Presentation
- Monolithic product
- Environmental Compliance
- Pro-active EU RoHS compliance (out of scope), REACH SVHC, WEEE compliant, China RoHS, Mercury Free, Toxic Heavy Metal Free
- Electrical Reliability
- λ ≤ 10⁻⁶ at 17 V, 5 mA IEC 60947-5-4
Mechanical Durability1,000,000 cycles
Short-Circuit Protection4 A cartridge fuse gG IEC 60947-5-1
Rated Impulse Withstand Voltage4 kV IEC 60947-1
Mounting Diameter22 mm
Net Weight0.021 kg
Fixing Hole Diameter22.5 mm +0.4 / -0 mm IEC 60947-1

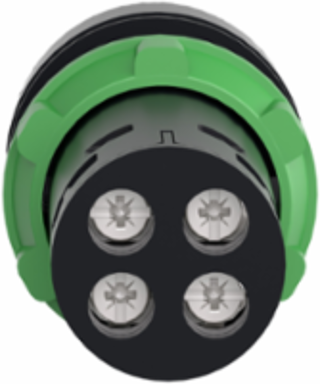

Connection TerminalsScrew clamp terminals, ≤ 2 x 1.5 mm² with cable end; 1 x 0.34 to 2 x 2.5 mm² without cable end IEC 60947-1
Shock Resistance50 gn 11 ms, 30 gn 18 ms half sine wave acceleration IEC 60068-2-27
Contact Composition1 NC
Shape of Screw HeadCross JIS No 1, Cross Philips No 1, Cross Pozidriv No 1, Slotted flat Ø4 mm and Ø5.5 mm
IP Degree of ProtectionIP65 front face, IP20 rear face IEC 60529
Ambient Air Temperature for Operation-25 to 70 °C
Overvoltage CategoryClass II IEC 61140
Country of OriginIndonesia
Product CertificationsUL 508, CSA C22.2 No 14, IEC 60947-1, IEC 60947-5-1, JIS C8201-5-1, JIS C8201-1, GOST, CCC
