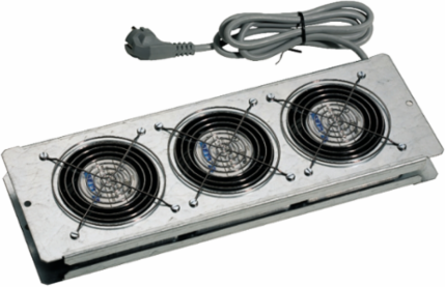

Schneider Electric NSYECVT3V440 Actassi Ventilation Plate with 3 Fans, 170 m3/h Air Flow, Galvanized Steel
- MPN: NSYECVT3V440
- PPN: SCH-NSYECVT3V440
CAD
$496.15
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
This product is a blanking plate with fans to be fixed on the the internal surface of the base or roof or on a 6U knock-out panel of the reduced rear door. Equipped with 3 fans, free flow of 170 m3/h each, 220 V-50/60 Hz, installed wired with terminal board. A 3-m power cord is supplied.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Spain, France
Important Information Attributes
- Persona Type Ids
- LC, OM, OM8, PB, SI
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Cable Gland Type
- with 3 fans, ventilated
- Local Data Status
- Publishable
- Return Indicator
- N
- Stock Policy
- 2
- Weee Product Category
- 5
- Eoli Availability Display
- No need of specific recycling operations
- Reach Full Compliance Status Id
- CONTAINS_SVHC
- Rohs Eur In Scope
- Yes
- Rohs Eur Conformity Date
- 1916
- China Rohs In Scope
- Yes
- With Recycled Cardboard
- No
- Product Contributes To Saved And Avoided Emissions
- No
- Tier
- 2
- Function Option
- Standard
- Device Application
- electronic application
- Fixing Mode
- by screws
- Mounting Location
- on outside of the roof
- Product Availability
- Non-Stock - Not normally stocked in distribution facility
- Quantity Per Set
- set of 1
- Range Of Product
- Actassi
- Sustainable Packaging
- No
- Accessory Separate Part Type
- ventilation plate
- Pep Code
- ENVPEP1001003EN
Persona Type NamesContractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, System Integrator
Market SegmentationCommercial, Industrial
Device Compositionfixing elements, 1 plate, 1 2 m power cord
Local Publishable Date2025-04-05
Stocking FlagY
Weee ScopeIn
Scope PerimeterAt least in Europe
Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold
Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant By Exemption
Rohs Eur Full Compliance StatusCompliant By Exemption
China Rohs Label7
Without Single Use PlasticNo
Tier Id2
Function Option IdSTANDARD
Product Kit IdentifierN
Energy Efficiency OptimizedFalse
Materialplate galvanised steel
Noise Level34 dB
Product Or Component Typefan
RangeActassi
ReturnabilityNo
Weee LabelThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Warranty In Months18
Width Nominalfixing centers: 420 mm
Environment Attributes Main
- Take Back
- No
- China Rohs Regulation
- X
- Air Flow
- 170 m3/h
- Eu Rohs Directive
- Compliant By Exemption
- Packaging Without Single Use Plastic
- No
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
Recycled Metal Content At Cr Level0 %
Mercury FreeYes
Environmental DisclosureENVPEP1001003EN
Packaging Made With Recycled CardboardNo
Product CompatibilitySF roof for Actassi plates
Pep CodeENVPEP1001003EN
General Attributes
- Product Or Component Type
- fan
Range Of ProductActassi
ETIM
- ETIM 8
- EC000320
ETIM 9EC000320
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
