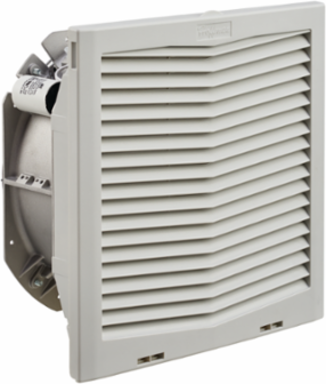

nVent Hoffman HF1316414R HF13 Side-Mount Filter Fan 115V 395CFM Light Gray Reverse Flow
- MPN: HF1316414R
- UPC: 783510342531
- PPN: HOF-HF1316414R
- UNSPSC: 40101604
CAD
$668.77
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
HF Side-Mount Filter Fans provide fresh air cooling, ease of installation and tool-less maintenance. This HF13 Side-Mount Filter Fan, HF1316414R item is rated 115V 395CFM colored Lt Gray, Reverse Flow.
Features
- Click-Fit design quickly installs into enclosure wall; no tools or screws required
- Opens with the flick of a finger for easy filter replacement
- Enclosure side wall mounting
- Reverse airflow option on HF13 models available to push/pull air through higher static pressure
- Standard rope gasket provides proper seal to the enclosure
- Similar cut-out sizes as other filter fan manufacturers
- Terminal block connections
- Optional thermostat available to save energy and extend service life
- Hinged grille remains attached after opening
- Size rage from 4 inch (102 mm) to 13 inch (325 mm)
- Free air flow from 21 CFM (36 m3/hr.) to 484 CFM (822 m3/hr.)
- Service life hours from 40,000 to 100,000 hours
- Operating temperature range of -4 F/-20 C to 149 F/65 C
Documentation & Downloads
Specifications
Additional
- Voltage
- 115 VAC Reverse
- Power Consumption
- 65/72 Watts
- Free Airflow
- 395 CFM (671 m3/hr)
- Size
- 12.8 x 12.82 x 6.36 in
- Width (W)
- 326 mm
- Weight
- 9.4 lb
- Housing Material
- Non-metallic
- Finish
- Light Gray
- Fan RPM
- 2600/3000
- Compliance
- UL Listed, CE, EAC, Type 12, IP55 option
Nominal Current0.76/0.88 A
Flow Rate395 CFM (671 m3/hr)
Operating Temperature-4 to 149 deg F
Height (H)325 mm
Depth (D)162 mm
MaterialPlastic, UV-resistant (RAL 7035 Light Gray)
ColorLight Gray (RAL 7035)
Sound Pressure57/59 dBA (50/60 Hz)
Power ConnectionTerminal Block
