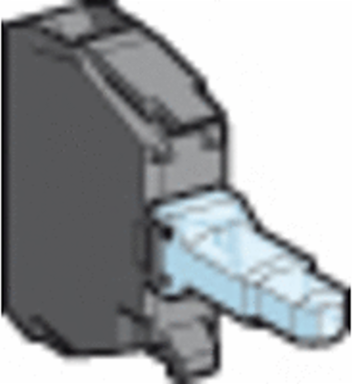

Schneider Electric ZBVG6 Light block for head 22mm, Harmony XB4, blue, integral LED, 110...120V AC
- MPN: ZBVG6
- PPN: SCH-ZBVG6
CAD
$50.43
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Light block for head 22mm, Harmony XB4, blue, integral LED, 110...120V AC
Documentation & Downloads
Specifications
Complementary
- Product weight
- 0.04 lb(US) (0.017 kg)
- Shape of screw head
- Slotted head compatible with flat Ø 5.5 mm screwdriver
- Shape of screw head
- Cross head compatible with pozidriv No 1 screwdriver
- Current consumption
- 14 mA
- Surge withstand
- 1 kV conforming to IEC 61000-4-5
- Electrical composition code
- PF1
- Electrical composition code
- P1
- Electrical composition code
- M10
- Electrical composition code
- M5
- Electrical composition code
- M3
- Electrical composition code
- M1
Tightening torque7.08...10.62 lbf.in (0.8...1.2 N.m) conforming to EN 60947-1
Shape of screw headSlotted head compatible with flat Ø 4 mm screwdriver
Shape of screw headCross head compatible with Philips no 1 screwdriver
Service life100000 h at rated voltage and 25 °C
Mounting of blockFront mounting
Electrical composition codeP2
Electrical composition codeMF1
Electrical composition codeM6
Electrical composition codeM4
Electrical composition codeM2
Main
- Commercial Status
- Commercialised
- Range of product
- Harmony XB5
- Device short name
- ZBV
- Connections - terminals
- Screw clamp terminals: >= 1 x 0.22 mm² without cable end conforming to EN 60947-1
- Signalling type
- Steady
- Bulb base
- Integral LED
- Light source colour
- Blue
Range of productHarmony XB4
Product or component typeLight block
Sale per indivisible quantity5
Connections - terminalsScrew clamp terminals:
Light sourceProtected LED
Light block supplyDirect
[Us] rated supply voltage110...120 V AC, 50/60 Hz
Environment
- Protective treatment
- TH
- Ambient air temperature for operation
- -13...158 °F (-25...70 °C)
- Standards
- EN/IEC 60947-1
- Standards
- EN/IEC 60947-5-4
- Standards
- JIS C 4520
- Standards
- CSA C22.2 No 14
- Product certifications
- UL listed
- Resistance to electromagnetic fields
- 9.14 V/yd (10 V/m) conforming to IEC 61000-4-3
- Resistance to electrostatic discharge
- 6 kV on contact (on metal parts) conforming to IEC 61000-4-2
Ambient air temperature for storage-40...158 °F (-40...70 °C)
IP degree of protectionIP20 conforming to IEC 60529
StandardsEN/IEC 60947-5-1
StandardsEN/IEC 60947-5-5
StandardsUL 508
Product certificationsCSA
Resistance to fast transients2 kV conforming to IEC 61000-4-4
Resistance to electrostatic discharge8 kV in free air (in insulating parts) conforming to IEC 61000-4-2
Electromagnetic emissionClass B conforming to IEC 55011
Ordering and Shipping Details
- Category
- 22469 - PUSHBUTTON,22MM ACCESSORIES-NEW
- GTIN
- 00785901355472
- Product availability
- Stock - Normally stocked in distribution facility
- Country of origin
- FR
Discount ScheduleCS2
Nbr. of units in pkg.5
ReturnabilityY
Contractual Warranty
- Warranty period
- 18 months
