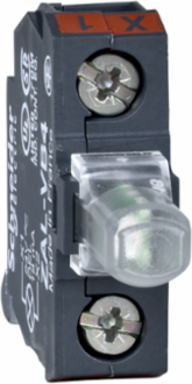

Schneider Electric ZALVB6 Light block for head 22mm, Harmony XALD, XALK, blue, integral LED, rear mounting, screw clamp terminal, 24V AC DC
- MPN: ZALVB6
- PPN: SCH-ZALVB6
CAD
$47.77
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
This blue light block with integral LED allows fast and easy replacement and configuration of your signaling units. It is supplied with 24V AC/DC and it connects with simple screw-clamp connections. It is easily installed on compatible illuminated push button or selector switch units via clip together assembly. It is compatible with Harmony XB5 diameter 22mm control and signaling units. It enables visual distinction of signaling units via illumination by integral LED. It protects operators from unexpected contact with live circuits thanks to its IP20 protection index.
Documentation & Downloads
Specifications
Key Specifications
- Product Destination
- for XB5 Ø 22 mm control and signalling units
- Range Of Product
- Harmony XAL
- Sale Per Indivisible Quantity
- 5
- Device Short Name
- ZALV
Mounting Of Blockrear mounting
Product Or Component Typelight block
Light Source Colourblue
[Us] Rated Supply Voltage24 V AC/DC
Complementary
- Light Source
- integrated and protected LED
- Electrical Composition Code
- MR1 || PR1
- [Uimp] Rated Impulse Withstand Voltage
- 4 kV EN/IEC 60947-1
- Connections - Terminals
- screw clamp terminals, <= 2 x 1.5 mm² with cable end EN/IEC 60947-1 || screw clamp terminals, >= 1 x 0.22 mm² without cable end EN/IEC 60947-1
- Surge Withstand
- 1 kV IEC 61000-5-1
- Signalling Type
- steady
- Assembly Style
- for customer assembly
- Shape Of Screw Head
- cross Philips no 1 || cross pozidriv No 1 || slotted flat Ø 4 mm || slotted flat Ø 5.5 mm
Light Block Supplydirect
Net Weight0.015 kg
Current Consumption18 mA
Service Life100000 h at rated voltage and 25 °C
[Ui] Rated Insulation Voltage250 V 3)EN/IEC 60947-1
Supply Voltage Limits19.2-30 V DC || 21.6-26.4 V AC
Tightening Torque0.8-1.2 N.m EN 60947-1
Bulb Baseintegral LED
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP110802EN
- Toxic Heavy Metal Free
- Yes
- Reach Free Of Svhc
- Yes
- China Rohs Regulation
- X
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
Reach RegulationFree of Substances of Very High Concern above the threshold
WeeeThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
Eu Rohs DirectivePro-active compliance (Product out of EU RoHS legal scope)
Environment
- Product Certifications
- CSA || UL listed
- Resistance To Electromagnetic Fields
- 10 V/m IEC 61000-4-3
- Shock Resistance
- 30 gn 18 ms) half sine wave acceleration EN/IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration EN/IEC 60068-2-27
- Ip Degree Of Protection
- IP20 IEC 60529
- Resistance To Electrostatic Discharge
- 6 kV on contact (on metal parts) IEC 61000-4-2 || 8 kV in free air (in insulating parts) IEC 61000-4-2
- Resistance To Fast Transients
- 2 kV IEC 61000-4-4
Ambient Air Temperature For Operation-40-70 °C
StandardsEN/IEC 60947-5-4 || CSA C22.2 No 14 || UL 508 || JIS C8201-5-1 || EN/IEC 60947-1 || EN/IEC 60947-5-5 || EN/IEC 60947-5-1 || JIS C8201-1
Vibration Resistance5 gn 12-500 Hz)IEC 60068-2-6
Ambient Air Temperature For Storage-40-70 °C
Protective TreatmentTH
Electromagnetic Emissionclass B IEC 55011
