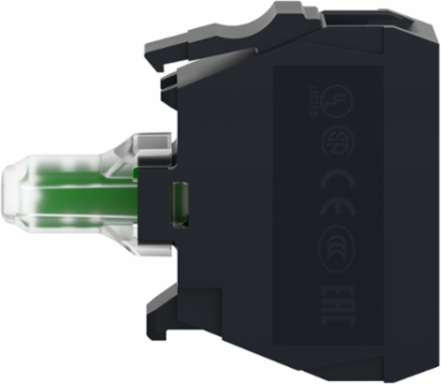

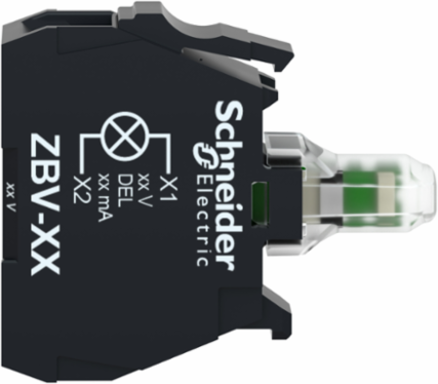

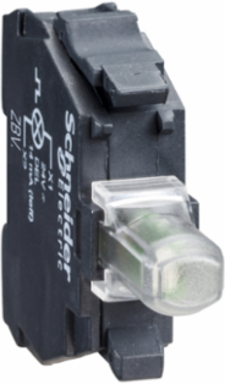

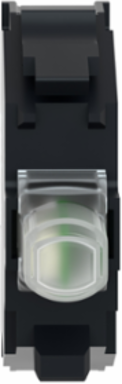

Schneider Electric ZBVBG6 Light block for head 22mm, Harmony XB4, blue, integral LED, screw clamp terminal, 24…120V AC DC
Schneider Electric ZBVBG6 Light block for head 22mm, Harmony XB4, blue, integral LED, screw clamp terminal, 24…120V AC DC
- MPN: ZBVBG6
- UPC: 785901578857
- PPN: SCH-ZBVBG6
Available to Order
Company Stock:
0
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Looking to buy a large quantity?
To view product inventory
CAD$67.02/ EA
Description
This Harmony ZB, blue light block operates with an integral LED. It is supplied with 24V to 120V AC/DC and uses screw-clamp terminals. It has a plastic body. It is compatible with Harmony XB4 and XB5. This light block allows fast and easy replacement and configuration of your signaling units. It is easily installed and replaced on compatible illuminated push-button or selector switch units via clip together assembly and connected with simple screw-clamp connections. It enables visual distinction of signaling units via illumination by integral LED. It protects operators from unexpected contact with live circuits thanks to its IP20 protection index. Its wide range of operating temperatures from -40°C to 70°C allows versatility in usage of product. Vibration resistant screw clamp connection terminals ensure high vibration resistance making product suitable installation on high impact machine.
Specifications
Key Specifications
- Range Of Product
- Harmony XB4 || Harmony XB5
- Light Block Supply
- direct
- Connections - Terminals
- screw clamp terminals, <= 2 x 1.5 mm² with cable end EN 60947-1 || screw clamp terminals, >= 1 x 0.22 mm² without cable end EN 60947-1
- Signalling Type
- steady
- Device Short Name
- ZBV
- Bulb Base
- integral LED
Light Sourceprotected LED
Product Or Component Typelight block
Sale Per Indivisible Quantity5
Light Source Colourblue
[Us] Rated Supply Voltage24...120 V AC/DC 50/60 Hz
Contractual warranty
- Warranty
- 18 months
Complementary
- Mounting Of Block
- front mounting
- Net Weight
- 0.017 kg
- Service Life
- 100000 h at rated voltage and 25 °C
- Supply Voltage Limits
- 19.2-132 V DC || 21.6-132 V AC
- Shape Of Screw Head
- cross Philips no 1 || cross pozidriv No 1 || slotted flat Ø 4 mm || slotted flat Ø 5.5 mm
Electrical Composition CodeM1 || M2 || M3 || M4 || M5 || M6 || M10 || MF1 || P1 || P2 || PF1
Device Presentationbasic element
Surge Withstand1 kV IEC 61000-4-5
Tightening Torque0.8-1.2 N.m EN 60947-1
Offer Sustainability
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP1808008EN
- Reach Regulation
- Free of Substances of Very High Concern above the threshold
- Weee
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
- Circularity Profile
- ENVEOLI1808008EN
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
Reach Free Of SvhcYes
China Rohs RegulationX
Eu Rohs DirectivePro-active compliance (Product out of EU RoHS legal scope)
Environment
- Product Certifications
- CSA || UL listed
- Ambient Air Temperature For Operation
- -40-70 °C
- Standards
- UL 508 || EN/IEC 60947-5-5 || JIS C8201-5-1 || EN/IEC 60947-5-1 || CSA C22.2 No 14 || EN/IEC 60947-5-4 || EN/IEC 60947-1 || JIS C8201-1
- Ambient Air Temperature For Storage
- -40-70 °C
- Protective Treatment
- TH
- Electromagnetic Emission
- class B IEC 55011
[Us] Rated Supply Voltage24...120 V
Resistance To Electromagnetic Fields10 V/m IEC 61000-4-3
Ip Degree Of ProtectionIP20 IEC 60529
Resistance To Electrostatic Discharge6 kV on contact (on metal parts) IEC 61000-4-2 || 8 kV in free air (in insulating parts) IEC 61000-4-2
Resistance To Fast Transients2 kV IEC 61000-4-4
