Weidmuller 1545710000 BLZ/SL KO BK BX
Weidmuller 1545710000 BLZ/SL KO BK BX
- MPN: 1545710000
- PPN: WDM-1545710000
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$0.33/ EA
Description

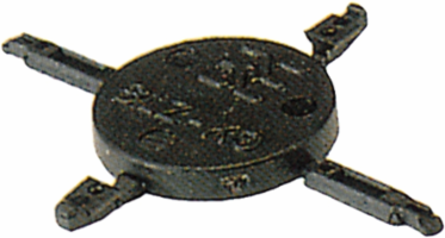

PCB plug-in connector, Accessories, Coding element, black, Number of poles: 1
Specifications
Approvals
- Approvals
- EAC
ROHSConform
Dimensions And Weights
- Net weight
- 0.8 g
Rated Data Acc. To Iec
- tested acc. to standard
- IEC 60664-1, IEC 61984
Material Data
- Insulating material
- PBT GF
- Colour chart (similar)
- RAL 9011
- Storage temperature, max.
- 55 °C
- Operating temperature, min.
- -50 °C
- Temperature range, installation, min.
- -25 °C
Colourblack
Storage temperature, min.-25 °C
Max. relative humidity during storage80 %
Operating temperature, max.100 °C
Temperature range, installation, max.100 °C
Classifications
- ETIM 6.0
- EC002943
- eClass 9.0
- 27-44-04-92
- eClass 10.0
- 27-44-04-92
ETIM 7.0EC002943
eClass 9.127-44-04-92
UNSPSC30-21-18-01
Packing
- Packaging
- Box
- VPE width
- 70 mm
VPE length38 mm
VPE height90 mm
Notes
- IPC conformity
- Conformity: The products are developed, manufactured and delivered according international recognized standards and norms and comply with the assured properties in the data sheet resp. fulfill decorative properties in accordance with IPC-A-610 "Class 2". Further claims on the products can be evaluated on request.
