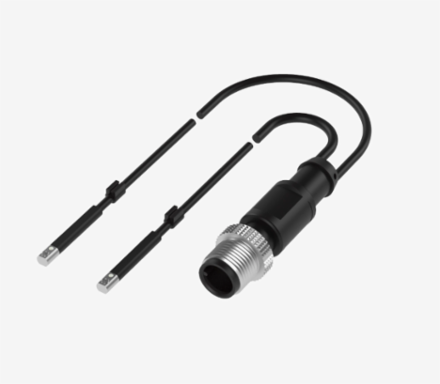

Balluff BMF00P7 BMF 423K-AAPS-C-2-SA95-P0-S4-00,3
- MPN: BMF00P7
- PPN: BAL-BMF00P7
CAD
$99.13
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
BMF 423K-AAPS-C-2-SA95-P0-S4-00,3
Documentation & Downloads
Specifications
Additional
| Operating Voltage Range | 10-30 V DC |
|---|---|
| Switching Frequency | 500 Hz |
| Rated Switch Field Strength | 2.5 kA/m |
| Load Capacitance Max at Ue | 1 F |
| Ripple Max | 15% of Ue |
| Rated Short Circuit Current | 100 A |
| Switching Output | PNP Normally Open (NO) |
| Short-circuit Protection | Yes |
| Connection | M12x1 Male, 4-pin, A-coded |
| Cable Diameter | 2.4 mm |
| Mounting Part | Screw M2 |
| Size | C-slot |
| Material Jacket | PUR |
| Material Sensing Surface | PA 12 |
| Ambient Temperature Range | -25 to 85 C |
| ESD Protection | 2 A (4 kV) |
| Vibration Resistance | 55 Hz, 1 mm amplitude, 3x30 min |
| Emission | Group 1, Class B |
| Basic Standard | IEC 60947-5-2 |
| Application | Object detection |
| Rated Operating Current | 100 mA |
|---|---|
| Assured Switching Field Strength | 2.9 kA/m |
| Voltage Drop Static Max | 1 V |
| Residual Current Max | 10 A |
| Rated Insulation Voltage | 75 V DC |
| No-load Current Max | 4 mA |
| Polarity Reversal Protected | Yes |
| Utilization Category | DC-13 |
| Cable Length | 0.30 m |
| Dimension | 24 x 2.9 x 24 mm |
| Tightening Torque | 0.07 Nm |
| Cable Jacket Material | PUR |
| Housing Material | PA 12 |
| Clamping Screw Material | Stainless Steel |
| Ingress Protection Rating | IP67 |
| Shock Resistance | 30 g, 11 ms half-sinus |
| Contamination Scale | 3 |
| Approval/Conformity | CE, UKCA, WEEE, cULus |
| MTTF (40 C) | 1879 a |
| Principle of Operation | Magnetic field sensor |
